Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BEST
-
Dimension(L*W*H):
-
as your requests
-
Weight:
-
0.5 KG
-
Working Temperature Range:
-
1 - 870 ℃
-
Core Components:
-
heating wire
-
After-sales Service Provided:
-
Overseas third-party support available
-
Tube Diameter:
-
8mm/10mm/12mm/14mm/16mm etc.
-
Application:
-
oil, water ,other liquid etc
-
Max temperature:
-
870c(1600F) 14*350mm 1500 watt water heater element
-
Packaging:
-
Plastic bag , Carton box,wooden box
-
Product Name:
-

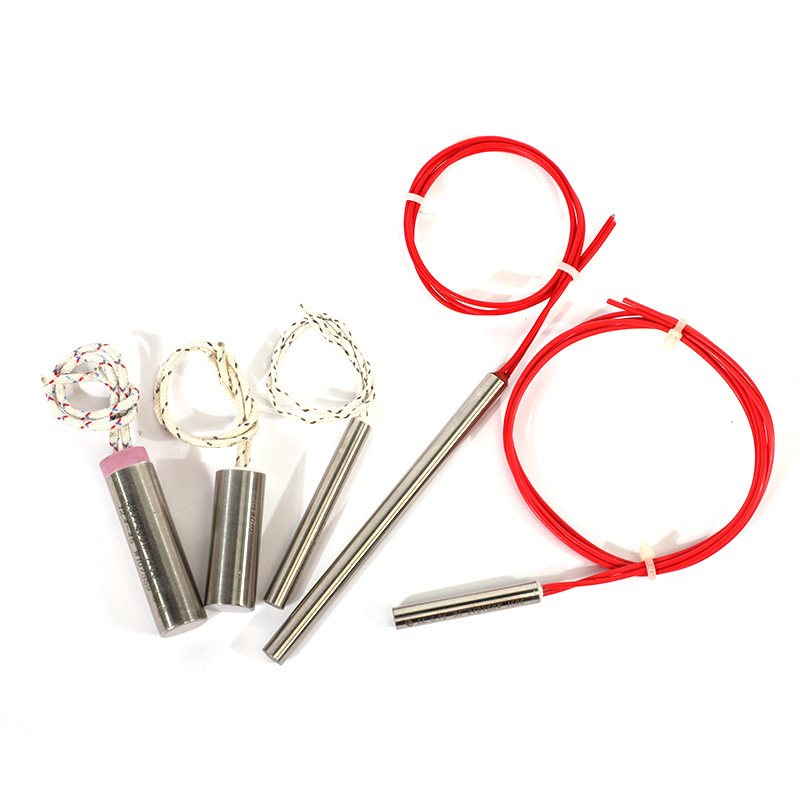

stainless electric industrial heating element pencil heater cartridge
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
380V,240V, 220V,110V,36V,24V or 12V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BEST
-
Dimension(L*W*H):
-
as your requests
-
Weight:
-
0.5 KG
-
Working Temperature Range:
-
1 - 870 ℃
-
Core Components:
-
heating wire
-
After-sales Service Provided:
-
Overseas third-party support available
-
Tube Diameter:
-
8mm/10mm/12mm/14mm/16mm etc.
-
Application:
-
oil, water ,other liquid etc
-
Max temperature:
-
870c(1600F) 14*350mm 1500 watt water heater element
-
Packaging:
-
Plastic bag , Carton box,wooden box
-
Product Name:
-
stainless electric industrial heating element pencil heater cartridge
Date sheets
| Resistance heating wire | NiCr 80/20 wire |
| Wattage Tolerance | +5%, -10% |
| Resistance tolerance | +10%, -5% |
| Length tolerance | ±1 mm |
| Diameter tolerance | ± 0.02mm |
| Standard Cold Zone | 5-10mm |
| Insulation resistance (cold) | ≥ 500 MΩ |
| Maximum leakage current (cold) | ≤ 0.5 mA |
| Thermocouple Location | type J / K / Ground wire |
Advantages
internal wiring: high temperature resistance, uniform heating, high thermal conductivity and difficult
cable fracture.
external wiring: high temperature resistance, uniform heating and high thermal conductivity.
Internal wiring : port section of the heating tube does not adopt the terminal connection mode, Making
it have high temperature resistance and strong mechanical properties.
The port part of the heating tube adopts terminal connection mode Is resistant to high temperature
and works in the heating medium which can not conduct wiring at both ends.
Function:
1. Leakage current <0.5MA; Insulation resistance> 30MΩ
2. Operating conditions: ambient temperature-20℃ ~ + 60℃, relative temperature <80%
3. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon
4. Electrical strength: cold withstand voltage AC work 1500V 50Hz lasts for 1 min without breakdown phenomenon
Wiring Method
