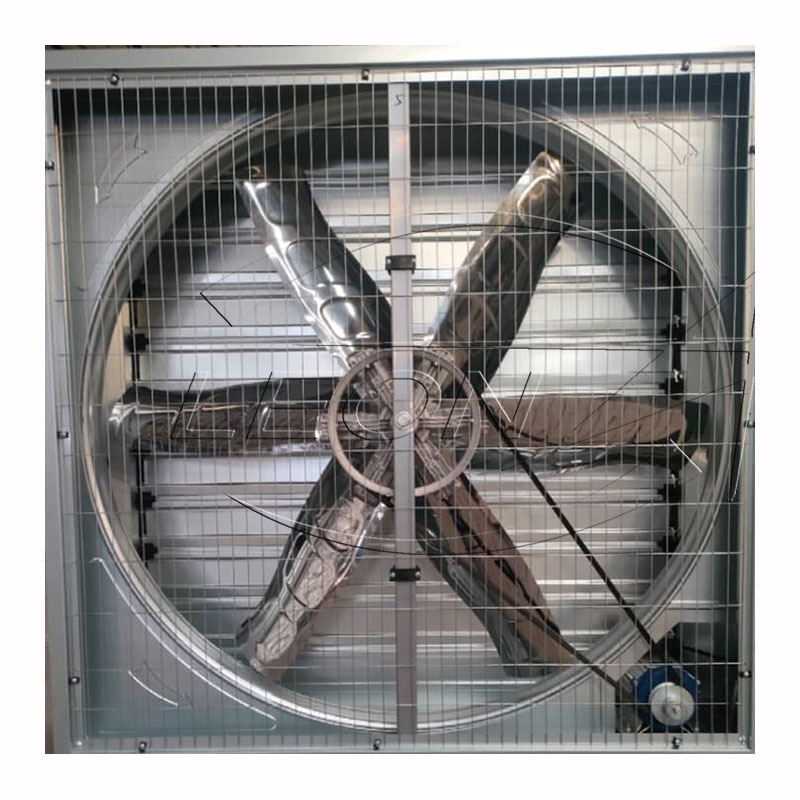

Quick Details
-
After-sales Service Provided:
-
Video technical support
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LEON
-
Model Number:
-
50'', 51'', 53''
-
Voltage:
-
220V/380V
-
Certification:
-
ce
-
Application:
-
Animal Husbandry
-
Motor:
-
OEM Motor
-
Material:
-
Galvanized Sheet
-
Function:
-
Ventilaion
-
Feature:
-
Saving Energy .strong Wind Power.convenient
-
Frame:
-
Hot galvanized steel
-
Installation:
-
Wall Mount Ventilation Fan
-
Size:
-
1380*1380*440mm
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Farms, Construction works , Energy & Mining, Other
-
Electric Current Type:
-
AC
-
Mounting:
-
Wall Fan
-
After-sales Service Provided:
-
Video technical support
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LEON
-
Model Number:
-
50'', 51'', 53''
-
Voltage:
-
220V/380V
-
Certification:
-
ce
-
Application:
-
Animal Husbandry
-
Motor:
-
OEM Motor
-
Material:
-
Galvanized Sheet
-
Function:
-
Ventilaion
-
Feature:
-
Saving Energy .strong Wind Power.convenient
-
Frame:
-
Hot galvanized steel
-
Installation:
-
Wall Mount Ventilation Fan
-
Size:
-
1380*1380*440mm
Specification
|
Model
|
Outer size
|
Blade Diameter
|
Motor rotational speed(rpm)
|
Air volume (m3/h)(0Pa)
|
Noise decibels
|
Motor
|
|
EM53
|
1430*1430mm
|
1350mm
|
1400
|
47240
|
≤65
|
1.5kw/2HP
|
|
EM51
|
1380*1380mm
|
1300mm
|
1400
|
45340
|
≤65
|
1.3kw/1.7HP
|
|
EM50
|
1380*1380mm
|
1270mm
|
1400
|
42900
|
≤65
|
1.1kw/1.5HP
|
|
EM36
|
1000*1000mm
|
915mm
|
1400
|
24500
|
≤65
|
1.1kw/1.5HP
|
Product Details
Blade
Fan blades was made by 430#/304#/NSDCC material,after dynamic balance testing,with large air volume.
Shutter
Use 275g/sqm hot galvanized iron for shutter and frame. Use magnet on the shutter connecter and after proportioning the weight, the louver is balanced. Opening and closing shutters are smooth and close in good condition.plastic parts, not loose and fall off, longer service life.
Frame
1.0mm thickness 275g/sqm hot galvanized iron for frame. Use the mold to make frame, which is processed by the bending machine, so that the frame size is more precise, the error is small, and the assembly is convenient.
Round Frame
Only use 1.0mm 275g/sqm
hot-dip galvanized sheet produced by Shougang.
Plastic covered in advance, no
scratch，protect the covered zinc,anti-corrosion ability, no scratches,longer service time
hot-dip galvanized sheet produced by Shougang.
Plastic covered in advance, no
scratch，protect the covered zinc,anti-corrosion ability, no scratches,longer service time
Pole&Protect nat
The protective net is welded by 2.5mm
hot-dip galvanized wire, with stronger anti-
corrosion ability and longer service life.
Use the famous brand Tianjin Youfa Heating Galvanized Pipe, 2.5mm.
The center hole of the column is formed by
laser cutting/mold at one time to ensure
the concentricity of the center hole. Ensure
that the motor wheel and the aluminum wheel are on the same horizontal plane, so that the fan runs more stably and prolongs the service life of the belt and bearing.
hot-dip galvanized wire, with stronger anti-
corrosion ability and longer service life.
Use the famous brand Tianjin Youfa Heating Galvanized Pipe, 2.5mm.
The center hole of the column is formed by
laser cutting/mold at one time to ensure
the concentricity of the center hole. Ensure
that the motor wheel and the aluminum wheel are on the same horizontal plane, so that the fan runs more stably and prolongs the service life of the belt and bearing.
Belt
Internationally universal A type Japan MITSUBOSHI or England PIX brand
belt, fast heat dissipation and long service life
belt, fast heat dissipation and long service life
Screw
Standard parts coated with DACROMET technology to prevent rust and have a longer service life
Motor
OEM(with CE, ISO9001 Certification)/JINDA/SIEMENS
Production Workshop
Packing And Loading
WEIFANG LEON Products have been exported to more than 30 countries in Asia, Europe, America, Australia, etc.Global service, Annual sales over $ 3 million
