- Product Details
- {{item.text}}
Quick Details
-
Power (kW):
-
7.5
-
Range of Spindle Speed(r.p.m):
-
3000 - 4000 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
wantong
-
Voltage:
-
220/380v
-
Dimension(L*W*H):
-
upon model
-
Weight (KG):
-
1800 KG
-
Marketing Type:
-
Hot Product
-
Product name:
-
ginger nutmeg spice powder grinding crushing grinder machine
-
Usage:
-
ginger nutmeg spice powder grinding crushing grinder machine
-
Function:
-
ginger nutmeg spice powder grinding crushing grinder machine
-
cooling method:
-
water cooling
-
Key words:
-
fine ginger nutmeg spice powder grinding crushing grinder machine
-
Power(W):
-
3~15KW
-
Weight:
-
ACCORDING TO MODEL
-
After Warranty Service:
-
Field maintenance and repair service
Quick Details
-
Output (kg/h):
-
20 - 1000 kg/h
-
Feeding Size (mm):
-
1 - 20 mm
-
Output Size (mesh):
-
80 - 800 mesh
-
Power (kW):
-
7.5
-
Range of Spindle Speed(r.p.m):
-
3000 - 4000 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
wantong
-
Voltage:
-
220/380v
-
Dimension(L*W*H):
-
upon model
-
Weight (KG):
-
1800 KG
-
Marketing Type:
-
Hot Product
-
Product name:
-
ginger nutmeg spice powder grinding crushing grinder machine
-
Usage:
-
ginger nutmeg spice powder grinding crushing grinder machine
-
Function:
-
ginger nutmeg spice powder grinding crushing grinder machine
-
cooling method:
-
water cooling
-
Key words:
-
fine ginger nutmeg spice powder grinding crushing grinder machine
-
Power(W):
-
3~15KW
-
Weight:
-
ACCORDING TO MODEL
-
After Warranty Service:
-
Field maintenance and repair service
ZFJ automatic ginger nutmeg spice powder grinding crushing grinder crusher pulverizer machine
Product Description
Working Principle
Material enters the mill chamber via screw conveyor where it is sheared and milled by fast-rotating blades. The powder passes the guide ring and enters the classifier chamber. As the classification wheel is in rotation, both air force and centrifugal force act on the powder. As the particles whose diameters are greater than the critical diameter (diameter of the classification particles) have a greater mass,they are thrown back into the mill chamber to be ground again,while the particles whose diameters are smaller than the critical diameter enter cyclone separator and dust-collecting box
Technical data
|
Model
|
ZFJ-20
|
ZFJ -30
|
ZFJ -60
|
ZFJ -100
|
|||
|
Production Capacity (kg)
|
100-200
|
200~400
|
500~800
|
700~1400
|
|||
|
Hammer mill motor(kw)
|
7.5
|
11
|
22
|
37
|
|||
|
Crushing fineness (mesh)
|
80-600
|
|
|
|
|||
|
ACM Crush Motor power (kw)
|
22
|
30
|
37
|
45
|
|||
|
Discharge motor(kw)
|
0.75
|
0.75
|
1.5
|
1.5
|
|||
|
Input motor(kw)
|
0.55
|
0.75
|
0.75
|
1.5
|
|||
|
ACM motor(kw)
|
1.5
|
4
|
7.5
|
11
|
|||
|
Fan motor(kw)
|
22
|
37
|
55
|
75
|
|||
|
Spindle speed (rpm)
|
4200
|
3800
|
3200
|
2000
|
|||
|
Weight (kg)
|
1200
|
1800
|
2500
|
4000
|
|||
|
Overall dimension
(L*W*H)(mm)
|
8150x1250x2900
|
9500x1300x3650
|
10500x2300x4500
|
12500x2800x5000
|
|||

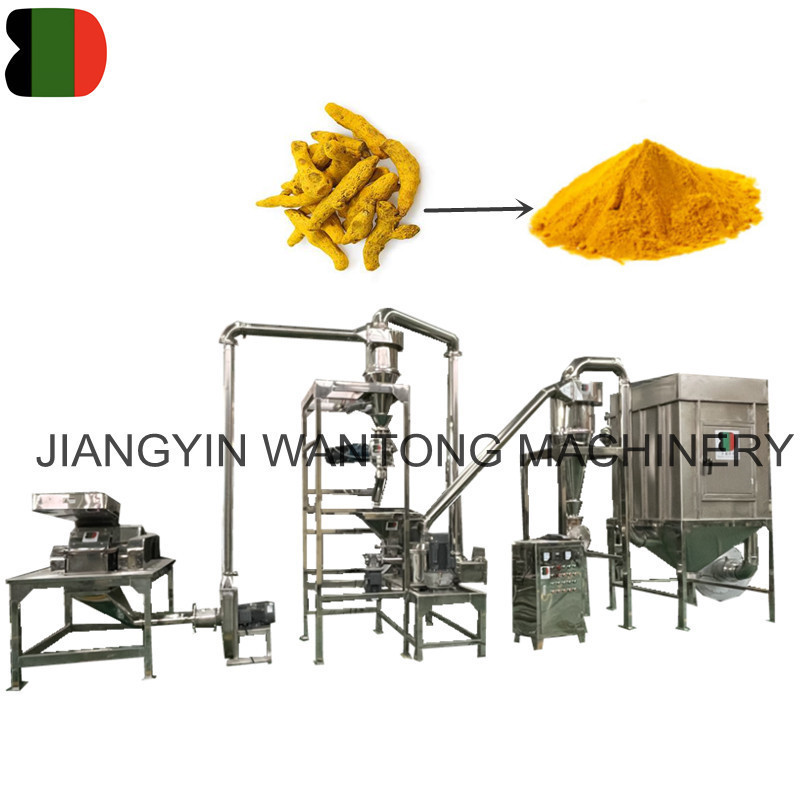

Machine Pics
