Quick Details
-
Place of Origin:
-
China, Zhejiang, China
-
Brand Name:
-
yamarmotor, lichuang
-
Dimension(L*W*H):
-
475*370*330
-
Weight:
-
15
-
Rated power/speed:
-
3600rpm
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
Motor Electric Starter
-
Model Number:
-
168F
-
Certification:
-
CE
-
MOQ:
-
5
-
Engine Model:
-
GX160
-
Rated Power:
-
1.5hp~13.5hp
-
Color:
-
Red
Quick Details
-
Displacement:
-
163CC
-
Emission Standard:
-
Euro 1
-
Power:
-
5.5hp, 6.5hp, 7.5hp
-
Place of Origin:
-
China, Zhejiang, China
-
Brand Name:
-
yamarmotor, lichuang
-
Dimension(L*W*H):
-
475*370*330
-
Weight:
-
15
-
Rated power/speed:
-
3600rpm
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
Motor Electric Starter
-
Model Number:
-
168F
-
Certification:
-
CE
-
MOQ:
-
5
-
Engine Model:
-
GX160
-
Rated Power:
-
1.5hp~13.5hp
-
Color:
-
Red
Engine Details:

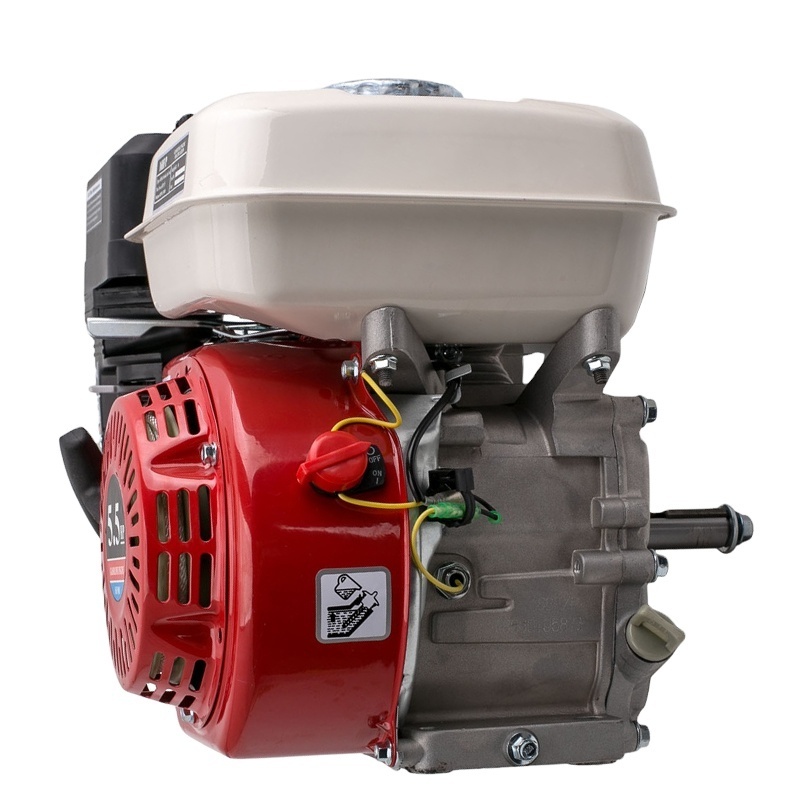

Direct replacement for Honda compatible the 4 stroke GX160 5.5hp engine
Compression Ratio : 8.5:1
Engine Type : 168F / Air Cooled 4 Stroke OHV Single Cylinder
Maximum Output : 5.5 HP / 4.1 KW
Rated Output : 4.0 HP / 3.0 KW
Bore & Stroke : 70x55mm
Displacement : 168CC
Starting System : Pullstart
Fuel Capacity : 3.6 Litres
Engine Oil Capacity : 0.6 Litre
Dimensions : 330H x 360L x 305W mm
Gross Weight : 16 KG
Air Cleaner : Semi Dry
Diameter of drive shaft : Metric：20 mm / 0.79 inches，NOT 0.75 INCH, NOT 3/4''
Imperial 3/4'' / keyway 5mm
Thread diameter of crankshaft / driveshaft: 7mm
Engine rotation: Anti clockwise
Specifics:
Overall Length: 360 mm / 14.17 inches
Overall Width: 305 mm / 12.01 inches
Overall Height: 330 mm / 12.99 inches
Diameter of Drive Shaft: 20 mm / 0.79 inches
Length of Drive Shaft: 250 mm / 9.84 inches
Distance Between Bottom Fixing Holes (Clutch Side, Centre of Eye to Centre of Eye): 165 mm / 6.5 inches
Distance Between Bottom Fixing Holes (Pullstart Side, Centre of Eye to Centre of Eye): 165 mm / 6.5 inches
Distance Between Bottom Fixing Holes (Pullstart to Clutch across, Centre of Eye to Centre of Eye): 77.06 mm / 3.03 inches
Features:
* Recoil pullstart with manual choke and fuel cut off
* Durable, reliable and versatile capable of multiple domestic and commercial applications
Notes:
* please measure your shaft with digital callipers before ordering to make sure you get the right model
* All engines are brand new and packed without engine oil.
* Engine oil should be added as per the specification table.
* When first adding petrol / gasolene for initial start up, use the carburettor drain plug to bleed the carburettor for easy
starting.
Compression Ratio : 8.5:1
Engine Type : 168F / Air Cooled 4 Stroke OHV Single Cylinder
Maximum Output : 5.5 HP / 4.1 KW
Rated Output : 4.0 HP / 3.0 KW
Bore & Stroke : 70x55mm
Displacement : 168CC
Starting System : Pullstart
Fuel Capacity : 3.6 Litres
Engine Oil Capacity : 0.6 Litre
Dimensions : 330H x 360L x 305W mm
Gross Weight : 16 KG
Air Cleaner : Semi Dry
Diameter of drive shaft : Metric：20 mm / 0.79 inches，NOT 0.75 INCH, NOT 3/4''
Imperial 3/4'' / keyway 5mm
Thread diameter of crankshaft / driveshaft: 7mm
Engine rotation: Anti clockwise
Specifics:
Overall Length: 360 mm / 14.17 inches
Overall Width: 305 mm / 12.01 inches
Overall Height: 330 mm / 12.99 inches
Diameter of Drive Shaft: 20 mm / 0.79 inches
Length of Drive Shaft: 250 mm / 9.84 inches
Distance Between Bottom Fixing Holes (Clutch Side, Centre of Eye to Centre of Eye): 165 mm / 6.5 inches
Distance Between Bottom Fixing Holes (Pullstart Side, Centre of Eye to Centre of Eye): 165 mm / 6.5 inches
Distance Between Bottom Fixing Holes (Pullstart to Clutch across, Centre of Eye to Centre of Eye): 77.06 mm / 3.03 inches
Features:
* Recoil pullstart with manual choke and fuel cut off
* Durable, reliable and versatile capable of multiple domestic and commercial applications
Notes:
* please measure your shaft with digital callipers before ordering to make sure you get the right model
* All engines are brand new and packed without engine oil.
* Engine oil should be added as per the specification table.
* When first adding petrol / gasolene for initial start up, use the carburettor drain plug to bleed the carburettor for easy
starting.
