Quick Details
-
Weight:
-
1440 KG
Quick Details
-
Brand Name:
-
Weitai/ODM
-
Place of Origin:
-
Shandong, China
-
Marketing Type:
-
New Product 2023
-
Weight:
-
1440 KG
Product Overview

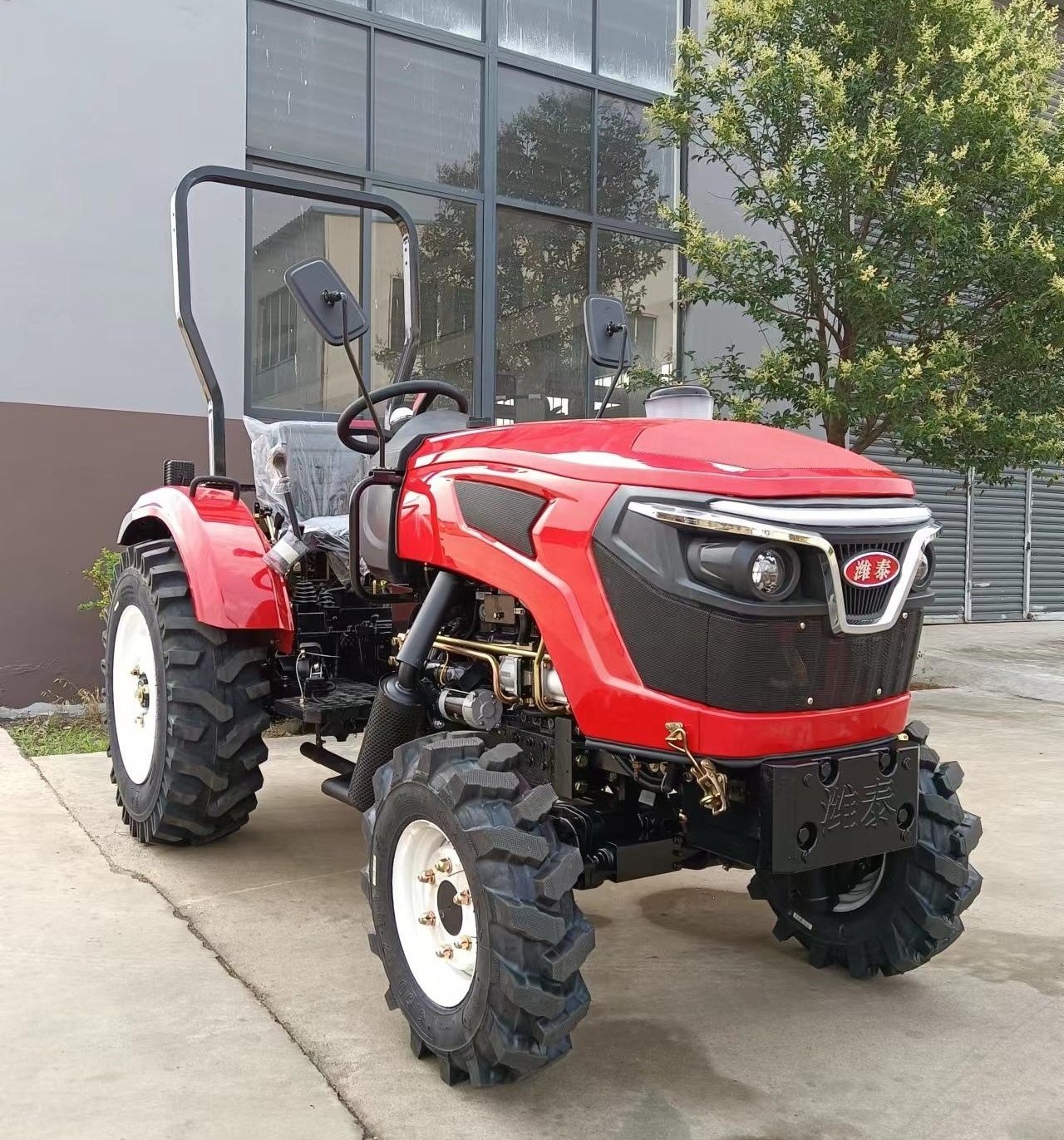

50HP Wheeled Tractor TT504-S
4WD, YUNNEI Ⅱ, 8F+2R Gear box, ROPS, One (1) pair of hydraulic multi-way valves, PTO 6 spline 35mm, speed 760 rpm, Tyres 6.50-12/13.6-16, Balance weight F25/R40kg
PRODUCT SPECIFICATIONS
|
TT504-S
|
|
|
||
|
Diesel Engine
|
|
|
||
|
Type
|
/
|
4 cylinder, second emission standard (mechanical) Yunnei engine
|
||
|
Rated Power/Rotating Speed
|
kW/rpm
|
36.8/2400
|
||
|
Transmission
|
|
|
||
|
Clutch
|
/
|
Dry-friction, Single Stage
|
||
|
Gearshift
|
/
|
8F+2R
|
||
|
PTO speed
|
r/min
|
760
|
||
|
Brake
|
/
|
dry drum brake
|
||
|
Hydraulic
|
|
|
||
|
Lifting Force (610mm)
|
kN
|
≥8.9 (907.8kg)
|
||
|
Three-point linkage
|
/
|
Category 1
|
||
|
Number of hydraulic multi-way valves
|
pair
|
1
|
||
|
Tractor dimensions
|
|
|
||
|
Drive type
|
/
|
4×4
|
||
|
Length×Width×Height
|
mm
|
2800×1345×2085
|
||
|
Wheelbase
|
mm
|
1535
|
||
|
Min. Ground Clearance
|
mm
|
180
|
||
|
Minimum use quality (with ROPS)
|
kg
|
1440
|
||
|
Tread (F/R)
|
mm
|
920/960
|
||
|
Tyre Size (F/R)
|
/
|
6.50-12/13.6-20
|
||
|
Ballast weight (F/R)
|
kg
|
25/40
|
||
|
ROPS
|
/
|
Yes
|
||
|
Color
|
/
|
Red, Blue, Green, Orange, Black, etc.
|
||
|
Options
|
|
|
||
|
Other Tyres
|
/
|
6.00-12/9.50-16
|
||
|
Air Brake for trailer
|
/
|
Available
|
||
|
Swinging Draw Bar
|
/
|
Available
|
||
|
Sun Canopy
|
/
|
Available
|
||
|
Hydraulic Multi-Way Valve
|
pair(s)
|
2
|
||
|
Clutch and Gearshift
|
/
|
Dual Stage, 8F+8R
|
||
|
PTO speed
|
/
|
540/720
|
||
|
2WD
|
/
|
Front tyres 6.00-14
|
||
|
Instrument
|
/
|
Fuel Gauge, Tachometer, Hour Meter.
|
||
Please contact customer service for detailed configuration and price
