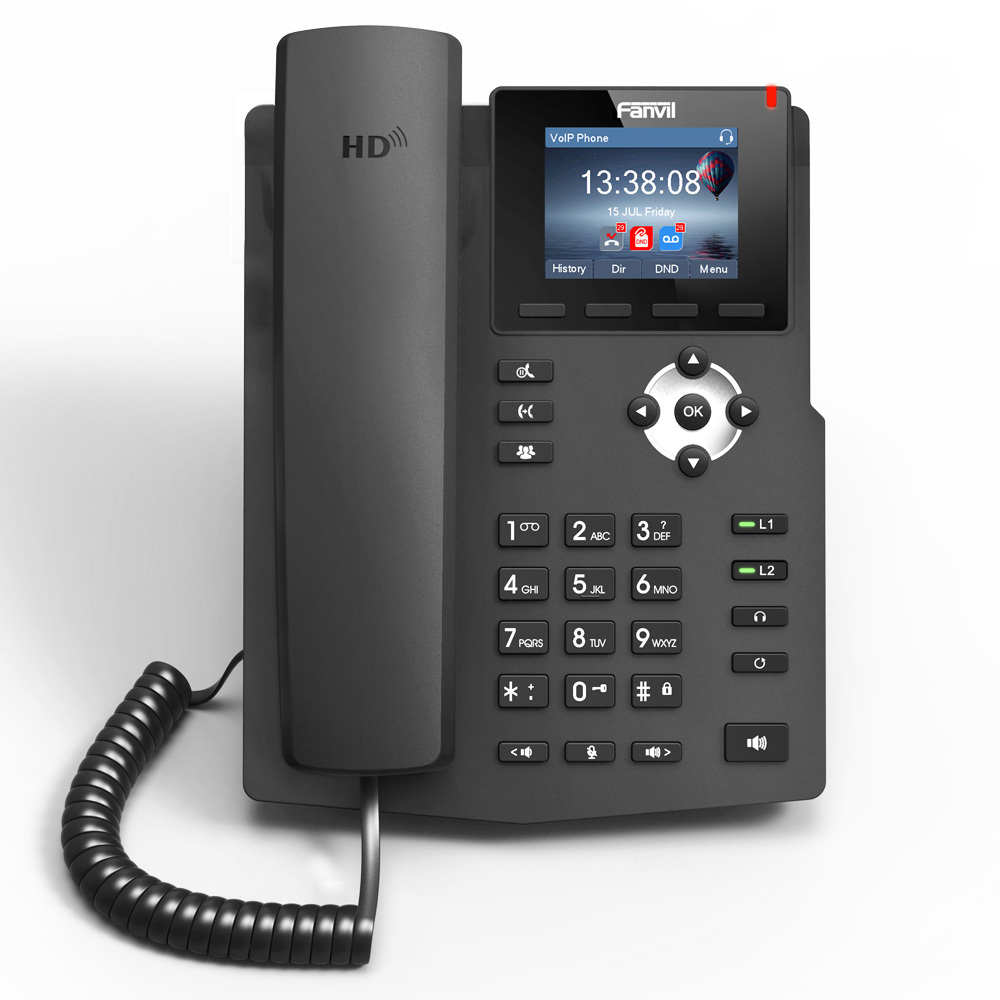

Fanvil X3G 2.8 Inch Wireless Voip Smart Sip Voip IP Phone Supported Poe

Genetic

• HD Voice
• 2 sip lines
• POE Enabled(X3SP/X3G)
• Handset(HS) / Hands-free(HF) / Headphone(HP) mode (EHS support for Plantronics headsets)
• Desktop / Wall-mount installation
• Economical and Environmental friendly package
• Industrial Standard Certifications: CE/FCC

Call Features

• Call out / answer / reject
• Mute / unmute (microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (depending on server)
• Redial
• Do-Not-Disturb (per line / per phone)
• Auto-Answering (per line)
• Voice Message (on server)
• Local 3-way Conference
• Hot Line

Phone Features

• Phone Accessibility Control by User PIN
• Intelligent Phonebook (up to 500 entries total)
• Remote Phonebook (XML/LDAP)
• Intelligent Contact Number Matching / Filtering
• Call log (300 entries total, in/out/missed)
• Voice Message Waiting Indication (VMWI)
• Network Time Synchronization
• Multi-language support in screen and web UI: English, Chinese(Traditional/Simplified), Japanese, Russian, Italian, Turkish, Germany, Dutch, Spanish, Hebrew, Polish, French etc.

Audio.

• HD Voice Microphone/Speaker (Handset/Hands-free, 0~7KHz Frequency Response)
• Wideband ADC/DAC 16KHz Sampling
• Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
• Wideband CODEC: G.722
• Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical: 10/100Mbps(X3S/X3SP), 10/100/1000Mbps(X3G)  Ethernet, dual bridged port for PC bypass
• IP Configuration: Static / DHC
• Network Access Control: 802.1x
• VPN: L2TP (Basic Unencrypted) / OpenVPN
• VLAN
• QoS

protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• PPPoE
• 802.1x
• L2TP (Basic Unencrypted)
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR069

Physical specifications

• LCD x1: 2.4/2.8 inch (320x240) color-screen LCD
• Keypad: 32 keys
• HD Hands-free Speaker (0 ~ 7KHz) x1
• HD Hands-free Microphone (0 ~ 7KHz) x1
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
• RJ9 Phone Jacket x2: Handset x1, Headphone x1
• RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Class 1 Enabled), PC x1 (Bridged to Network)
• Main Chipset: Broadcom
• DC Power Input: 5V/600mA
• Working Temperature: 0 ~ 40 ℃
• Working Humidity: 10 ~ 65%
• Dual-Functional Back Rack x1: Desktop Stand / Wall-mount
• Color: Black
