Number Seamless Video Wall Panel Ticker P2 P2.5 Poster Wireless Board Vehicle Led Display For Bus Parking

Number Seamless Video Wall Panel Ticker P2 P2.5 Poster Wireless Board Vehicle Led Display For Bus Parking

FOB Reference Price: Get Latest Price

≥1 Pieces

US $349.2

≥20 Pieces

US $324.76

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

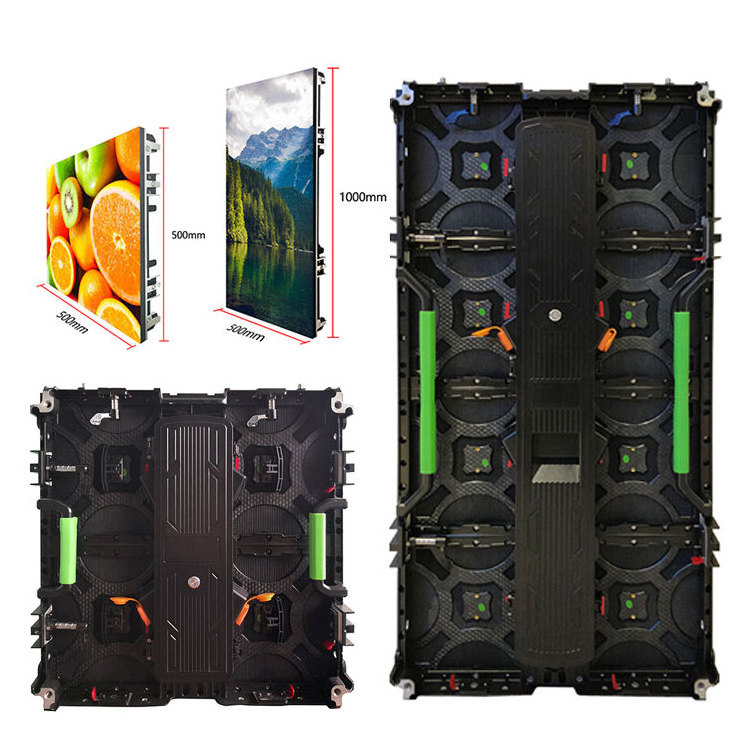

Panel Size:: (W)500*500mm(H)

Place of Origin:: shenzhen,China

Model Number:: M297

Pixel Pitch:: 2.97mm, 2.97mm

Pixel pitch:: 2.97mm

Pixel Density:: 112896/ M2

Pixel configuration:: 1R1G1B

LED specification:: SMD2121

Pixel resolution:: (W)84*84(H)

Average power:: 120W

Panel current:: 6.5A

Panel weight:: 7KG

Cabinet material:: Die-cast aluminum

Life span:: ≥100,000 hours

Quick Details

Application:: OUTDOOR

Brand Name:: RAYBO

Color:: FULL COLOR

Panel Size:: (W)500*500mm(H)

Place of Origin:: shenzhen,China

Model Number:: M297

Pixel Pitch:: 2.97mm, 2.97mm

Pixel pitch:: 2.97mm

Pixel Density:: 112896/ M2

Pixel configuration:: 1R1G1B

LED specification:: SMD2121

Pixel resolution:: (W)84*84(H)

Average power:: 120W

Panel current:: 6.5A

Panel weight:: 7KG

Cabinet material:: Die-cast aluminum

Life span:: ≥100,000 hours

Project Cases

Outdoor P4.81

Pixel Pitch: 4.81mm

LEDs package: SMD2121
Brightness: ≥5500cd/㎡
Refresh Rate: ≥3840HZ
Pixel Matrix Per Sq.m: 43264dots
Module Dimension: 250*250mm
Cabinet Dimension: 500*500mm

Cabinet Weight: 7.5KG
Location: USA

Outdoor P3.91

Pixel Pitch: 3.91mm

LEDs package: SMD2121
Brightness: ≥5500cd/㎡
Refresh Rate: ≥3840HZ
Pixel Matrix Per Sq.m: 65536dots
Module Dimension: 250*250mm
Cabinet Dimension: 500*1000mm

Cabinet Weight: 13KG
Location: Australia

Outdoor P2.97

Pixel Pitch: 2.97mm

LEDs package: SMD1515
Brightness: ≥5500cd/㎡
Refresh Rate: ≥3840HZ
Pixel Matrix Per Sq.m: 112896dots
Module Dimension: 250*250mm
Cabinet Dimension: 500*1000mm

Cabinet Weight: 13KG
Location: China

Outdoor P3.91

Pixel Pitch: 3.91mm

LEDs package: SMD2121

Brightness: ≥5500cd/㎡

Refresh Rate: ≥3840HZ

Pixel Matrix Per Sq.m: 65536dots

Module Dimension: 250*250mm

Cabinet Dimension: 500*500mm

Cabinet Weight: 7KG

Location: USA

Outdoor P2.6

Pixel Pitch: 2.604mm

LEDs package: SMD1515
Brightness: ≥5500cd/㎡
Refresh Rate: ≥3840HZ
Pixel Matrix Per Sq.m: 147456dots
Module Dimension: 250*250mm
Cabinet Dimension: 500*500mm

Cabinet Weight: 7KG
Location: UK

Outdoor P3.91

Pixel Pitch: 3.91mm

LEDs package: SMD2121
Brightness: ≥5500cd/㎡
Refresh Rate: ≥3840HZ
Pixel Matrix Per Sq.m: 65536dots
Module Dimension: 250*250mm
Cabinet Dimension: 500*500mm

Cabinet Weight: 7KG
Location: USA

Recommend Products

Products Description

Outdoor LED Screen Rental

Our company strives to give our customers the most options for LED screen rental solutions. Whether you are hosting a large conference, a huge music festival, or a state fair we have the screen for you. With both indoor and outdoor led video screen rentals we are not limited to any venue.

Model	P2.604	P2.97	P3.91	P4.81
Pixel Pitch(mm)	2.604	2.97	3.91	4.81
Pixel Matrix Per Sq.m	147,456dots	112,896dots	65,536dots	43,264dots
LEDs package	SMD1515	SMD1515	SMD2121	SMD2121
Brightness (cd/㎡)	≥5,500cd/㎡	≥5,500cd/㎡	≥5,500cd/㎡	≥5,500cd/㎡
Scan	1/32	1/28	1/16	1/13
Module Dimension	250250mm /0.820.82ft	250250mm /0.820.82ft	250250mm /0.820.82ft	250250mm /0.820.82ft
Cabinet Dimension	50050077mm /500100077mm	50050077mm /500100077mm	50050077mm /500100077mm	50050077mm /500100077mm
Cabinet Resolution	192*192dots	168*168dots	128*128dots	104*104dots
Cabinet Material	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum
Cabinet Weight	7KG/13KG	7KG/13KG	7KG/13KG	7KG/13KG
Max. Power Consumption	800W	800W	800W	800W
Ave. Power Consumption	200-300W	200-300W	200-300W	200-300W
Service Access	Rear	Rear	Rear	Rear
Refresh Rate (HZ)	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ
Grey Scale (bit)	16	16	16	16
Viewing Angle (H/V)	160°/160°	160°/160°	160°/160°	160°/160°
Best Viewing Distance	2.6-26meters	2.97-29.7meters	3.91-39.1meters	4.81-48.1meters
IP Rate	IP65	IP65	IP65	IP65
Input Voltage (AC)	110V-240V,50/60HZ	110V-240V,50/60HZ	110V-240V, 50/60HZ	110V-240V,50/60HZ
