Plastic Adjustable Screw Jack Tile Pedestals for Terrace Roof Floor XF-T201C 18-32 mm

Plastic Adjustable Screw Jack Tile Pedestals for Terrace Roof Floor XF-T201C 18-32 mm

FOB Reference Price: Get Latest Price

≥120 Sets

US $0.92

≥600 Sets

US $0.78

≥3000 Sets

US $0.66

≥10200 Sets

US $0.56

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Design Style:: Smart Height Raising Adjusting

Place of Origin:: Zhejiang, China

Brand Name:: XINFENG

Model Number:: XF-T201C

Item:: Plastic Adjustable Screwjack Tile Pedestals for Terrace Rooffloor

Type:: Flooring Accessaries

Material:: Polypropylene

Color:: Black

Height Range:: 18-32mm

Dimension:: Base Diameter 160mm

Loading Capacity:: 1000KG/m2

Function:: Floor height raising/drainage/ventilate

Performance:: Raise Floor Tile Plastic Pedestal

Certificates:: ISO9001, ISO14001, CE, REACH, RoHS

Quick Details

After-sale Service:: Online technical support, Onsite Inspection, Free spare parts, Return and Replacement, Plastic Support Pedestals OEM ODM Service

Project Solution Capability:: graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others, Plastic Screwjack Tile Pedestals for Terrace Roof

Application:: Paving Tiles/Stone/Granite

Design Style:: Smart Height Raising Adjusting

Place of Origin:: Zhejiang, China

Brand Name:: XINFENG

Model Number:: XF-T201C

Item:: Plastic Adjustable Screwjack Tile Pedestals for Terrace Rooffloor

Type:: Flooring Accessaries

Material:: Polypropylene

Color:: Black

Height Range:: 18-32mm

Dimension:: Base Diameter 160mm

Loading Capacity:: 1000KG/m2

Function:: Floor height raising/drainage/ventilate

Performance:: Raise Floor Tile Plastic Pedestal

Certificates:: ISO9001, ISO14001, CE, REACH, RoHS

Products Description

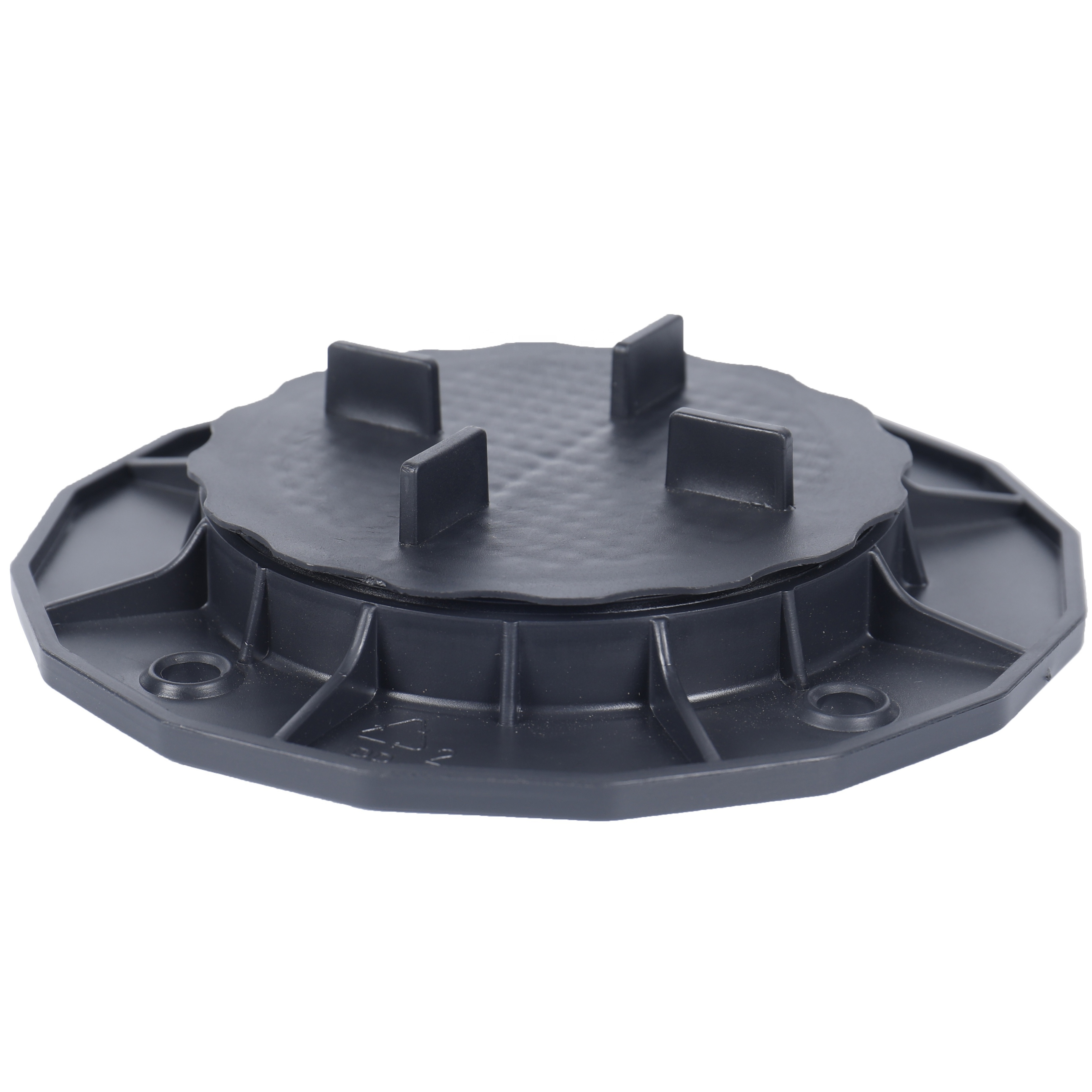

Plastic Adjustable Screw jack Tile Pedestals for Terrace Roof floor XF-T201C 18-32 mm

Xinfeng adjustable pedestals offer a wide range of solutions for your leveling and elevation needs, such as to create an elevated platform or to compensate unevenness of the ground.

These pedestals are made of enhanced polypropylene and can hold up to 800 kg of weight.
Come with different head components suitable for traditional joists, tiles and our unique click system.

General Information
Product Name	Plastic Adjustable Screw jack Tile Pedestals for Terrace Roof floor XF-T201C 18-32 mm
Material	Polypropylene
Color	Black
Size	Base diameter: 160mm
Height Range	18-230mm with different items.
Loading Capacity	500kg/set (1000kg/m2)
Applicable Temperature	-20℃~60℃ (-4℉~140℉)
Warranty	10 years
Certificates	ISO9001, ISO14001, BSCI, CE, REACH, SGS
Function	Height and Slope Adjustable; Drainage/Ventilate/ Heat Insulation Convenience
Application	Roof, Balconies, Terraces, Fountain, Pathways, Walkways, Illuminated Floor, Temporary Floor.etc.
Sample	Free; Parcel freight by customer
Lead Time	Sample 3 days; Normal orders 15-25 days

Plastic Adjustable Screw jack Tile Pedestals for Terrace Roof floor XF-T201C 18-32 mm

Products for option:

- B series are ideal for traditional decking installation with joists.
- D and C series will make installation and leveling of tiles a easy work.
- E series are designed to achieve fast and toolless installation with our special designed aluminum joists.
[Please don't hesitate to ask us for recommendation of the most suitable products]

Plastic Adjustable Screw jack Tile Pedestals for Terrace Roof floor XF-T201C 18-32 mm

For each series, we have different height range for option.

Here are the images of each item.

Please contact with us for accurate price and more product supply.

XF-T201B	XF-T202B	XF-T204B	XF-T205B
18-32mm	35-70mm	66-145mm	140-220mm
120 pcs/ Carton	80 pcs/ Carton	48 pcs/ Carton	42 pcs/ Carton

XF-T201C	XF-T202C	XF-T204C	XF-T205C
18-32mm	35-70mm	66-145mm	140-220mm
120 pcs/ Carton	90 pcs/ Carton	72 pcs/ Carton	42 pcs/ Carton

XF-T201D	XF-T202D	XF-T204D	XF-T205D
30-45mm	45-80mm	76-155mm	150-230mm
90 pcs/ Carton	72 pcs/ Carton	54 pcs/ Carton	42 pcs/ Carton

Packing and Shipping

Plastic Adjustable Screw jack Tile Pedestals for Terrace Roof floor XF-T201C 18-32 mm

1. For Small Order Pedestals less than 200 pcs, we suggest Parcel by Air, carton packing only;

2. For Big order Pedestals, we can pack according your needs.
3. Sea Freight: Shanghai Port
4. Incoterm: EXW, FOB, FCA, CIF, CFR, or DDU
5. Lead Time: 15-25 days after confirm the order.
6. Shipping Date: usually 30 days.

Installation Instructions

Plastic Adjustable Screw jack Tile Pedestals for Terrace Roof floor XF-T201C 18-32 mm

1. Clean the ground and lay out the pedestals according to your design.

2. Pedestals can be fixed to the ground with glue, concrete or expansion-screw.
3. Lay down the joists/tiles, adjust the pedestals until all the joists/tiles on an even level.
4. To adjust height, rotate the top cap of the pedestals.

For WPC/Metal Joists	11 pcs/ square meter
For Tiles/Pavers
600*600mm (24")	3 pcs/ square meter
500*500mm (20")	4 pcs/ square meter
400*400mm (16")	7 pcs/ suqare meter
300*300mm (12")	11 pcs/ square meter

Project Showcases

Plastic Adjustable Screw jack Tile Pedestals for Terrace Roof floor XF-T201C 18-32 mm

Plastic Pedestals are the ideal choice for supporting flooring, decking boards, joists, beams, bearer, tiles, slabs, grates,
granite tile, marbles, precast concrete paver or any other pavement flooring. Such as balcony, patio, terrace, swimming pool
surrounds, roof, garden, fountain, park, square, plaza, outdoor walkways, pathways, pedestrians, platforms, illuminated floors,
temporary floors, podium, landscapes, verandas, etc.
[Please don't hesitate to ask us for recommendation of the most suitable products]
