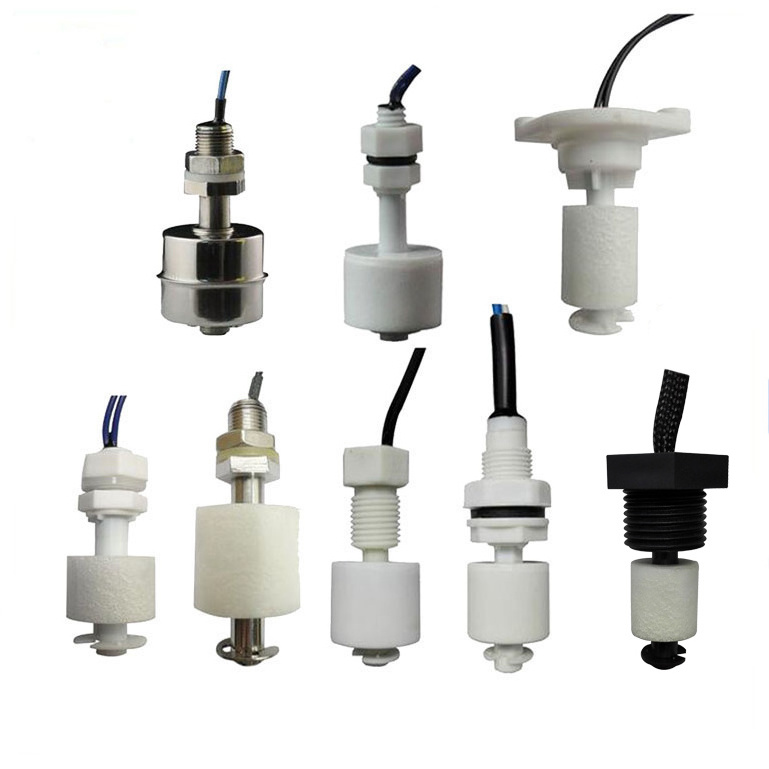

Two Wire Plastic Ball Magnetic PP Liquid Water Level Sensor Horizontal Float Switch
Two Wire Plastic Ball Magnetic PP Liquid Water Level Sensor Horizontal Float Switch
Two Wire Plastic Ball Magnetic PP Liquid Water Level Sensor Horizontal Float Switch
Two Wire Plastic Ball Magnetic PP Liquid Water Level Sensor Horizontal Float Switch
Two Wire Plastic Ball Magnetic PP Liquid Water Level Sensor Horizontal Float Switch
Two Wire Plastic Ball Magnetic PP Liquid Water Level Sensor Horizontal Float Switch
Two Wire Plastic Ball Magnetic PP Liquid Water Level Sensor Horizontal Float Switch
Two Wire Plastic Ball Magnetic PP Liquid Water Level Sensor Horizontal Float Switch

Two Wire Plastic Ball Magnetic PP Liquid Water Level Sensor Horizontal Float Switch

FOB Reference Price: Get Latest Price
≥200 Pieces
US $1
≥1000 Pieces
US $0.9
≥10000 Pieces
US $0.8
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
FUEN
Model Number:
FDVIWP16
Product name:
Horizontal Float Switch
Material:
PP /SS
Fit for:
Electrical appliances ,hot water mattress,etc
Working temperature:
Normally : 80-85° , High : 120°
Rated current:
0.5A/1.5A
Max Voltage:
110VDC/220VDC
Min Voltage:
220VDC/350VDC
Max Contact Rating:
10W/50W
Cable length:
350mm or customization
Output:
Signal

Quick Details

Grade:
Industrial
Warranty:
1 year
Place of Origin:
Guangdong, China
Brand Name:
FUEN
Model Number:
FDVIWP16
Product name:
Horizontal Float Switch
Material:
PP /SS
Fit for:
Electrical appliances ,hot water mattress,etc
Working temperature:
Normally : 80-85° , High : 120°
Rated current:
0.5A/1.5A
Max Voltage:
110VDC/220VDC
Min Voltage:
220VDC/350VDC
Max Contact Rating:
10W/50W
Cable length:
350mm or customization
Output:
Signal
Product Description
Product Name
Horizontal Float Switch
Material
PP/SS
size
Rod length : 87 MM , Cable length : as your requirements , Terminal /connector : as your requirements
Application
Float level switches are widely used in electronic, electrical, chemical, water treatment, drainage and other industry of level
control and alarm.
Payment terms
T/T; Western Union; PayPal.Trade assurance
Package
Standard export package

  • Product performance description

1.Acid and alkali resistant materials: PP/POM
Other material : Stainless steel ,,PVDF, NYLON, NBR etc..
2.Stainless steel SUS304, SUS316, max working temp.350℃, max proof pressure 60kg/cm2
3.Stainless steel switch body length can reach 120mm~400mm or as your requirements , the length can be adjusted according to your water
tank, switch body is durability.
4.Multiple wires: electrical wire or cable wire, PVC, XLPE, PTFE materials.
5.Multiple installations, dimensions, from M8~M16, 1/8" ~ 1/2",PF/PT/BSP etc..
6.OEM accept : Rod length , working point , cable length, working power , etc .
