Quick Details
-
Product name:
-

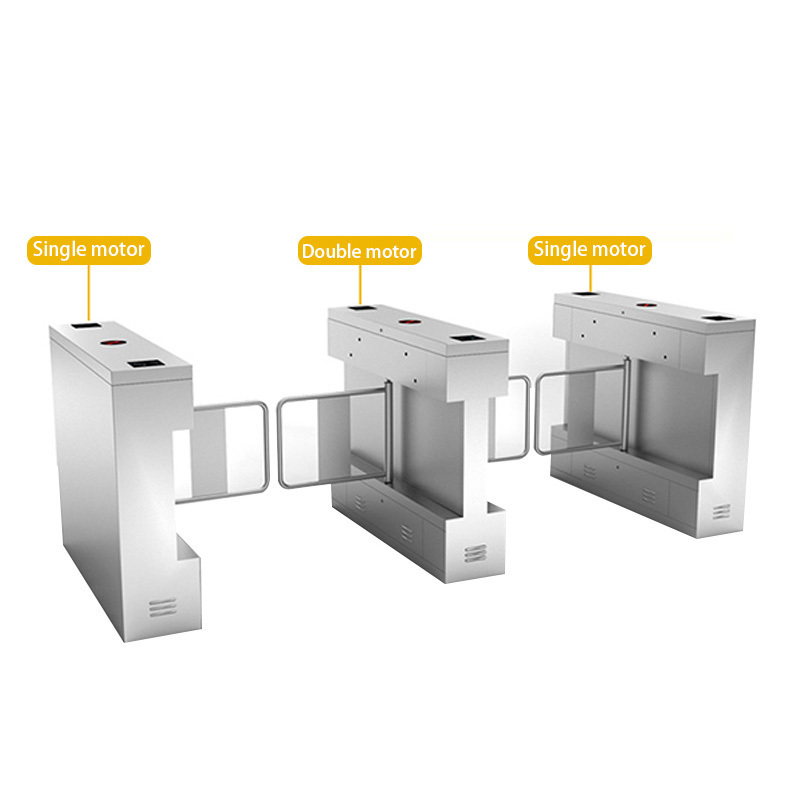

Swing turnstile
-
Cabinet Material:
-
304 Stainless Steel
-
Dimensions:
-
Cabinet:1200*280*980mm
-
Weight:
-
70KG
-
Motor Type:
-
Single motor
-
Arm Length:
-
≤600-1200mm
-
Passage Width:
-
≤1200-2200mm
-
Dry Contact:
-
12V
-
Material Thickness:
-
1.5mm
-
Card-reading Window:
-
Two
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TGW
-
Model Number:
-
TGW-ST002D
-
Product name:
-
Swing turnstile
-
Cabinet Material:
-
304 Stainless Steel
-
Dimensions:
-
Cabinet:1200*280*980mm
-
Weight:
-
70KG
-
Motor Type:
-
Single motor
-
Arm Length:
-
≤600-1200mm
-
Passage Width:
-
≤1200-2200mm
-
Dry Contact:
-
12V
-
Material Thickness:
-
1.5mm
-
Card-reading Window:
-
Two
Product Information
|
Model No.
|
TGW-ST002D
|
|
Cabinet Material
|
304 Stainless Steel
|
|
Dimensions
|
Cabinet:1200*280*980mm
|
|
Weight
|
70KG
|
|
Motor Type
|
Double motor
|
|
Arm Length
|
≤600-1200mm
|
|
Passage Width
|
≤1200-2200mm
|
|
Dry Contact
|
12V
|
|
Material Thickness
|
1.5mm
|
|
Card-reading Window
|
Two
|
|
Direction
|
Bi-directional
|
|
Service Life
|
5million times
|
|
Operating Temperature
|
-25℃ ~ +60℃
|
|
Related Humidity
|
≥90%RH
|
|
Communication Interface
|
TCP/IP
|
|
Power Supply
|
AC 220V/110V ±10% 50/60MHZ (optional)
|
|
Opening Speed
|
30-45persons per minute
|
|
Closing Speed
|
25-35 persons per minute
|
