Quick Details
-
Brand Name:
-
Yunnuo
-
Color:
-
White,ivory,yellow,pink,cream
-
Shape:
-
square,tubular,oval,rectangular,half
-
Usage:
-
thermocouples,furnace,sensor
-
Type of hole:
-
single bore, double bores, four bores, dee tubing, oval shapes
-
Working temperature:
-
1400C,1500C,1600C,1700C,1800C
-
Type of ends:
-
Both ends open OBE or BEO,one end closed COE
-
Surface finish:
-
smooth,polished,glazing,glazed
-
Material option:
-
Alsint C799,Ker 710,C710,C795,C610
-
Synonym:
-
99.7%,99%,96%,95% alumina,al2o3
-
Machining of ceramic tube:
-
drill hole,notch or slot,flange,collar,thread,spiral,screw
Quick Details
-
Material:
-
Alumina Ceramic
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
YNC-001
-
Brand Name:
-
Yunnuo
-
Color:
-
White,ivory,yellow,pink,cream
-
Shape:
-
square,tubular,oval,rectangular,half
-
Usage:
-
thermocouples,furnace,sensor
-
Type of hole:
-
single bore, double bores, four bores, dee tubing, oval shapes
-
Working temperature:
-
1400C,1500C,1600C,1700C,1800C
-
Type of ends:
-
Both ends open OBE or BEO,one end closed COE
-
Surface finish:
-
smooth,polished,glazing,glazed
-
Material option:
-
Alsint C799,Ker 710,C710,C795,C610
-
Synonym:
-
99.7%,99%,96%,95% alumina,al2o3
-
Machining of ceramic tube:
-
drill hole,notch or slot,flange,collar,thread,spiral,screw
Product Description
|

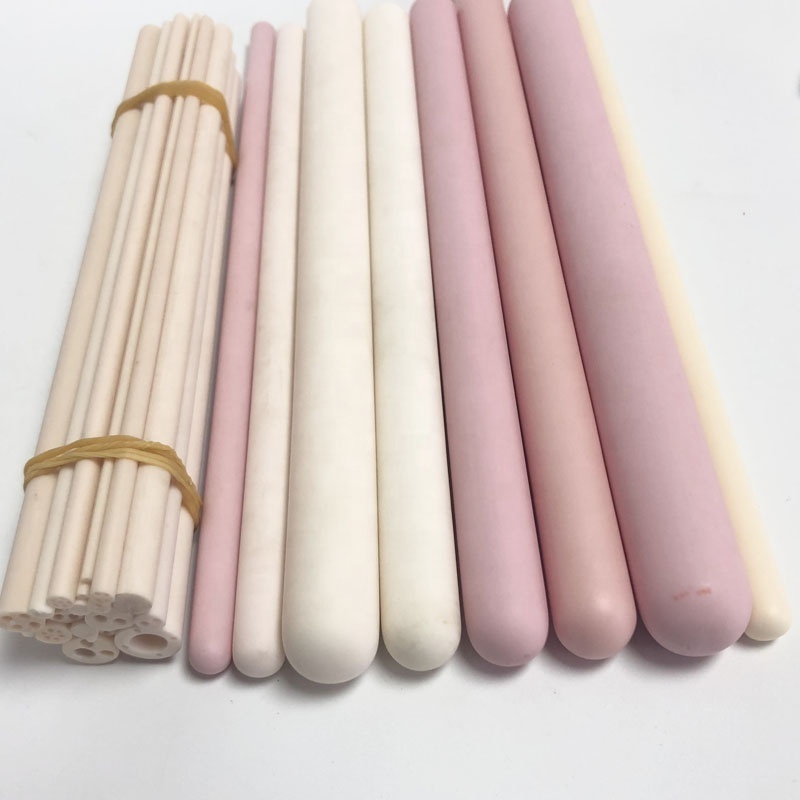

95%,99.7% alumina ceramic protection tube,one end closed
|
|
|
|
OD x ID in mm
|
Length in mm
|
|
|
5x3
|
0-1500
|
|
|
6x4
|
0-1500
|
|
|
8x5
|
0-2500
|
|
|
10x6
|
0-2500
|
|
|
11x8
|
0-2500
|
|
|
12x7
|
0-2500
|
|
|
14x10
|
0-2500
|
|
|
15x11
|
0-2500
|
|
|
16x12
|
0-2500
|
|
|
17x12
|
0-2500
|
|
|
19x14
|
0-2500
|
|
|
20x14
|
0-2500
|
|
|
22x16
|
0-2500
|
|
|
24x17
|
0-2500
|
|
|
25x19
|
0-2500
|
|
|
26x20
|
0-2500
|
|
|
28x22
|
0-2500
|
|
|
30x24
|
0-2500
|
|
High Temperature Alsint Alumina Ceramic Tubes for Senors
We are supplying a wide variety of ceramic tubes and rods manufactured from advanced technical ceramics including
1. alumina(Alsint 99.7 Type C 799/ Rubalit C 799/99.7% al2O3, 96% Dense Al2O3,Pythagoras Type C 610/ Dimulit C610, Sillimatin 60
Type C 530,Mullite/ Aluminium Silicate/3Al2O3•2SiO2)
2.zirconia (TTZ/ Magnesia partially stabilized ZrO2;YTZP/Yttria partially stabilized ZrO2;ZDY/ Yttria fully stabilized ZrO2)
3.silicon carbide(Recrystallized sic,nitride bonded sic, reaction sintering sic/RB sic ).
These tubes are in various of sizes, shapes and configurations for example:single bore, double bores, four bores, dee tubing, oval
shapes, custom shapes.
Main application:
Protection sheaths in high temperature measurement.
Thermocouple components
Igniter tubes
Thermostats
Turbine casting supports
Surgical devices
Knife sharpeners
Wafer processing components
Ceramic insulators
Vacuum devices
High-power resistor
We are supplying a wide variety of ceramic tubes and rods manufactured from advanced technical ceramics including
1. alumina(Alsint 99.7 Type C 799/ Rubalit C 799/99.7% al2O3, 96% Dense Al2O3,Pythagoras Type C 610/ Dimulit C610, Sillimatin 60
Type C 530,Mullite/ Aluminium Silicate/3Al2O3•2SiO2)
2.zirconia (TTZ/ Magnesia partially stabilized ZrO2;YTZP/Yttria partially stabilized ZrO2;ZDY/ Yttria fully stabilized ZrO2)
3.silicon carbide(Recrystallized sic,nitride bonded sic, reaction sintering sic/RB sic ).
These tubes are in various of sizes, shapes and configurations for example:single bore, double bores, four bores, dee tubing, oval
shapes, custom shapes.
Main application:
Protection sheaths in high temperature measurement.
Thermocouple components
Igniter tubes
Thermostats
Turbine casting supports
Surgical devices
Knife sharpeners
Wafer processing components
Ceramic insulators
Vacuum devices
High-power resistor
