Quick Details
-
Brand Name:
-
na
-
Model Number:
-
DS211
-
name:
-
Digital Oscilloscope Multimeter
-
MCU:
-
STM32F103VC
-
ADC:
-
MCU internal ADC
-
Number of channels:
-
1 Analog channel + 1 internal channel
-
Analog bandwidth:
-
200KHz
-
The maximum sampling rate:
-
1MSa / s
-
Maximum storage depth:
-
8K
-
Horizontal scanning speed:
-
1uS / Div ~ 2S / Div (1-2-5 step)
-
Shipment method:
-
DHL,Fedex, Sea, Air
-
Datasheet:
-
DHL, FedEx, TNT, UPS, EMS or others
Quick Details
-
Type:
-
na
-
Warranty:
-
na
-
Place of Origin:
-
China
-
Brand Name:
-
na
-
Model Number:
-
DS211
-
name:
-
Digital Oscilloscope Multimeter
-
MCU:
-
STM32F103VC
-
ADC:
-
MCU internal ADC
-
Number of channels:
-
1 Analog channel + 1 internal channel
-
Analog bandwidth:
-
200KHz
-
The maximum sampling rate:
-
1MSa / s
-
Maximum storage depth:
-
8K
-
Horizontal scanning speed:
-
1uS / Div ~ 2S / Div (1-2-5 step)
-
Shipment method:
-
DHL,Fedex, Sea, Air
-
Datasheet:
-
DHL, FedEx, TNT, UPS, EMS or others

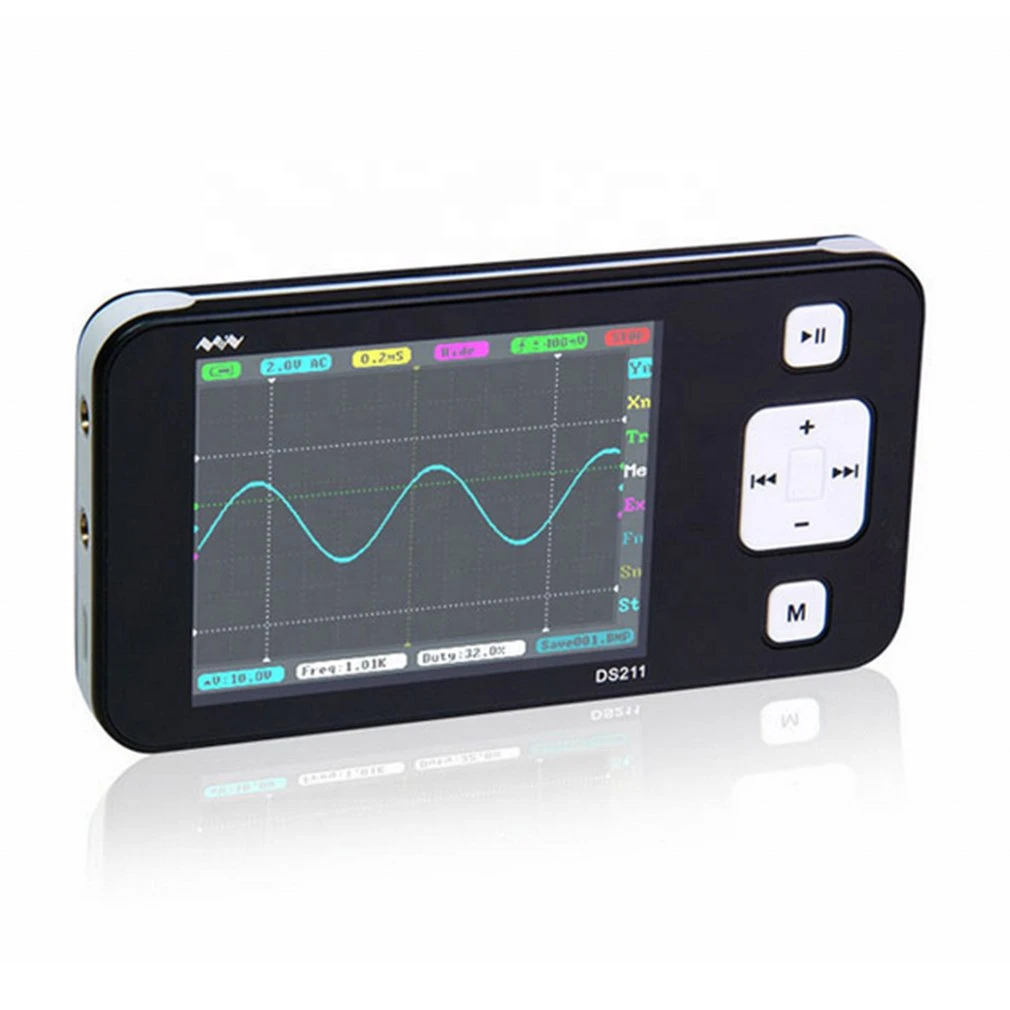

DS211 1-CH Handheld Digital Storage Oscilloscope Scope Meter USB 1MHz Mini DSO Automotive Scopemeter Set
Product Description:
|
Specifications: Model:DS211 MCU: STM32F103VC ADC: MCU internal ADC Number of channels: 1 Analog channel + 1 internal channel Analog bandwidth: 200KHz The maximum sampling rate: 1MSa / s Maximum storage depth: 8K Horizontal scanning speed: 1uS / Div ~ 2S / Div (1-2-5 step) Vertical Sensitivity: 20mv / Div ~ 10V / Div (1-2-5 step) Input impedance: 1MΩ Coupling: DC / AC Trigger mode: Rising / falling edge trigger Auto adjustment mode: AUTO_FIT Operation waveform: -A, RecA, A + RecA Signal output: Square wave, sine wave, triangular wave, sawtooth wave Trigger mode: Auto, Normal, Single, None, Scan Measured values: Signal frequency / period / duty cycle,Voltage peak-to-peak value / effective value / maximum value / minimum value / average value Storage: 8MB built-in U disk Can be installed APP Quantity: 1 Operation: Press the key USB interface: MicroUSB Battery: 550mAh Screen size: 2.8 inches Screen resolution: 320 × 240 Open source: application layer open source Certification: CE / FCC Size:106.5x55.7x11.5mm/4.15x2.17x0.45in Product Weight:65g/2.28oz |
