Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
NUUKO
-
Model Number:
-
550W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2278*1134*35MM
-
Application:
-
Solar Power System
-
Cell Type:
-
Monocrystalline
-
OEM:
-
Acceptable
-
Keyword:
-
Pv Module
-
Brand:
-
Nuuko or OEM
-
Frame Color:
-
Siliver
-
Junction Box:
-
IP 68
-
Number of Cells:
-
144 (6 * 24)
-
Dimension:
-
2278mm*1134mm*35mm
-
Weight:
-
27.5kg
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
21.3%
-
Warranty:
-
25 years
-
Brand Name:
-
NUUKO
-
Model Number:
-
550W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2278*1134*35MM
-
Application:
-
Solar Power System
-
Cell Type:
-
Monocrystalline
-
OEM:
-
Acceptable
-
Keyword:
-
Pv Module
-
Brand:
-
Nuuko or OEM
-
Frame Color:
-
Siliver
-
Junction Box:
-
IP 68
-
Number of Cells:
-
144 (6 * 24)
-
Dimension:
-
2278mm*1134mm*35mm
-
Weight:
-
27.5kg
Product Description

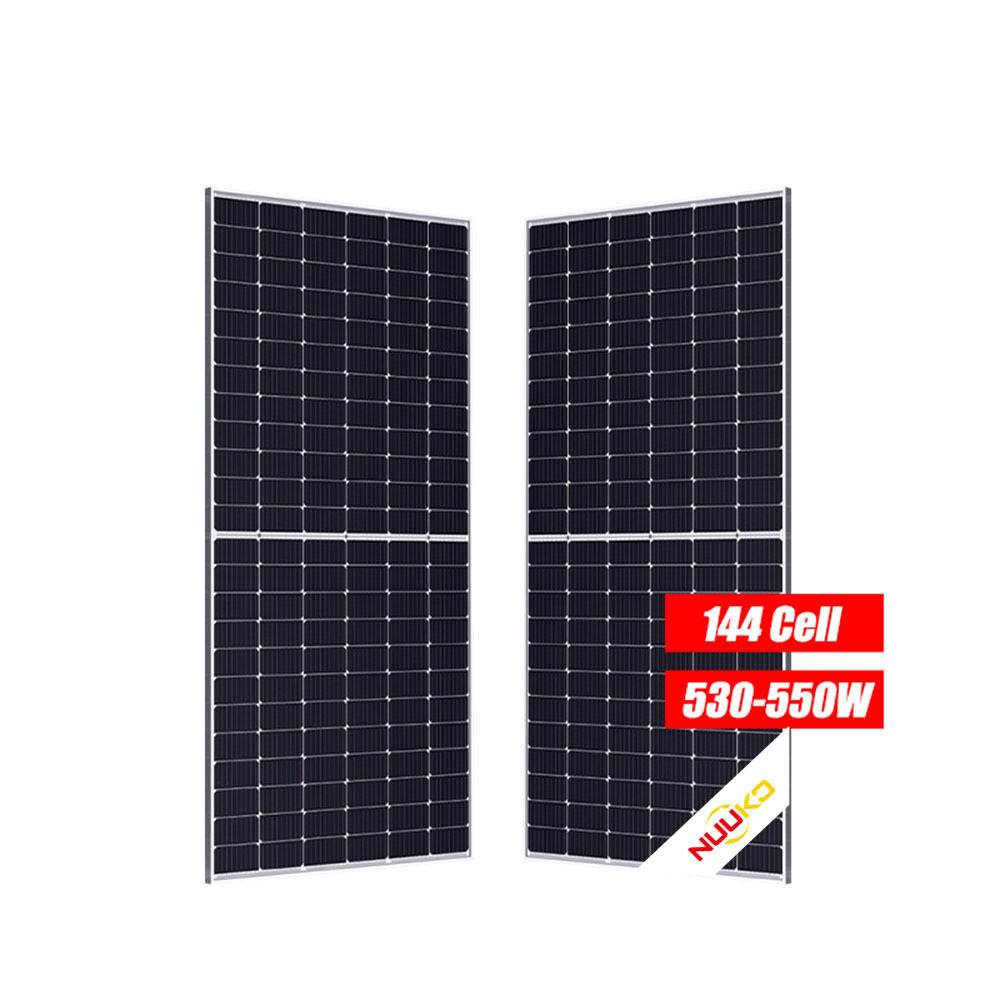

Mono PERC 530W to 550W solar panel
182mm solar cell solar module, high efficiency half cell solar panel popular in market.
Material
Glass
3.2mm (0.13inches) AR Coating Tempered Glass
Solar cell
5BB,9BB,10BB,11BB,12BB
157mm 158mm 166mm 182mm 210mm,high efficiency
Frame
Anodized Aluminium Alloy
More stronger
Junction box
IP 68 rated Waterproof
Innovative Full-Glue-Filled
Portrait/Landscape Length Optional
Innovative Full-Glue-Filled
Portrait/Landscape Length Optional
MC4 connector
MC4 Compatible /MC4 EVO2/TS4*
500N Tensile Strength
Female/Male/Fuse
500N Tensile Strength
Female/Male/Fuse
OEM service
produce solar panel with brand of clients
|
SPECIFICATIONS
|
|
|
|
|
|
|
||||||
|
Cell
|
Mono
|
|
|
|
|
|
||||||
|
Weight
|
29kg
|
|
|
|
|
|
||||||
|
Dimensions
|
2279x 1134 x 35mm
|
|
|
|
|
|
||||||
|
Cable Cross Section Size
|
TUV: 4mm2 (0.006inches2)/UL: 12AWG
|
|
|
|
|
|
||||||
|
No. of Cells
|
144 (6x24)
|
|
|
|
|
|
||||||
|
Junction Box
|
IP68, 3 diodes
|
|
|
|
|
|
||||||
|
Cable Length
|
Portrait 300mm/Landscape 1200mm/Customized
|
|
|
|
|
|
||||||
|
Packaging Configuration
|
31pcs/Pallet, 620pcs/40ft Container
|
|
|
|
|
|
||||||
|
ELECTRICAL PARAMETERS AT STC
|
|
|
|
|
|
|
||||||
|
Rated Maximum Power (Pmax) [W]
|
530
|
530
|
535
|
540
|
545
|
550
|
||||||
|
Maximum Power Voltage(Vmpp/V)
|
41.7
|
49.30
|
41.8
|
41.9
|
42.0
|
42.1
|
||||||
|
Maximum Power Current(Impp/A)
|
12.71
|
41.31
|
12.80
|
12.89
|
12.98
|
13.07
|
||||||
|
Open Circuit Voltage(Voc/V)
|
49.5
|
13.72
|
49.6
|
49.7
|
49.8
|
49.9
|
||||||
|
Short Circuit Current(Isc/A)
|
13.44
|
12.83
|
13.53
|
13.62
|
13.71
|
13.80
|
||||||
|
Module Efficiency [%]
|
20.3%
|
20.5
|
20.7%
|
20.9%
|
21.1%
|
21.3%
|
||||||
|
Power Tolerance
|
0~+5W
|
|
|
|
|
|
||||||
|
Temperature Coefficient of Isc [α_Isc]
|
+0.043%/°C
|
|
|
|
|
|
||||||
|
Temperature Coefficient of Voc [β_Voc]
|
-0.26%/°C
|
|
|
|
|
|
||||||
|
Temperature Coefficient of Pmax [γ_Pmp]
|
-0.36%/°C
|
|
|
|
|
|
||||||
|
STC
|
Irradiance 1000W/m², cell temperature 25°C, AM1.5
|
|
|
|
|
|
||||||
Certifications
Production
Welding solar cell
Automatic arrangement
EL test of solar panel
Frame
External assessment of solar panel
Last EL test
Our Team with Customers
Packing
Project
NUUKO 5MW project
NUUKO bifacial solar panel 550W
NUUKO 50KW priject
Located in Henan province China
NUUKO 500KW project
Located in Vietnam
NUUKO 1MW project
Located in
Thailand
NUUKO 5MW project
Located in Shangdong province
NUUKO 250KW project
Locates in Thailand
NUUKO 50KW project
Locates in
Norway
NUUKO 380KW project
Located in Brazil
NUUKO 22KW project
Located in Italy
NUUKO 160KW project
Located in Brazil
Delivery
3GW production capacity per year, fast delivery, support for sea, land and air transportation!
FAQ:
Q: Do you have any experience manufacturing products for our industry?
A: We have more than 10 years experience in PV industry.
Q: Can you provide customization options for your products?
A: We have more than 10 years experience in PV industry.
Q: Can you provide customization options for your products?
A: Yes, we provide OEM Service.
Q: What are the advantages of your company?
A: We have own factory, and we also cooperate with other Tier 1 brands, aiming to provide customers with competitive
prices and more choices.
prices and more choices.
Q: May I have a piece of sample to check the quality?
A: Sample is available to you for checking and evaluating.
Q: How about the delivery time?
A: About 15-20 working days after receiving your payment. (The specific delivery time depends on the items and the order quantity.)
Q: Where is the port of loading?
A: Shanghai or any port in China.
If you have any other questions, welcome to send us inquiry at bottom of this page:
If you have any other questions, welcome to send us inquiry at bottom of this page:
