Quick Details
-
Brand Name:
-
Powergrid
-
Model Number:
-
Customized
-
Surface Treatment:
-
Gritted
-
Product name:
-
FRP pultruded grating
-
Material:
-
Ortho,ISO,V/E or Phenolic resin
-
Surface:
-
gritted,smooth
-
Panel size:
-
Customized panel sizes
-
Filler:
-
Aluminium Hydroxide,fire retardant
-
Fiberglass:
-
E-glass
-
UV inhibitor:
-
UV-9
-
Certificates:
-
ISO9001,ABS,DNV
Quick Details
-
Application:
-
Walkway
-
Technique:
-
Pultrusion Process
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Powergrid
-
Model Number:
-
Customized
-
Surface Treatment:
-
Gritted
-
Product name:
-
FRP pultruded grating
-
Material:
-
Ortho,ISO,V/E or Phenolic resin
-
Surface:
-
gritted,smooth
-
Panel size:
-
Customized panel sizes
-
Filler:
-
Aluminium Hydroxide,fire retardant
-
Fiberglass:
-
E-glass
-
UV inhibitor:
-
UV-9
-
Certificates:
-
ISO9001,ABS,DNV

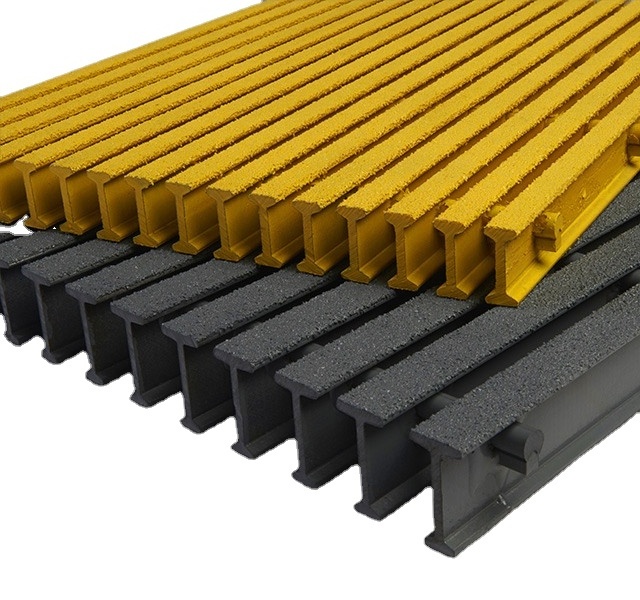

Anti skid fiberglass FRP pultruded grating I and T bars
Nantong Josson offers a wide range of Anti slip FRP pultruded grating, including a variety of thicknesses, open areas, cross bar spacing, surfaces, and resins. Pultruded grating is often used where spans are longer than molded grating can allow, and chemical resistance requirements aren't as high.
Standard FRP pultruded gratings are made of a matrix of polyester resin. The reinforcement is achieved by a combination of fibreglass mats and rovings with a glass content of approx. 65%. Standard colours are grey or yellow, but all other colours are possible.
The most important feature of FRP pultruded grating consists of the fact that the glass to resin ratio is higher in the bearing bar direction, therefore the span capacity of FRP pultruded grating is higher compared to that of the molded grating. This reflects in a reduction of support structures and lower costs.
Standard types
Applications
