Quick Details
-
Voltage:
-
220V/380V
-
Rated Capacity:
-
100%
-
Rated Duty Cycle:
-
100%
-
Use:
-
Rotating Table
-
Product Name:
-
welding positioner
-
Rotating speed:
-
0.1-1rpm
-
Rotating angle:
-
0~120°
-
Operation way:
-
Remote Control
-
Way of setting:
-
Frequency control
-
Function:
-
Automatical Tilting
-
Capacity:
-
600-20000KG
-
VOLTAGE:
-
380V/220V/440V/415V
-
Weight:
-
100KG-20000KG
-
Chuck Clamp:
-
1000mm
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
ACRROS
-
Weight (KG):
-
250
-
Voltage:
-
220V/380V
-
Rated Capacity:
-
100%
-
Rated Duty Cycle:
-
100%
-
Use:
-
Rotating Table
-
Product Name:
-
welding positioner
-
Rotating speed:
-
0.1-1rpm
-
Rotating angle:
-
0~120°
-
Operation way:
-
Remote Control
-
Way of setting:
-
Frequency control
-
Function:
-
Automatical Tilting
-
Capacity:
-
600-20000KG
-
VOLTAGE:
-
380V/220V/440V/415V
-
Weight:
-
100KG-20000KG
-
Chuck Clamp:
-
1000mm

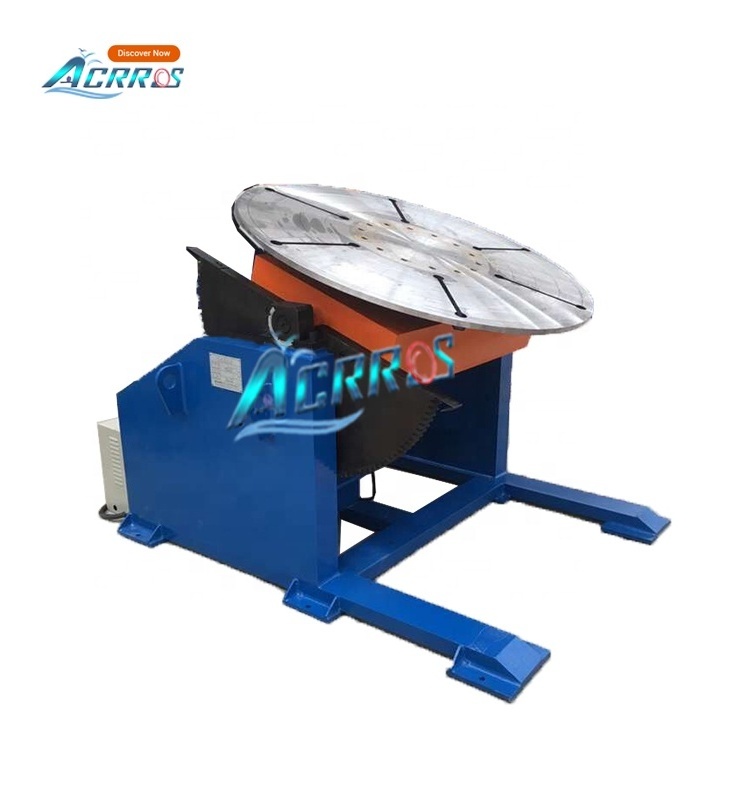

50kg 100kg 1200kg 2000kg 3000Kg 5000kg 10Ton Welding Positioner with Clamp
50kg 100kg 1.2T 2T 3T 5T 10Ton Adjustable Pipe Roller Stand Rotary Table with 3 jaw chuck
China Heavy Welding Positioners 5Ton Automatic Welding Rotary Table Clamp
Techinical Parameters of Welding Positioner.
| Model | BW1-01 | BW1-05 | BW1-10 | BW2-12 | BW2-20 | BW2-50 | BW2- 10 0 |
| Loading(kg)(0°/90°) | 10/5 | 50/25 | 100/50 | 1200 | 2000 | 5000 | 10000 |
| Rotating speed(r/min) | 2-10 | 2-15 | 2-15 | 0.1-1 | 0.03-0.3 | 0.05-0.5 | 0.05-0.5 |
| Overturning speed(r/min) | manual | manual | manual | 0.37 | 0.37 | 0.37 | 0.37 |
| Turning angle(°) | 0-90 | 0-90 | 0-90 | 0-120 | 0-120 | 0-120 | 0-120 |
| Worktable diameter(mm) | 177 | 340 | 340 | 1000 | 1100 | 1600 | 2000 |
| Worktable height(mm) | 215 | 420 | 420 | 1100 | 1150 | 1450 |
2000 |
Technical Parameters of Welding Roator,
| Model | HG1-5 | HG1-10 | HG1-20 | HG1-30 | HG1-50 | HG1-60 | HG1-80 | HG1-100 |
| Loading capacity(t) | 5 | 10 | 20 | 30 | 50 | 60 | 80 | 100 |
| Roller speed(m/h) | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 |
| Motor power(kw) | 2x0.25 | 2x0.25 | 2x0.37 | 2x0.37 | 2x0.75 | 2x0.75 | 2x1.1 | 2x1.5 |
| Speed rehulating way | Frequency control | |||||||
Techinical Parameters of Welding Manipulator.
| Model | HC-2X2 | HC-3X3 | HC-4X4 | HC-5X5 | HC-6X6 | HC-7X7 | HC-8X8 |
| Up/down strok of cross arm | 2m | 3m | 4m | 5m | 6m | 7m | 8m |
| Optional stretching stroke of cross arm | 2-4m | 2.5-5m | 3-7m | 3-8m | 4-8m | 4-8m | 4-8m |
| Rotating angle of the pillar | ±180 angle | ||||||
| Up/down speed of the cross arm | 850mm/min | 1150mm/min | |||||
| Expansion speed of the cross arm | 140-1400mm/min | ||||||
| Rotating speed of the pillar | 0.2r/min | ||||||
