Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
EVERSTAR
-
Paving speed:
-
0-15m/min
-
Turning radius:
-
0-100cm
-
Travelling speed:
-
0-25m/min
-
Engine Power:
-
36.8kW/2400rpm
-
Diesel tank capacity:
-
90L
-
Hydraulic tank capacity:
-
110L
-
system voltage:
-
12V
-
Maximum paving width:
-
60cm
-
Maximum paving height:
-
60cm
Quick Details
-
Max. Paving Thickness:
-
60
-
Weight:
-
400 kg
-
Engine Brand:
-
YUCHAI
-
Place of Origin:
-
China
-
Brand Name:
-
EVERSTAR
-
Paving speed:
-
0-15m/min
-
Turning radius:
-
0-100cm
-
Travelling speed:
-
0-25m/min
-
Engine Power:
-
36.8kW/2400rpm
-
Diesel tank capacity:
-
90L
-
Hydraulic tank capacity:
-
110L
-
system voltage:
-
12V
-
Maximum paving width:
-
60cm
-
Maximum paving height:
-
60cm

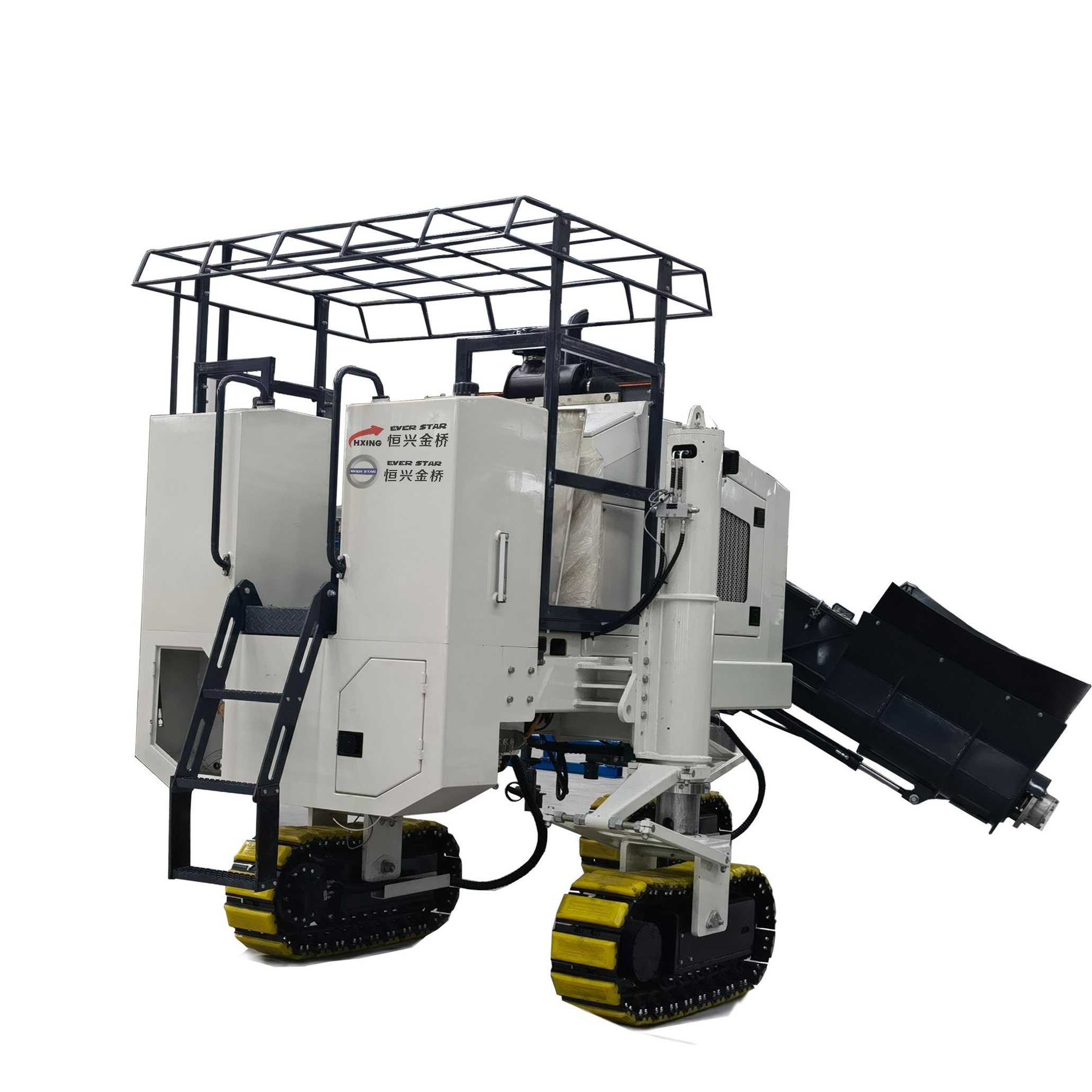

NC series slip form paver mainly specification
| Specification | NC600 | NC1300 | NC1800 | |
| Basic parameters | Paving speed | 0~15m/min | ||
| Travelling speed | 0~30m/min | 0~35m/min | 0~35m/min | |
| Engine | Brand | Yuchai | Cummins | |
| Model | 30DG0-000000WA | YC4DK0-T30 | QSB3.9-C125-30 | |
| Power | 36.8kW | 88kW | 97kW | |
| Speed | 2400 rpm | 2400 rpm | 2300 rpm | |
| Type | Naturally aspirated | |||
| Diesel tank capacity | 90L | 320L | 320L | |
| Hydraulic system | Hydraulic pump: | DANFOSS | ||
| Hydraulic oil cooling | large size radiator, forced air cooling | |||
| Hydraulic oil filter | up to 0μm | |||
| Sensor | Direction turn | 1 | ||
| Longitudinal slope | 2 | |||
| Cross slope | 1 | |||
| Vibrator | Type | Hydraulic | ||
| Brand | WYCO | |||
| Frequency | 0~167hz | |||
| Q'TY | Upto 2 | Upto 6 | Upto 8 | |
| Flush system | Type | High pressure water | ||
| Tank capacity | 58L | 320L | 320L | |
| Walking device | Componets | variable pump, hydraulic valve, hydraulic motor, reducer, crawler, control system | ||
| Type | single track, stepless adjustable | |||
| Track size | 134*30*51cm | 160*30*60cm | 160*30*67cm | |
| Sider module | Max. width | 60cm | 200cm | 250cm |
| Max. height | 60cm | 130cm | 180cm | |
| Machine Dimension | 4.2*2.7*3.1 | 5.4*2.6*2.8M | 7*3.5*4M | |
| Machine Weight | 4 ton | 11 ton | 14.5 ton | |
| Feeding system | Type | Auger conveyor | ||
| Speed | 0-100 rpm | |||
| Optional type | (folding)belt conveyor | |||
Structure at a glance
Collection of module structure(not all)
Our Hornors: 20 years experience more than 10 national patent lincence
Intelligent control systems
Module suspension system
Digital Elevation Model(DEM) control
Line balance control
Feeding system
Winch convery Rotation
Hydraulic drive
Right side outrigger flexable open installation
