Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
XIEGU G90, XIEGU
-
Model Number:
-
G90, G90
-
Dimensions:
-
120*45*210mm
-
Frequency Range:
-
0.5MHz~30MHz
-
Product Name:
-
XIEGU G90 HF Transceiver
-
frequency range:
-
0.5MHz to 30MHz
-
Working mode:
-
SSB/CW/AM
-
voltage range:
-
12 ~ 15V DC
-
RF output power:
-
20W
-
Operating temperature range:
-
0 ° C ~ 55 ° C
Quick Details
-
Talk Range:
-
Global coverage, Global coverage (Signal depends on antenna and region)
-
Terminal style:
-
Vehicle Mouted
-
Storage Channel:
-
Full Bands, 40
-
Place of Origin:
-
China
-
Brand Name:
-
XIEGU G90, XIEGU
-
Model Number:
-
G90, G90
-
Dimensions:
-
120*45*210mm
-
Frequency Range:
-
0.5MHz~30MHz
-
Product Name:
-
XIEGU G90 HF Transceiver
-
frequency range:
-
0.5MHz to 30MHz
-
Working mode:
-
SSB/CW/AM
-
voltage range:
-
12 ~ 15V DC
-
RF output power:
-
20W
-
Operating temperature range:
-
0 ° C ~ 55 ° C
|
A Letter To You：
|
|
|
|
|
||||
|
Under the global COVID-19 pandemic, are you worried about your business?
In the communications industry, are you selling products such as walkie talkie with low margins and high competition?
Now, Xiegu is looking for new global distributors. We have a very strict protection system and after-sales technical support in ensuring the interests of our customers. According to a leading US market research report：In 2019，there are about 3 million amateur radio operators worldwide, including more than 700,000 licensed operators in the United States alone. Compared with similar HF radios of Icom/Yaesu and other companies, we have a good market competitiveness.
It would be a good business，Chat with us and get the business started!
|
|
|
|
|
||||
|
Thank you for visiting the Xiegu Radio store!
|
|
|
|
|
||||
|
Discount
|
Click on chat to ask for the latest special price.
Chat >
|
|
|
|
||||
|
Service
|
We are the only official shop of xiegu on Alibaba.
Become our distributor，We can provide HD photo without watermark for you to promote，Samples available，Pls contact us if you need it. |
|
|
|
||||
|
All products sold are backed by an after-sales guarantee and technical support.
|
|
|
|
|
||||
The G90 features a panel + top button construction and all operations are optimized for ease of use. You no longer need to set up various functions through the menu, you can control all directly through the buttons and multi-function encoder. The screen display is rich in content, all the information is clear at a glance, and with the real-time spectrum display, various signal conditions are under control.
Xiegu g90 20w SDR HF Transverse Built-in Auto Antenna Tuner QRQ HF Ham Radio Transceiver
Description
:
1. G90 20W HF amateur radio transceiver with an SDR architecture with built-in auto antenna tuner. The display unit and the radio can be separated. It is a new member of the Xiegu product family and the first model of the G series.
2. SDR structure, 24-bit data size @48kHz sampling rate, (radio license needed), it has excellent transceiving performance and a highly configurable function experience;
3. The G90 has a separate display that can be separated from the host unit and connected via a VGA cable. the design of detachable display unit allows you to flexibly arrange the position of the radio;
4. Built-in high-performance auto antenna tuner to meet your needs at any time, so the antenna is no longer a problem.
5. G90 suitable for outdoor activities and emergency rescue. has excellent transmit and receive performance, which brings user a highly configurable and functional experience.
Features :
1. High performance front end narrowband ESC preselector
2. Covers the frequency range of 0.5~30MHz, SSB/CW/AM/ FM*1 three working modes;
3. SSB/CW/AM three working modes
4. 1.8 inch high brightness color TFT LCD screen
5. ±24k bandwidth spectrum display, waterfall display;
6. Software defined narrowband filter (CW mode: 300Hz)
7. Detachable Display Unit: The detachable display design allows you to flexibly arrange the position of the host radio.
8. Up to 20W of RF power
4. Built-in high-performance auto antenna tuner to meet your needs at any time, so the antenna is no longer a problem.
5. G90 suitable for outdoor activities and emergency rescue. has excellent transmit and receive performance, which brings user a highly configurable and functional experience.
Features :
1. High performance front end narrowband ESC preselector
2. Covers the frequency range of 0.5~30MHz, SSB/CW/AM/ FM*1 three working modes;
3. SSB/CW/AM three working modes
4. 1.8 inch high brightness color TFT LCD screen
5. ±24k bandwidth spectrum display, waterfall display;
6. Software defined narrowband filter (CW mode: 300Hz)
7. Detachable Display Unit: The detachable display design allows you to flexibly arrange the position of the host radio.
8. Up to 20W of RF power
9. D
etachable display unit;
10.
Built-in wide range automatic antenna tuner;
11. Diversified interfaces, In particular, the baseband I/Q output allows it to interface with any external device that can handle baseband I/Q, including sound card-based or PC-based applications such as XDT1.
11. Diversified interfaces, In particular, the baseband I/Q output allows it to interface with any external device that can handle baseband I/Q, including sound card-based or PC-based applications such as XDT1.
We offer a 12-month manufacturer's warranty on all products in the xiegu range purchased in our shop. If you have any after-sales technical queries about our products, please contact our customer service staff.
|
About Packaging：
|
|

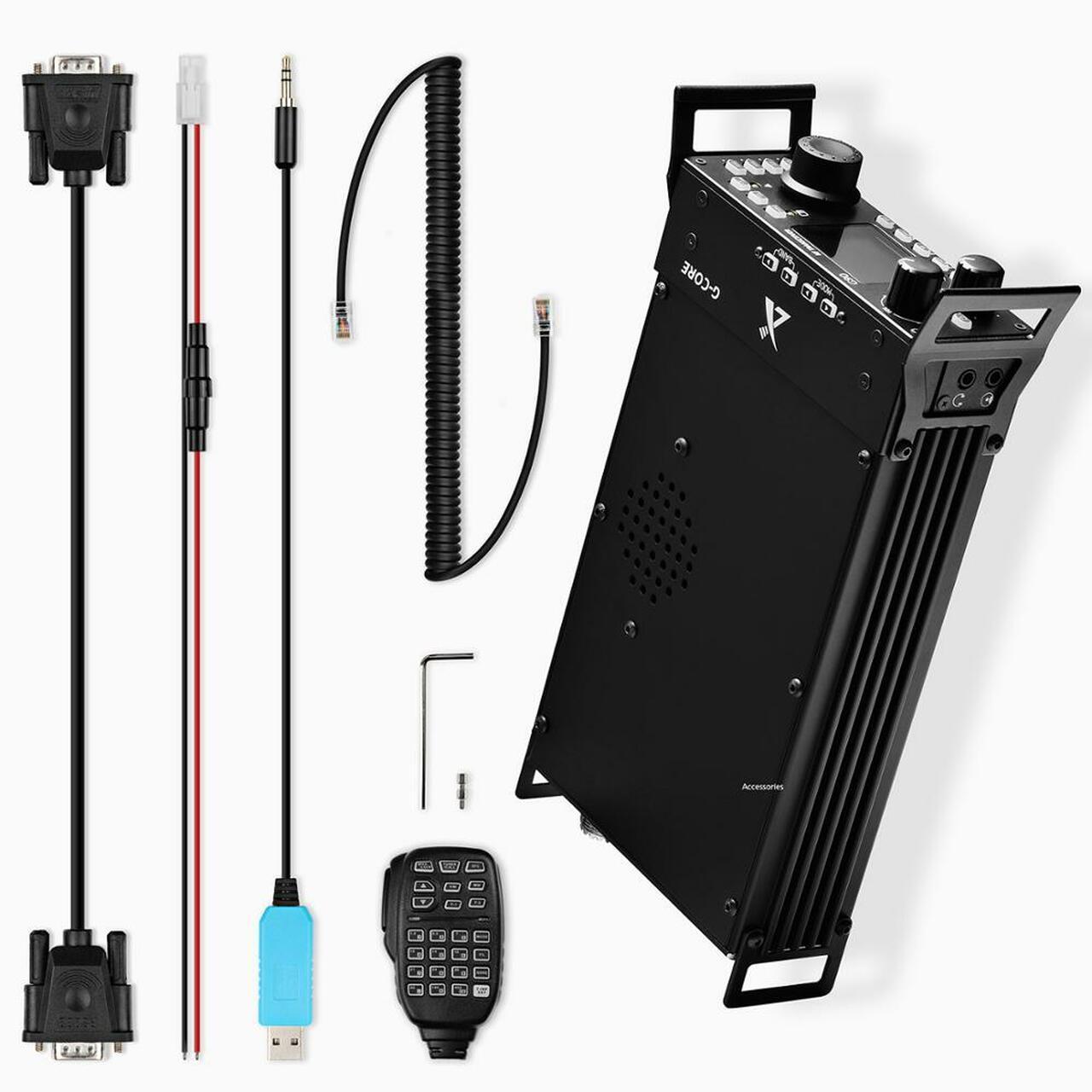

Package Includ：
|
|
||
|
Dimensions:
|
120*45*210mm
|
1 x Xiegu G90 Transceiver
1 x Power Cable
1 x Speaker Mic
1 x User Manual
|
|
||
|
Single package size:
|
15.5X10X4 cm
|
|
|
||
|
Single gross weight:
|
2.500 kg
|
|
|
||
|
Specifications
|
|
|
|
Receive frequency range:
|
0.5MHz to 30MHz
|
|
|
Operating voltage range:
|
12 ~ 15V DC
|
|
|
Transmitting frequency range:
|
all amateur bands in the range of 1.8 to 29.999 MHz
|
|
|
Standby operating current:
|
750mA @ Max
|
|
|
Working mode:
|
SSB/CW/AM
|
|
|
Transmit working current:
|
8A @ Max
|
|
|
Operating temperature range:
|
0 ° C ~ 55 ° C
|
|
|
Frequency stability:
|
±2ppm (after 30 minutes of power on)
|
|
|
Machine size:
|
120*45*210 mm (without protrusions, head unit combination status)
|
|
|
Machine weight:
|
about 1kg
|
|
|
Receiver Parameters
|
|
|
|
Receive sensitivity:
|
better than 0.25uV @12dB Sinad (PRE: ON)
|
|
|
Machine dynamic range:
|
90dB
|
|
|
Adjacent channel suppression:
|
60dB
|
|
|
Audio output power:
|
0.5W@ 4Ω
|
|
|
Optional:
|
SSB 2.4kHz / CW 300Hz
|
|
|
Transmitter Parameters
|
|
|
|
RF output power:
|
20W
|
|
|
Spurious suppression:
|
≥50dB
|
|
|
Carrier suppression:
|
≥40dB
|
|
|
Sideband suppression:
|
≥50dB
|
|
|
Parameters of Automatic Antenna Tuner
|
|
|
|
Initial Tuning Time:
|
≤12s
|
|
|
Second Time of Tuning:
|
≤12s
|
|
For More Product Details, Click Send Inquiry And Chat With Us>>>
Xiegu has been in the HF transceiver field for more than ten years. In the past, Xiegu has brought a variety of different products to ham lovers，also gives more choices and more possibilities to those who love the HF transceiver field. If you are interested in our products , You can bookmark and share with your friends, let more people involved.
Operating Voltage of Xiegu G90 is 9.0V-15.0V DC
, w
e provide Xiegu BK300,
Xiegu BK300(DC 12V-16V) can power your
radio transceiver
and other electronic devices i
n outdoor
