Quick Details
-
Arc Current:
-
40-270A
-
Pulse Frequency:
-
50/60 Hz
-
Pilot Arc Current:
-
40-270A
-
Rated Duty Cycle:
-
60 %
-
Dimensions:
-
430*200*240mm
-
Usage:
-
WELDING
-
Voltage:
-
380V
-
Power:
-
10.6KW
-
VOLTAGE:
-
380V
-
CURRENT:
-
40-270A
-
DESIGN:
-
PORTABLE MACHINE
-
CERTIFICATION:
-
ISO
-
color:
-
yellow
-
name:
-
arc welding machine
-
function:
-
igbt mma
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DONGSEN
-
Model Number:
-
MMA-270
-
Arc Current:
-
40-270A
-
Pulse Frequency:
-
50/60 Hz
-
Pilot Arc Current:
-
40-270A
-
Rated Duty Cycle:
-
60 %
-
Dimensions:
-
430*200*240mm
-
Usage:
-
WELDING
-
Voltage:
-
380V
-
Power:
-
10.6KW
-
VOLTAGE:
-
380V
-
CURRENT:
-
40-270A
-
DESIGN:
-
PORTABLE MACHINE
-
CERTIFICATION:
-
ISO
-
color:
-
yellow
-
name:
-
arc welding machine
-
function:
-
igbt mma
Specifications
1.IGBT technology welding machine
2.Rated input Votage:220or 380V
3.Industial Performance

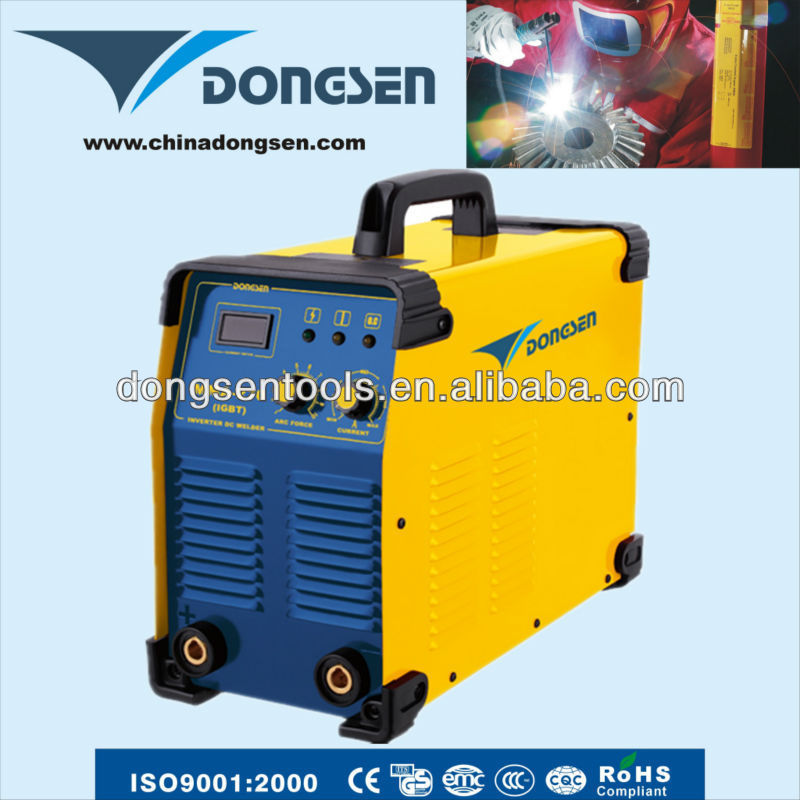

MMA-270 DC INVERTER inverter welding machine,ARC welding machine.
Features:
- Portable,Affordable,Rugged,Professional.
- The stick and Lift TIG welders have been designed and manufactured using the lastest IGBT digital inverter technology,combining both a rugged industrial constuction with excellent arc characteristics
- The light weight but solid of these machinesmakes them suitable for operation on site in conjunction with a generator or within a workshop environment,providing maximum flexibility
- Advantage point
- Provides wide range of oprations with welding range of 30-400 DC amps
- Welding capabilities of Rutile,Basic and Cellulose electrodes.
- Infinitely variable "Arc Force" and "Hot Start"
- Features "Lift TIG" with no tungsten contamination
- Full featured and user-friendly control panel
- Digital display allows precise setting of welding current
- Thermostatic overload protection
Applications:
High quality inverter portable welder,welding machine,portable welder price.Widely used on a variety of material such as mild steel,carbon steel,alloy steel
Specification:
| Item | MMA-270 |
| Rated Input Voltage(V) | 220 OR 380±15% |
| Input Frequency(Hz) | 50/60 |
| Rated Input Power(KVA) | 13 |
| No-load Voltage(V) | 60 |
| Rated Output Voltage(V) | 32.6 |
| Output Current Range (A) | 30-270 |
| Duty Cycle(%) | 60% |
| Efficiency(%) | 85 |
| Insulation Class | F |
| Protection Class | Ip21 |
| N.W.(Kg) | 13 |
| Electrode Diameter(mm) | 1.6-5.0 |
Inside picture:
Certification:CE
Free accessories:
