Quick Details
-
Model:
-
Concrete laser screed leveling machine
-
Brand:
-
Huashuo
-
Type:
-
Lead-acid Battery
-
Battery Specifications:
-
12V/140A
-
Battery Weight:
-
40kg
-
Number of Batteries:
-
5
-
Travel Motor Power:
-
4000W
-
Paving Thickness:
-
5-30cm
-
Dimensions:
-
270*115*140cm
-
Tires:
-
450-19
Quick Details
-
Weight (KG):
-
800
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Huashuo
-
Model:
-
Concrete laser screed leveling machine
-
Brand:
-
Huashuo
-
Type:
-
Lead-acid Battery
-
Battery Specifications:
-
12V/140A
-
Battery Weight:
-
40kg
-
Number of Batteries:
-
5
-
Travel Motor Power:
-
4000W
-
Paving Thickness:
-
5-30cm
-
Dimensions:
-
270*115*140cm
-
Tires:
-
450-19
|

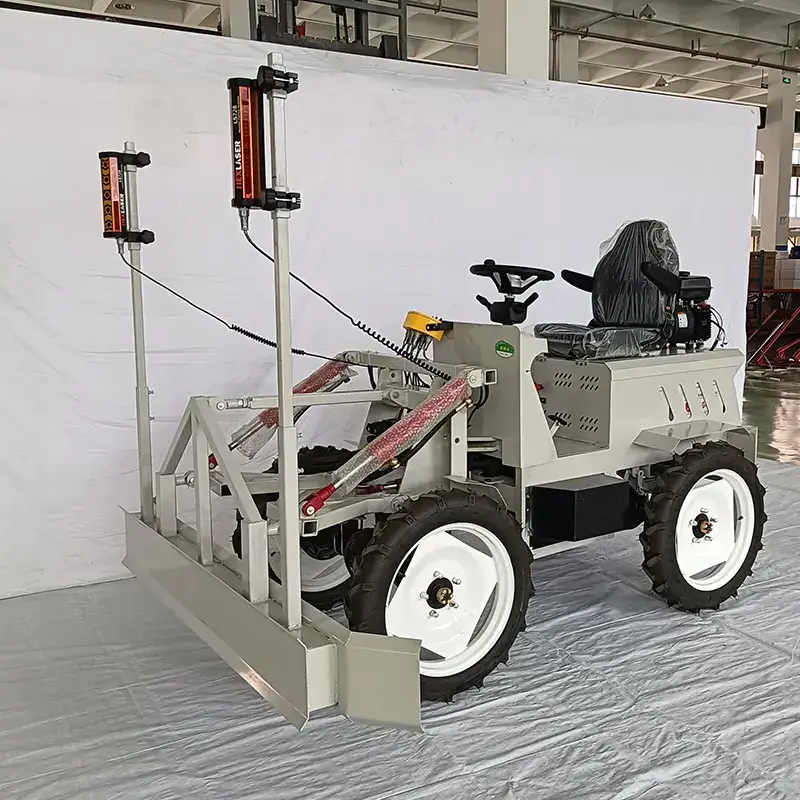

Four wheel electric cement paver leveling machine
|
|
|
|
Brand
|
Huashuo
|
|
|
Type
|
Lead-acid Battery
|
|
|
Battery Specifications
|
12V/140A
|
|
|
Battery Weight
|
40kg
|
|
|
Number of Batteries
|
5
|
|
|
Travel Motor Power
|
4000W
|
|
|
Hydraulic Pump Motor Power
|
1500W
|
|
|
Gasoline Generator Power
|
6000W
|
|
|
Transmitter Signal Range
|
250m
|
|
|
Laser System Control Effects
|
Flat Surface, Slope, Double Slope
|
|
|
Push Board Width
|
220cm
|
|
|
Push Board Height
|
25cm
|
|
|
Paving Thickness
|
5-30cm
|
|
|
Tires
|
Inflatable Tires 450-19
|
|
|
Dimensions
|
270×115×140cm
|
|
|
Other Features
|
Hydraulic Power Steering
|
|
|
|
Reinforced Semi-axle Axle
|
|
|
|
Front and Rear LED Headlights (with Turn Signals)
|
|
|
|
Built-in Weight Box
|
|
|
|
Anti-skid Ramp Handbrake
|
|
|
Four wheel laser cement paver leveling machine
|
|
|
|
Brand
|
Huashuo
|
|
|
Type
|
Diesel, Single Cylinder
|
|
|
Rated Power
|
13.2KW
|
|
|
Rated Speed
|
2200r/min
|
|
|
Engine Oil Capacity
|
3.1L
|
|
|
Cooling System
|
Water-cooled evaporative type
|
|
|
Drive Mode
|
Mechanical Four-wheel Drive
|
|
|
Steering Mode
|
Articulated Steering
|
|
|
Wheels
|
Anti-skid Tires
|
|
|
Front/Rear Wheelbase
|
1.8M
|
|
|
Minimum Turning Radius
|
2M
|
|
|
Travel Speed
|
20Km/h
|
|
|
Type
|
Laser Leveling
|
|
|
Material
|
High-quality carbon structural steel
|
|
|
Leveling Width
|
2000MM
|
|
|
Paving Method
|
Scraper Plate Material Paving, Scraping Leveling
|
|
|
Leveling Thickness
|
30mm—250mm
|
|
|
Control Precision
|
5mm
|
|
|
Control Mode
|
Microcomputer Laser Scanning
|
|
|
Laser System Brand
|
Renowned brands like Moca, Wete
|
|
|
Control Effects
|
Flat Surface, Slope, Double Slope
|
|
|
Operation Mode
|
Forward, Reverse, Gear Control
|
|
|
Steering
|
Steering Gear, Steering Wheel
|
|
|
Hydraulic System
|
Leveling Head, Steering
|
|
|
Hydraulic Pump
|
Well-known domestic brand
|
|
|
Control Valve Group
|
Well-known imported brand
|
|
|
Overall Dimensions
|
2800×1150×1500MM
|
|
|
Weight
|
800KG
|
|
|
Parameter
|
Value
|
|
Model
|
MOKA807
|
|
Horizontal Accuracy
|
20''
|
|
Vertical Accuracy
|
20''
|
|
Leveling Angle
|
5°
|
|
Scanning Speed
|
60/120/300/600 r.p.m
|
|
Directional Scanning
|
10°, 45°, 90°, 180°
|
|
Remote Control Distance
|
20 meters
|
|
Receiving Distance
|
Diameter 500 meters
|
|
Battery Continuous Working Time
|
20 hours
|
|
Operating Temperature
|
-20°C to +50°C
|
|
Protection Rating
|
IP54
|
|
Parameter
|
Value
|
|
Model
|
MOKA808
|
|
Automatic Leveling Accuracy
|
Horizontal ±20", Vertical ±20"
|
|
Automatic Leveling Range
|
±5°
|
|
Measurement Range
|
Diameter 500m (using laser detector)
|
|
Rotation Speed
|
0, 60, 120, 300, 600 r.p.m.
|
|
Directional Scanning
|
0°, 10°, 45°, 90°, 180°
|
|
Slope Setting Range
|
±5° (bidirectional)
|
|
Laser Wavelength
|
635-650nm
|
|
Laser Plummet Accuracy
|
±1mm/1.5m
|
|
Laser Class
|
Class II
|
|
Remote Control Distance
|
Approx. 20m
|
|
Operating Temperature
|
-20°C to +50°C (-4°F to +122°F)
|
|
Power Supply
|
DC 4.8-6V (lithium battery)
|
|
Continuous Working Time
|
Approx. 36 hours
|
|
Waterproof Rating
|
IP64
|
|
Size
|
160 (L) x 160 (W) x 185 (H) mm
|
|
Weight
|
3.0 kg
|
|
Parameter
|
Value
|
|
Model
|
MOKA818
|
|
Horizontal Accuracy
|
20"
|
|
Vertical Accuracy
|
20"
|
|
Slope Setting
|
±10%
|
|
Slope Accuracy
|
±20' (1mm in 10m)
|
|
Automatic Leveling Range
|
±5°
|
|
Measurement Range
|
Diameter 500m (using laser detector)
|
|
Rotation Speed
|
60, 120, 300, 600 r.p.m.
|
|
Directional Scanning
|
10°, 45°, 90°, 180°
|
|
Remote Control Distance
|
Approx. 20m
|
|
Power Source
|
Lithium-ion battery
|
|
Continuous Working Time
|
40 hours, depending on the operation
|
|
Operating Temperature
|
-20°C to +50°C (4ºF to +122ºF)
|
|
Waterproof Rating
|
IP64
|
Shandong Huashuo Machinery Manufacturing Co., Ltd. is a high-tech enterprise integrating technology research and development, manufacturing, production, sales and service, specializing in the manufacture of various types of machinery and equipment. With a workshop of more than 40,000 square meters, the head office is located in Jining, Shandong Province, the hometown of Confucius and Mencius, the origin of Confucian culture, and the production base of Chinese machinery and equipment - Jining, Shandong Province.
The company has a complete range of mechanical processing equipment, strictly implements the (ISO9001) quality assurance system, adopts advanced technology at home and abroad, and has more than 200 high-end technical R&D personnel. It mainly produces concrete laser leveling machines, frame leveling machines, Trowels, grinders, milling machines, road cutters, concrete mixer trucks, transport vehicles, concrete pumps, sliding film machines, loaders, excavators, road rollers, drilling and exploration equipment and other types of construction machinery and equipment to expand environmental protection Cleaning equipment, agricultural garden machinery and equipment, precision tool manufacturing, etc., developed more than 150 utility model technology patents, and became a large-scale pillar enterprise in the industry. , focus on results" management policy, has passed ISO9001 quality system certification and EU CE certification.
Shandong Huashuo Machinery Manufacturing Co., Ltd. has become an international company. We aim at globalization of production and have now exported to Russia, Japan, South Korea, Indonesia, Brazil, Mexico, Dubai, Australia, South Africa, the Middle East, Central Asia, Southeast Asia, the European Union, etc. More than 70 countries and regions, well received by customers, our overall user support services include pre-sales and after-sales services. On a global scale, our brand "Made by ASUS" represents the international advanced technology, which has won the trust and respect of customers, strict quality control and customer service, and responds skillfully and dedicatedly to every customer's needs. We carry out user operation and maintenance training seriously and comprehensively. We systematically and thoroughly plan the maintenance and repair training of our dealers. Choose us, you will not be disappointed, warmly welcome new and old customers at home and abroad to visit our company, guide and cooperate.
Meeting customer requirements is the goal of our work.
The pursuit of product perfection is our driving force.
Q1: What about the Minimum Order Quantity?
A1: The MOQ is 1 pcs.
Q2: What about the delivery time?
A2: 7-30 days after receving the balance payment.
Q3: What kind terms of payment can be accepted?
A3: T/T, L/C, Western Union is available.
Q4: What about after-sale service?
A4:12 months warranty for all kinds of products.
A1: The MOQ is 1 pcs.
Q2: What about the delivery time?
A2: 7-30 days after receving the balance payment.
Q3: What kind terms of payment can be accepted?
A3: T/T, L/C, Western Union is available.
Q4: What about after-sale service?
A4:12 months warranty for all kinds of products.
