Quick Details
-
Model Number:
-
HM-03ZR
-
Voltage:
-
220-240V,50Hz,1Ph.380-415V,50Hz,3Ph or customized
-
Weight:
-
90kg
-
Dimension(L*W*H):
-
995*470*1000
-
Working Temperature Range:
-
Cooling :10C~46℃, Heating :-25℃~35°℃
-

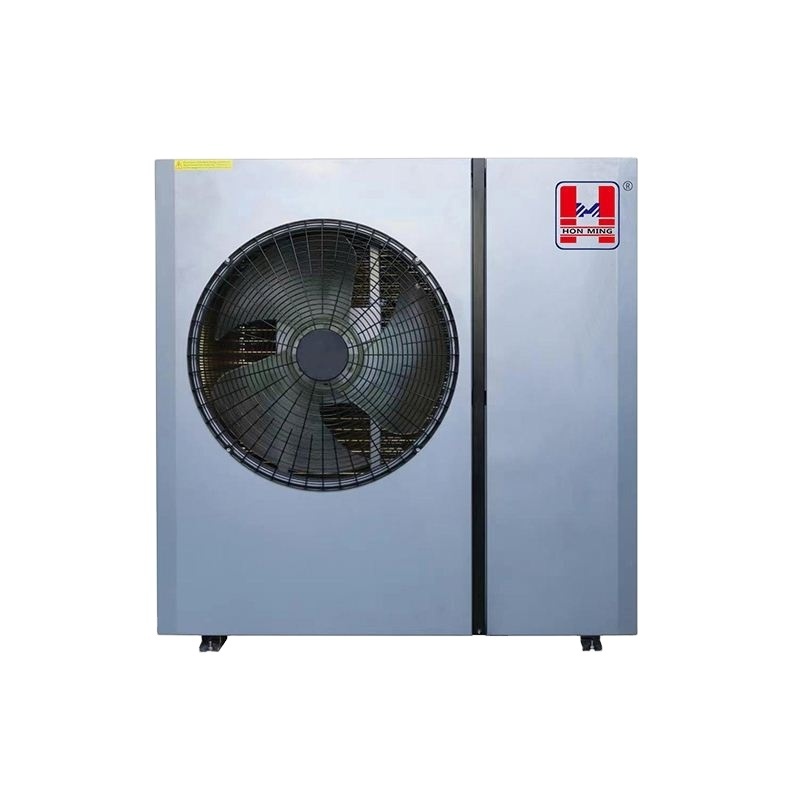

Product Name:
-
R290 Water Heat Pump Compressor
-
Model:
-
HM-03ZR
-
Refrigerant:
-
R32/R410a
-
Wight:
-
90kg Europe Air Source Home Heating Cooling R410a Inverter Heatpump
-
Size:
-
995*470*1000
-
Brand:
-
HON MING
-
Application:
-
Household, hotel, villa, office, factory, school, hospital
-
Function:
-
House Heating Cooling Hot Water
-
Heat exchanger type:
-
SWEP Plate Heat Exchanger
-
Keyword:
-
Inverter Split Type Air Source Heat Pump
Quick Details
-
Applicable Industries:
-
Household, Commercial, Swimming pool, Office, School, Factory, Hospital, Hotel
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
HON MING
-
Model Number:
-
HM-03ZR
-
Voltage:
-
220-240V,50Hz,1Ph.380-415V,50Hz,3Ph or customized
-
Weight:
-
90kg
-
Dimension(L*W*H):
-
995*470*1000
-
Working Temperature Range:
-
Cooling :10C~46℃, Heating :-25℃~35°℃
-
Product Name:
-
R290 Water Heat Pump Compressor
-
Model:
-
HM-03ZR
-
Refrigerant:
-
R32/R410a
-
Wight:
-
90kg Europe Air Source Home Heating Cooling R410a Inverter Heatpump
-
Size:
-
995*470*1000
-
Brand:
-
HON MING
-
Application:
-
Household, hotel, villa, office, factory, school, hospital
-
Function:
-
House Heating Cooling Hot Water
-
Heat exchanger type:
-
SWEP Plate Heat Exchanger
-
Keyword:
-
Inverter Split Type Air Source Heat Pump
Air source heat pump
Air source heat pump is a device that transfers a large amount of heat contained in the air to the space requiring heat by consuming a small part of electric energy. It can provide users with hot water, cooling and heating needs. It has large water volume, high water pressure and constant temperature all day. Compared with coal-fired, oil-fired and gas-fired boilers, air source heat pump can help save more than 40% of energy.
It is compatible with central hot water system, central air conditioning system, central floor heating system and central fresh air system. It creates a safe, comfortable, healthy and intelligent home environment for you in the field of cold and hot DC inverters.
The unit has the characteristics of energy saving and high efficiency. It can realize 24-hour all-weather multi-point hot water supply. Hot water is produced when it is cooled in summer, and continuous hot water is produced when it is warmed in winter. Giving you a five-star hotel experience of grade A.
It uses refrigerant R32 to reduce the impact on global warming by 75%.
DC inverter technology allows accurate consumption under actual load.The water pump with the maximum temperature of 65°C is energy-saving and efficient grade A + + + (water outlet temperature of 35°C).
It provides 100% heating capacity at - 5°C (outlet water temperature is 35°C).It provides space heating, cooling, domestic hot water and total heat solutions.It is compatible with other heat sources such as solar panels and boilers.
| The unit type | Monoblock | HM-03ZR | HM-04ZR | HM-05ZR | HM-06ZR | HM-08ZR | HM-10ZR |
| Split | HM-03FR | HM-04FR | HM-05FR | HM-06FR | |||
| Voltage |
220-240V,50Hz,1Ph
or customized |
220-240V,50Hz,1Ph
380-415V,50Hz,3Ph or customized |
380-415V,50Hz,3Ph or customized | ||||
| Rated cooling capacity | kw | 7.1 | 8.5 | 12.5 | 14.1 | 18.2 | 24.5 |
| Rated cooling input power | kw | 2.4 | 2.9 | 4.5 | 5.2 | 6.5 | 9.2 |
| Rated HW capacity | kw | 8.2 | 10.8 | 16.8 | 18.2 | 21.5 | 30.8 |
| Rated HW input power | kw | 2.4 | 3.1 | 4.9 | 5.4 | 6.3 | 9.1 |
| Rated heat capacity | kw | 5.9 | 7.8 | 12.1 | 13.1 | 15.5 | 21 |
| Rated heating input power | kw | 2.4 | 3.1 | 4.9 | 5.3 | 6.3 | 9 |
| Nominal heating input power | kw | 4.8 | 6.4 | 9.9 | 10.7 | 12.7 | 17.6 |
| Low temperature heating input power | kw | 2.33 | 3.1 | 4.8 | 5.17 | 6.1 | 8.8 |
| Refrigerant | R32/R410A | ||||||
| Weight (monoblock/split) | kg | 90/120 | 100/130 | 115/150 | 130/160 | 155/- | 165/- |
| The interface size | mm | DN25 | DN32 | ||||
| Operating range | Cooling :10C~46°C | ||||||
| Heating :-25°C~35°°C | |||||||
| Dimensions (Monoblock) | mm | 995*470*1000 | 995*470*1395 | 1200*570*1395 | |||
| Outdoor unit size (Split type) | mm | 1050*470*1000 | 1050*420*1395 | ||||
| Note Size | mm | 580*300*750 | 580*300*750 | ||||
Note:
Rated refrigeration condition: outdoor ambient dry/wet bulb temperature: 35/-, outlet water temperature: 7°C.
Rated heating condition: outdoor ambient dry / wet bulb temperature: 7/6°C, outlet water temperature: 45°C.
Nominal heating condition: outdoor ambient dry / wet bulb temperature: - 12/- 14°C, outlet water temperature 45°C.
Low temperature heating condition: outdoor ambient dry / wet bulb temperature: -20/-, outlet water temperature 45°C.
This unit can realize 3 functions:heating, cooling, hot water.
Comparison with Non-frequency Conversion Heat Pump:
More Comfortable
Inverter units adjust and constantly vary the compressor speed to maintain the desired temperature with minimal fluctuation to ensure that your comfort is not compromised.
More Energy-efficient
In inverter type air conditioners,temperature is adjusted by changing compressor frequency/motor speed without turning them ON and OFF.Therefor,the power loss of the inverter air conditioner is smaller,with can increase energy efficiency by about 35%.
Typically, around 4kW.h of energy can be captured for every 1kW.h of electrical energy expended, giving almost 5kW.h of heat energy for only 1kW.h of electrical input and giving efficiency of almost 500%.
Europe Home Heating Cooling R410a Heatpump Inverter Split Type Air Source R290 Water Heat Pump Compressor Europe Home Heating Cooling R410a Heatpump Inverter Split Type Air Source R290 Water Heat Pump Compressor
Application:
It is widely used in the places such as villas, flower heating, breeding, shopping malls, clubs, hotels, families, offices, factories, schools, and hospitals.
Europe Home Heating Cooling R410a Heatpump Inverter Split Type Air Source R290 Water Heat Pump Compressor Europe Home Heating Cooling R410a Heatpump Inverter Split Type Air Source R290 Water Heat Pump Compressor
Performance features:
a. DC inverter air source heat pump unit can operate in heating, cooling, hot water, cooling and hot water, heating and hot water modes.
b. The controller can set model parameters.
c. It has multiple temperature sensors to ensure detailed and accurate sampling of the working state of the machine, and all temperatures can be queried and displayed on the main controller.
d. Each compressor has high-voltage protection, low-voltage protection, exhaust temperature protection and current overcurrent protection to ensure reliable operation of the machine.
e. Efficient and accurate electronic expansion valve control algorithm.
f. Lack of phase and phase staggering will cause the whole machine to stop running.
g. The waterway is equipped with water flow switch, low temperature anti freezing protection and other safety measures.
h. It has the function of real-time timing on-off.
Europe Home Heating Cooling R410a Heatpump Inverter Split Type Air Source R290 Water Heat Pump Compressor Europe Home Heating Cooling R410a Heatpump Inverter Split Type Air Source R290 Water Heat Pump Compressor
Europe Home Heating Cooling R410a Heatpump Inverter Split Type Air Source R290 Water Heat Pump Compressor Europe Home Heating Cooling R410a Heatpump Inverter Split Type Air Source R290 Water Heat Pump Compressor
HONMING GROUP is the first cooling tower manufacturer in China with 90000SQM factory, which have more than 2000 staffs, 80 technicians and strong after sales system since HK1993. HON MING brand cooling tower is well-known and quality is same as America famous brand.
The company specialized in design, R&D, production and sales various cooling towers, air handling unit, air/water cooled chillers and other industrial air conditioning equipment., etc. Widely used in HVAC, petrochemical, electric power, metallurgy, machinery, air conditioning, civilian, industry, electronic and other industries.
Europe Home Heating Cooling R410a Heatpump Inverter Split Type Air Source R290 Water Heat Pump Compressor Europe Home Heating Cooling R410a Heatpump Inverter Split Type Air Source R290 Water Heat Pump Compressor
Europe Home Heating Cooling R410a Heatpump Inverter Split Type Air Source R290 Water Heat Pump Compressor Europe Home Heating Cooling R410a Heatpump Inverter Split Type Air Source R290 Water Heat Pump Compressor
Europe Home Heating Cooling R410a Heatpump Inverter Split Type Air Source R290 Water Heat Pump Compressor Europe Home Heating Cooling R410a Heatpump Inverter Split Type Air Source R290 Water Heat Pump Compressor
Europe Home Heating Cooling R410a Heatpump Inverter Split Type Air Source R290 Water Heat Pump Compressor Europe Home Heating Cooling R410a Heatpump Inverter Split Type Air Source R290 Water Heat Pump Compressor
With over 30 years manufacturing experience,we can support you with :
1 We are real manufacturer, we supply with factory and competitive price.
2 The most professional technology team support.
3 OEM&ODM Service.
4 Shipment products for checking and testing before shipment.
5 Priority to get the our latest product information after our cooperation
6 Offering professional one-on-one service and replying your E-mail within three hours
-Pre-sale services
Based on the clients' requirements, we will offer product pictures, videos, quotation,information,
engineering drawings until you satisfied with it. Warmly welcome to visit our factory.
-Sale services
1 Providing production schedule photos to ensure you know every process.
2 Our experienced technician are available on the phone also internet, the clients can get instance
guidance by telephone,email, online service anytime, anywhere.
3 Also can arrange experienced technician to clients site for installation guidance, commissioning and training etc.
-After-sale services
Normally, the equipment warranty is 12 months since installation. We will keep in touch with our clients to follow up the working condition of our machines, and offer support for maintenance.
Q1> Are you a manufacturer?
A1: Yes, we are professional cooling tower, AHU, air source heat pump manufacturer since 1993, with experienced and outstanding R&D team, production, marketing and service supplying.
Q2>What is the daily production?
A2: Daily production: around 150~255 PCS / day.
Q3>What is heat pump certification?
A3: Certification: SGS test report ., CE,CB, got ISO9001 and CCC certificate. Get ERP A+++/A++
Q4> Do you provide OEM/ODM customized service?
A4: Yes, we warmly welcome your OEM/ODM orders. We can produce standard heat pumps under your brand and according to your special needs.
Q5>Where are the heat pump export to till now?
A5: Currently the products has been exported to Western Europe, Estern Europe, North America,South America, Southeast Asia,Africa, Oceania, Mid East, Eastern Asia.
Q6>How to place an order?
A6: You can contact us via email or online service at any time, we will offer you ralated product information and help you to place an order.
Q7> How about the lead time?
A7: It will take 15-30 working days for general order. And needs to negotiated for large and customized orders.
Q8> What is your terms of payment?
A8: Payment<=10000USD, 100% in advance. Payment>10000 USD, 30% T/T in advance , 70% balance before shipment or against B/L copy.
