Quick Details
-
Model Number:
-
THCA1500
-
Output Frequency:
-
50/60Hz
-
Size:
-
357*131*65mm
-
Weight:
-
2600g
-
Rated power:
-
1500w
-
Working voltage:
-
9.5V-15.5V/20V-30V/40V-60V
-
Output wave form:
-
modified sine wave
-
Shell material:
-
aluminium alloy
-
Charger current:
-
15A
-
Warranty:
-
12 months
-
Certificate:
-
CE, RoHS
-
Application:
-
household,solar system,communication
-
Protections:
-
Low/Over-voltage, under-voltage, over load, short circui
-
Keyword:
-
1500w Transfer Switch Charger Inverter
Quick Details
-
Output Current:
-
6.82A/upon the load
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HANFONG
-
Model Number:
-
THCA1500
-
Output Frequency:
-
50/60Hz
-
Size:
-
357*131*65mm
-
Weight:
-
2600g
-
Rated power:
-
1500w
-
Working voltage:
-
9.5V-15.5V/20V-30V/40V-60V
-
Output wave form:
-
modified sine wave
-
Shell material:
-
aluminium alloy
-
Charger current:
-
15A
-
Warranty:
-
12 months
-
Certificate:
-
CE, RoHS
-
Application:
-
household,solar system,communication
-
Protections:
-
Low/Over-voltage, under-voltage, over load, short circui
-
Keyword:
-
1500w Transfer Switch Charger Inverter

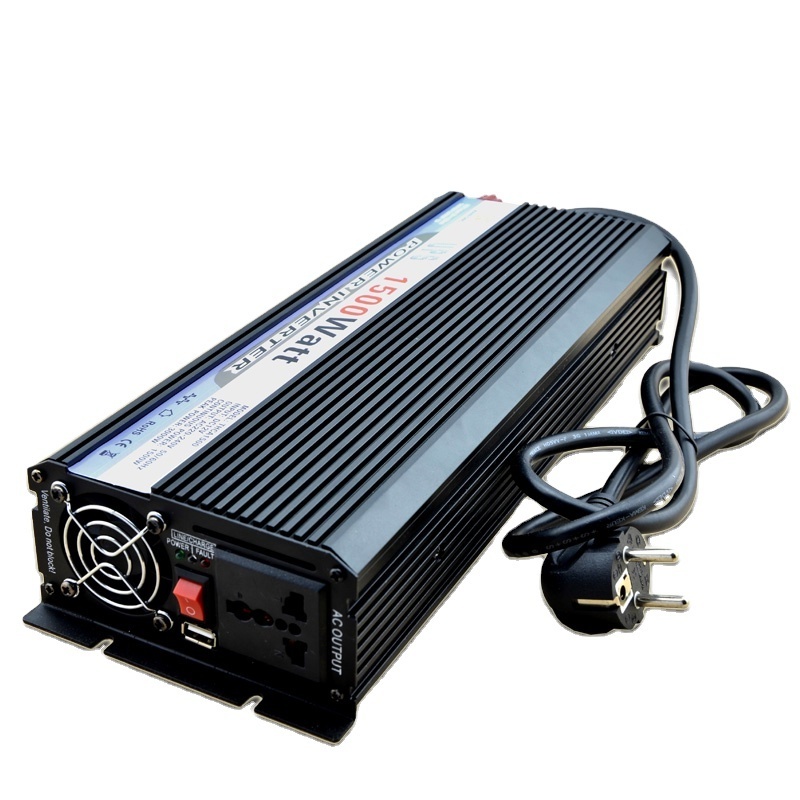

1500 Watt Power Inverter with Battery Charger and Transfer Switch
-Isolat
e
d output
-Sof t start
-Low interference technology
- Large factory, strong technical support
-USB charging port +5VDC, 800mA
- Aluminum case
- Earth ground terminal for safety
-Smart Fan
Transfer Switch Charger Inverter
This power inverter is modified sine wave inverter which converts DC power to AC power. The power inverter is used for household appliances, solar devices and telecommunication and the other equipments when no grid power is available. Its output voltage is always within 10% of rated voltage until it shutdown for overload or other reasons. The special design of circuit and tough components protect the power inverter from being easily damaged, even when the starting power of that equipment is more than 3 times of that of the inverter. Besides these advantages, THCA series power inverter also has grounding devices to improve safety and excellent component to lower interference; inner fan is intelligent and will not work until the wattage reaches 1/3 of inverter. All these designs are made to prolong its span.
| Input | Output | Package |
| Input voltage:DC 12V(24V/48V) | Continuous power:1500W | Net weight:2600g |
| Input voltage range:DC 9.5V-15.5V | Peak power:3000W | Gross weight:3000g |
| Load controlled fan : Yes | Output voltage:AC 220V/110V | Product Size:357*131*65mm |
| Fuse : 35A*6 | Output voltage Regulation : +/-10% | Packing size:400*160*125mm |
| Peak efficiency:>90% | USB Charging port:5VDC,800mA | Packaging : 10 Pcs per carton |
| Working temperature : 0-40 deg C | Output Frequency:50Hz/60Hz | Packaging carton : 560*360*370mm |
| Charger: 15A | Output wave form:Modified sine wave |
This inverter is suitable for Mobile phone ,12inch color TV, video games console, Electric light, Satellite TV receiver, CD or DVD player. HIFI, Electric fan, Notebook, 19 inch color TV, Small-medium printer, Home theater system, Power drill, Rice cooker, Small coffee machine, Refrigerator, Small microwave oven, and so on.
Over the past 19 years, we have earned many honors and certificates for company and also the products, such as Canton Fair Excellent supplier, CE, RoHS and patents certificates.
