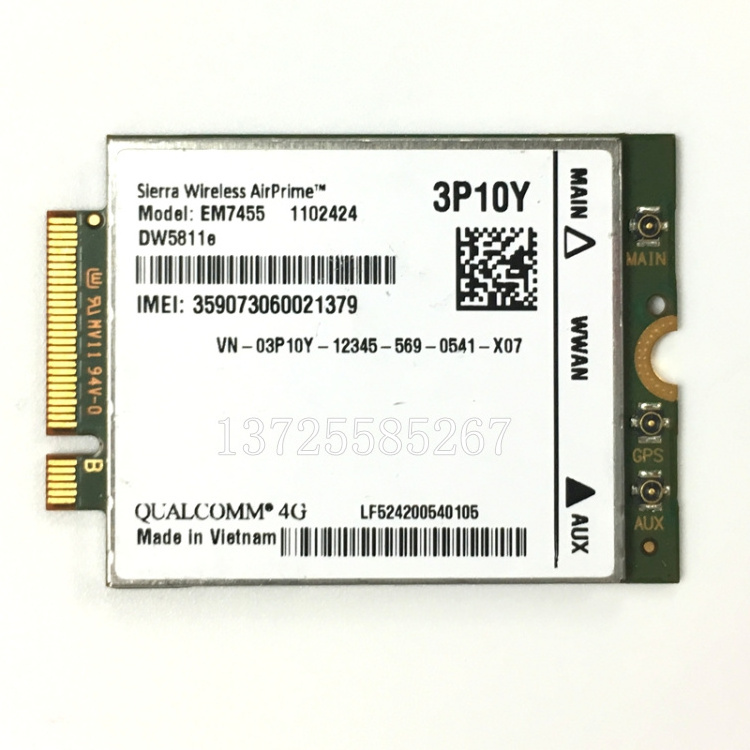

Sierra EM7455 DW5811e 4G LTE WWAN Card Module GOBI6000 3P10Y lte Module NGFF Quad-band HSDPA/UMTS/HSPA+ GPRS/EDGE/GPS

Specifications:
Sierra Wireless Airprime EM7455 Technical Specifications:

Category: 4G Module

Manufacturer: Sierra Wireless

Chipset: Qualcomm

Form Factor: PCIe M.2

Pins: 52-pin

Frequency bands

LTE FDD: Band B1-B5, B7, B12, B13, B17, B20, B25,B26, B29, B30, B41
UMTS/HSPA+: B1, B2, B3, B4, B5, B8

Technologies: UMTS,HSDPA,HSPA+,LTE

Max Download Speed: 300 Mbps

Max Upload Speed: 50 Mbps

Temperature: -10 o C to 55 o C

Certifications/Regulatory: Planned: FCC, IC, CE, NCC, GCF, PTCRB

Carriers Approved: Planned: AT&T, Verizon, Sprint, Vodafone, Telefonica, Orange

Connectors: Main, Aux/GNSS, GNSS

Satellite Systems: GPS, Glonass, Beidou, Galileo

Modes: Standalone, SUPL 2.0, XTRA 3.0

Contrl Options: APIs, AT Commands

Voltage: 1.8V

Active Antenna Control: 4 pin

Dynamic Power Control: 1 pin

Interfaces: "USB 3.0, USB 2.0 High Speed"

SIM interface: 2 x 1.8v or 3v

Audio: PCM/I2S

Other interfaces: Main Radio Disable, GNSS Disable, Flash LED Output, Wake on WAN, Reset

Dimensions: 42 x 30 x 2.3 mm

Features:
LTE Support (North America / EMEA) -B1 (2100 MHz), B2 (1900 MHz), B3 (1800 MHz), B4 (1700 MHz AWS),
B7 (800 MHz-DD), B7 (800 MHz-B), B7 (2600 MHz), B8 (900 MHz), B8 (900 MHz), VITAMIN B12
B25 (1900 MHz), B26 (850 MHz), B29 (700 MHz-D block), B30 (2300 MHz), B41

HSPA + Support Band (Global) -B1 (2100 MHz), B2 (1900 MHz), B3 (1800 MHz), B4 (1700 MHz AWS), B5 (850 MHz),
B8 (900 MHz)

Compatible with Dell:

DELL Latitude 14 7000 Series E7470 ,
DELL Latitude 12 7000 Series E7270 ,
DELL Latitude 13 7000 Series E7370
DELL Latitude 15 5000 Series E5570
DELL Latitude 14 5000 Series E5470


Note:Not support IBM/HP/Lenovo/Thinkpad laptop
