Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
XT
-
Model Number:
-
XT
-
Color:
-
Transparent, opaque/milk white
-
Item:
-
SiO2>99.99% quartz tube
-
Quartz Content:
-
Ozone Free
-
OH content:
-
20ppm/10ppm/5ppm/2ppm
-
Processing:
-
Trim Cutting, Fire Polishing
-
Condition:
-
clear,translucent , polished
Quick Details
-
Type:
-
Clear Quartz Pipe
-
Application:
-
thermocouple, led tube,heating ,vacuum
-
Outside Diameter:
-
6-80mm, 1.5-300mm
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
XT
-
Model Number:
-
XT
-
Color:
-
Transparent, opaque/milk white
-
Item:
-
SiO2>99.99% quartz tube
-
Quartz Content:
-
Ozone Free
-
OH content:
-
20ppm/10ppm/5ppm/2ppm
-
Processing:
-
Trim Cutting, Fire Polishing
-
Condition:
-
clear,translucent , polished

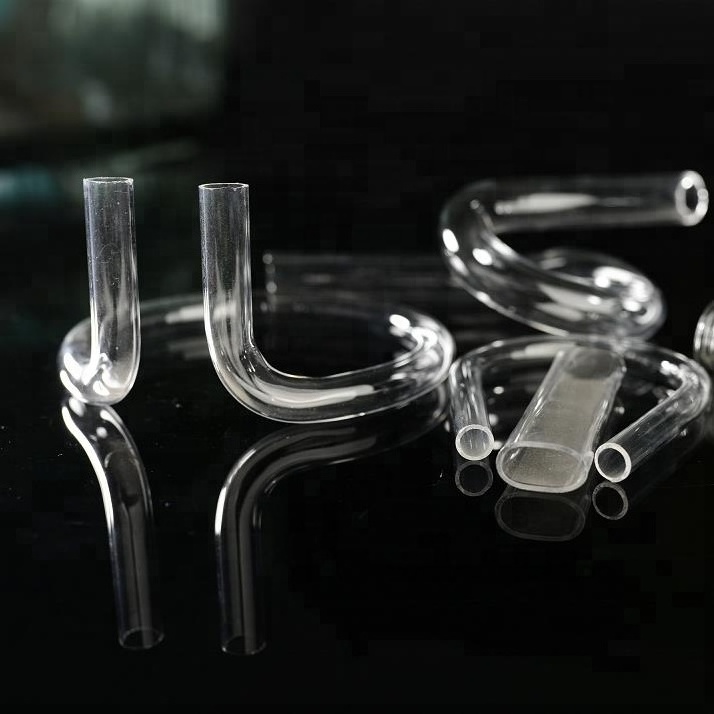

quartz manufacture supply clear u bend quartz glass tube or quartz glass pipe
Specifications
Our quartz products have the properties of high purity, strong transmission, small tolerance, etc. They are widely used in semiconductor, optical communication, industry and other fields.
Transparent 5ppm OH Quartz Glass Tubes
Product Features:
- These tubes advantages are high purity, good spectral transmission, well controlled dimension and low OH, etc.
- They're the best heat resisting material for lamps like: halogen lamps, mercury lamps, metal halide lamps, etc.
- We can produce the tubes within a very large diameter rang: OD 3-400mm, thickness wall 0.7 – 10.0mm , length maximum 3000mm.
- We also can apply some further processing like trim cutting, fire polishing, bending, pinching, grinding and others according to customers’ requirements.
- We also can control our tubes OH content within 20ppm\ 15ppm\10ppm\5ppm\2ppm as your special needs.
Dimensional Tolerance:
|
Range of OD |
OD |
WT |
Siding |
Out of Round |
Bow/1220mm |
|
≤6mm |
±2.0% |
±10% |
12% |
2.00% |
2.5mm |
|
6.00mm-15.00mm |
±1.25% |
±8% |
10% |
1.50% |
2.5mm |
|
15.00mm-20.00mm |
±1.25% |
±10% |
15% |
1.50% |
2.5mm |
|
20.00mm-25.00mm |
±1.25% |
±10% |
15% |
1.50% |
3.0mm |
|
25.00mm-30.00mm |
±1.35% |
±12% |
15% |
1.50% |
3.0mm |
|
30.00mm-80.00mm |
±1.5% |
±14% |
15% |
2.00% |
3.0mm |
Physical Property:
|
|
214 |
219 |
254 |
|
Density (g/cc) |
2.2 |
2.21 |
2.21 |
|
Coefficient of Thermal Expansion(cm/cm°C) |
5.5*10 -7 |
5.9*10 -7 |
6.7*10 -7 |
|
Softening Point (°C) |
1683 |
1660 |
1615 |
|
Annealing Point (°C) |
1215 |
1204 |
1163 |
|
Strain Point (°C) |
1120 |
1106 |
1066 |
|
Refractive Index |
1.4585 |
1.456 |
1.46 |
|
Specific Heat (j/kgOK) |
670 |
700 |
690 |
|
Compressive Strength (Pa) |
>1.1*10 9 |
0.94*10 9 |
0.55*10 9 |
|
Youngs Modulus (Pa) |
7.2*10 10 |
7.5*10 10 |
7*10 10 |
