Quick Details
-
Brand Name:
-
TIDER
-
Fork Length:
-
1520mm
-
Fork Width:
-
175mm
-
Overall Dimensions:
-
4255*2245*2850mm
-
Weight (KG):
-
14500 kg
-
Product Name:
-
Big forklift diesel 10 ton diesel forklifts
-
Brand:
-
TIDER
-
Engine:
-
ISUZU
-
Tire:
-
Solid/Pneumatic
-
Load center:
-
600mm
-
After-sales Service Provided:
-
Overseas third-party support available, Field maintenance and repair service
-
Load capacity:
-
12000kg
-
Wheelbase:
-
2800mm
-
Attachments:
-
Paper Roll Clamp
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Turkey, Peru, Spain, Japan, Morocco, Chile, Romania, Kazakhstan
-
Certification:
-
CE/ISO9001
Quick Details
-
Min. Lifting Height:
-
0mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TIDER
-
Fork Length:
-
1520mm
-
Fork Width:
-
175mm
-
Overall Dimensions:
-
4255*2245*2850mm
-
Weight (KG):
-
14500 kg
-
Product Name:
-
Big forklift diesel 10 ton diesel forklifts
-
Brand:
-
TIDER
-
Engine:
-
ISUZU
-
Tire:
-
Solid/Pneumatic
-
Load center:
-
600mm
-
After-sales Service Provided:
-
Overseas third-party support available, Field maintenance and repair service
-
Load capacity:
-
12000kg
-
Wheelbase:
-
2800mm
-
Attachments:
-
Paper Roll Clamp
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Turkey, Peru, Spain, Japan, Morocco, Chile, Romania, Kazakhstan
-
Certification:
-
CE/ISO9001

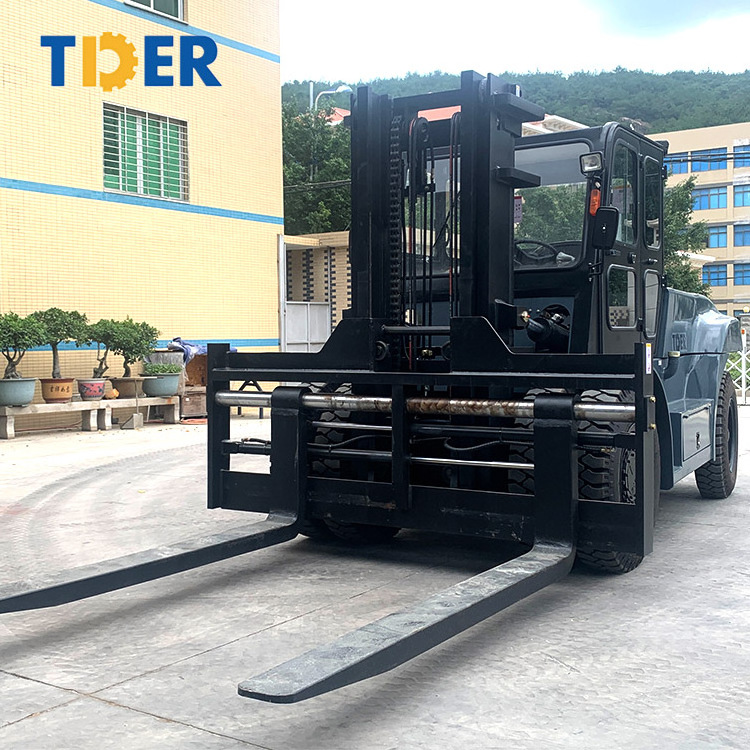

TIDER big forklift diesel 8ton 10 ton 12ton diesel forklifts with hydraulic transmission
Product Description
The specification of diesel forklifts
|
Model
|
FD70
|
FD80
|
FD100
|
FD120
|
|
Load Centre
|
600mm
|
600mm
|
600mm
|
600mm
|
|
Load capacity
|
7000kg
|
8000kg
|
10000kg
|
12000kg
|
|
Mast
|
2-stage-mast
|
2-stage-mast
|
2-stage-mast
|
2-stage-mast
|
|
Fork size
|
1220×150×70
|
1220×150×70
|
1520×175×85
|
1520×180×100
|
|
Engine
|
ISUZU
|
ISUZU
|
ISUZU
|
CUMMINS
|
|
Tire
|
Front：8.25-15-14PR
Rear：8.25-15-14PR |
Front：8.25-15-18PR
Rear：8.25-15-18PR |
Front：9.00-20-14PR
Rear：9.00-20-14PR |
Front：11.00-20-16PR
Rear：9.00-20-14 |
|
Length to face of fork
|
3565mm
|
3565mm
|
4280mm
|
4685mm
|
|
Overall Width
|
2010mm
|
2010mm
|
2170mm
|
2200mm
|
|
Overhead Guard Height
|
2430mm
|
2430mm
|
2510mm
|
2540mm
|
|
Model
|
FD150
|
FD180
|
FD250
|
|
Load Centre
|
900mm
|
900mm
|
1200mm
|
|
Load capacity
|
15000kg
|
18000kg
|
25000kg
|
|
Mast
|
2-stage-mast
|
2-stage-mast
|
2-stage-mast
|
|
Fork size
|
1820×200×100
|
1820×200×100
|
2440×250×110
|
|
Engine
|
CUMMINS
|
CUMMINS
|
VOLVO
|
|
Tire
|
Front：12.00-24-20PR
Rear：12.00-20-20PR |
Front：12.00-24-20PR
Rear：12.00-20-20PR |
Front：14.00-24
Rear：14.00-24 |
|
Length to face of fork
|
5430mm
|
5430mm
|
6855mm
|
|
Overall Width
|
2610mm
|
2610mm
|
3050mm
|
|
Overhead Guard Height
|
3020mm
|
3020mm
|
3500mm
|
Recommend Products
Our Service
After-sale Service
Tider always treat after-sale service important as the same as product quality.Tider grants our clients a
twelve-month-period or 2000-hours warranty
for any machine purchased from us.
Tider can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
