Quick Details
-
Brand Name:
-
Gxcom
-
Use:
-
FTTH,FTTB,FTTX
-
Warranty Time:
-
1 year
-
Model Numbe:
-
SFP-GX-SX
-
Applications:
-
FTTX,FTTH,ISP,WISP
-
Product name:
-
1.25G optic fiber transceiver
-
Fiber Type:
-
Single Fiber Single Mode
-
Wavelength:
-
1310/1550nm
-
Transmission Distance:
-
3KM, 20KM
-
Optical Connector:
-
SC/UPC,LC/UPC
-
Keywords:
-
fiber optic sfp transceiver
Quick Details
-
Type:
-
Optical Receiver
-
Model Number:
-
SFP-GX-SX
-
Place of Origin:
-
China
-
Brand Name:
-
Gxcom
-
Use:
-
FTTH,FTTB,FTTX
-
Warranty Time:
-
1 year
-
Model Numbe:
-
SFP-GX-SX
-
Applications:
-
FTTX,FTTH,ISP,WISP
-
Product name:
-
1.25G optic fiber transceiver
-
Fiber Type:
-
Single Fiber Single Mode
-
Wavelength:
-
1310/1550nm
-
Transmission Distance:
-
3KM, 20KM
-
Optical Connector:
-
SC/UPC,LC/UPC
-
Keywords:
-
fiber optic sfp transceiver
Product Description

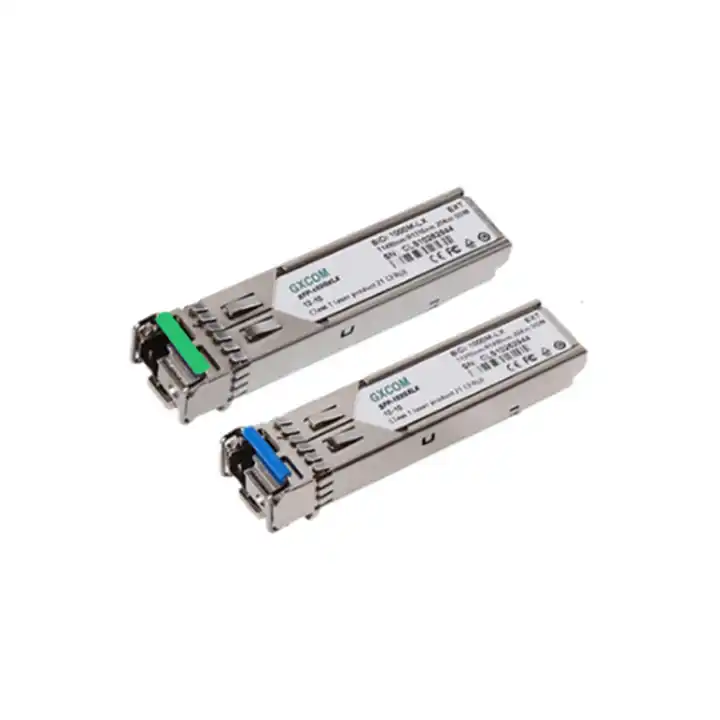

1310 1550nm 1.25G SFP Module
Introduction：
Two connector type: SC/UPC and LC/UPC
Two transmission distance: 3KM and 20KM
Product Features:
1) Single LC receptacle optical interface compliant
2) Hot-pluggable SFP footprint
3) 1310nm FP laser transmitter; 1550nm DFB laser transmitter
4) RoHS compliant and Lead Free
5) Up to 20km on 9/125um SMF
6) Metal enclosure for lower EMI
7) Single 3.3V power supply
8) Low power dissipation <600mW
9) Commercial operating temperature range: 0 to 70 degrees
10) Digital Diagnostic Monitoring optional
Applications:
l) Switch to Switch Interface
l) Gigabit Ethernet
l) Switched Backplane Applications
l) Router/Server Interface
l) Other Optical Links
Two transmission distance: 3KM and 20KM
Product Features:
1) Single LC receptacle optical interface compliant
2) Hot-pluggable SFP footprint
3) 1310nm FP laser transmitter; 1550nm DFB laser transmitter
4) RoHS compliant and Lead Free
5) Up to 20km on 9/125um SMF
6) Metal enclosure for lower EMI
7) Single 3.3V power supply
8) Low power dissipation <600mW
9) Commercial operating temperature range: 0 to 70 degrees
10) Digital Diagnostic Monitoring optional
Applications:
l) Switch to Switch Interface
l) Gigabit Ethernet
l) Switched Backplane Applications
l) Router/Server Interface
l) Other Optical Links
|
Parameter
|
Symbol
|
Min
|
Typ
|
Max
|
Unit
|
Note
|
||||||
|
Transmitter:
|
|
|
|
|
|
|
||||||
|
Input Differential Impedance
|
Rin
|
90
|
100
|
110
|
Ω
|
|
||||||
|
Single ended data input swing
|
Vin pp
|
250
|
|
1200
|
mVp-p
|
2
|
||||||
|
Transmit Disable Voltage
|
VD
|
VCC -1.3
|
|
Vcc
|
V
|
2
|
||||||
|
Transmit Enable Voltage
|
VEN
|
Vee
|
|
Vee+0.8
|
V
|
|
||||||
|
Transmit Disable Assert Time
|
Vdessert
|
|
|
10
|
us
|
|
||||||
|
Receiver
|
|
|
|
|
|
|
||||||
|
Single ended data output swing
|
Vout,pp
|
250
|
|
800
|
mv
|
3
|
||||||
|
LOS Fault
|
Vlosfault
|
VCC -0.5
|
|
VCC-host
|
V
|
5
|
||||||
|
LOS Normal
|
Vlos norm
|
Vee
|
|
Vee +0.8
|
V
|
5
|
||||||
|
Power Supply Rejection
|
PSR
|
100
|
|
|
mVpp
|
6
|
||||||
GXCOM Company
GXCOM
is an innovated enterprise which was established on 2010, starting with Ethernet extender and PoE switch. Since the establishment, we’re focusing on product R&D, quality control and after-sale service, in order to provide the most reliable products to our customers. With 10 years experiences, now we’re not just a source manufacturer of the network products, but also as a global solution supplier for telecommunication, Power Over Ethernet service and FTTH.
Our products have been exported to North America, South America, Europe, Middle East and etc. Product range covers various PoE Products, Managed/unmanaged ethernet switch, fiber optic equipment and more.
GXCOM have successfully passed the certifications of CE, FCC and RoHS. We ensure that we will meet your expectation on product quality because of strict inspection performed on each product before shipment.
GXCOM Technology is keeping growing and forward-looking all the time. Recently, we have developed new products to meet the market demands, such as Hipoe 60-90W for building lighting, 24v/48v automatic detection&adaptation PoE switch and etc.
Please don’t hesitate to contact us for any request.
Our products have been exported to North America, South America, Europe, Middle East and etc. Product range covers various PoE Products, Managed/unmanaged ethernet switch, fiber optic equipment and more.
GXCOM have successfully passed the certifications of CE, FCC and RoHS. We ensure that we will meet your expectation on product quality because of strict inspection performed on each product before shipment.
GXCOM Technology is keeping growing and forward-looking all the time. Recently, we have developed new products to meet the market demands, such as Hipoe 60-90W for building lighting, 24v/48v automatic detection&adaptation PoE switch and etc.
Please don’t hesitate to contact us for any request.
FAQ
Q1.Can we get a sample?
Yes,normally we have to charge for samples,but it’s refundable regarding the confirm batch order.
Q2.Can you offer a better price?Any discount?
Yes,surely. We’re source factory and providing reasonable price.
Q3.Do you have MOQ?
For stock products,we don't have MOQ.
For custom product,we ask for low MOQ.
Q4.OEM,ODM Severice is available?
Yes,GXCOM provide good OEM/ODM service to our customers.
Q5.How about the payment terms?
T/T,L/C at sight,western union(Deposit and Balance,full paid before shipment.)
Q6.Can you take care for the shipment?
Yes,surely GXCOM will give you different shipping proposal for selecting.
Q7.Lead time?
Sample order, 5-10 working days; Batch order, 10-25 working days regarding to actual order quantity .
Q8.What is your warranty period?
Warranty period is 12 months. This warranty does not cover damage caused by man-made damage,improper care ,negligence,normal wear tear,and force majeure such as natural disasters,earthquakes,fires ,etc.
Q3.Do you have MOQ?
For stock products,we don't have MOQ.
For custom product,we ask for low MOQ.
Q4.OEM,ODM Severice is available?
Yes,GXCOM provide good OEM/ODM service to our customers.
Q5.How about the payment terms?
T/T,L/C at sight,western union(Deposit and Balance,full paid before shipment.)
Q6.Can you take care for the shipment?
Yes,surely GXCOM will give you different shipping proposal for selecting.
Q7.Lead time?
Sample order, 5-10 working days; Batch order, 10-25 working days regarding to actual order quantity .
Q8.What is your warranty period?
Warranty period is 12 months. This warranty does not cover damage caused by man-made damage,improper care ,negligence,normal wear tear,and force majeure such as natural disasters,earthquakes,fires ,etc.
