Quick Details
-
Range of Spindle Speed(r.p.m):
-
0 - 530 r.p.m
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Nanda
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
760*460*640mm
-
Weight (KG):
-
150 KG
-
Applicable Industries:
-
Chemicals Processing, Plastics Processing, Food Processing
-
Product name:
-

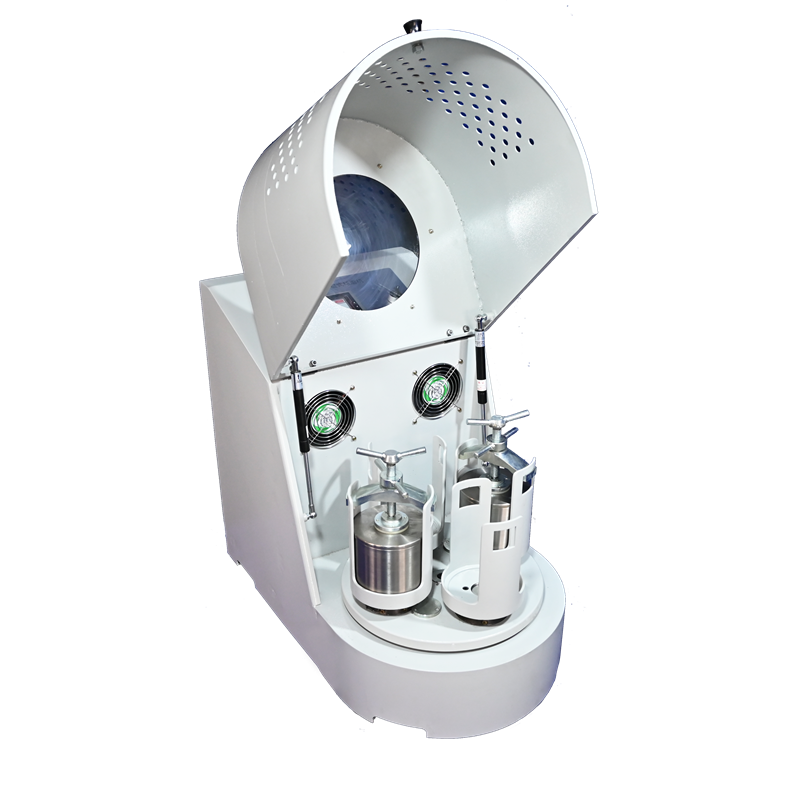

QM-3SP4 planetary ball mill
-
Place of origin:
-
Sichuan, China
-
Suitable jar volume(mL):
-
50,100,250,400,500,1000;vacuum jar≤500ml
-
Max. load:
-
Three-quarters of the volume of the jar(include grinding ball)
-
Feed granularity:
-
crisp material ≤10mm,others ≤ 3mm
-
Final granularity:
-
up to 0.1 um
-
Rotation speed:
-
Turntable 0-265 turns/min ±10%,grinding jar 0-530 turns/min±10%
-
Mode of speed control:
-
Frequency converter is 0-45Hz at a step of 1Hz.
-
Model of electrical motor:
-
YX3-90L-4 three phases AC 1.5Kw
Quick Details
-
Output (kg/h):
-
0 - 2 kg/h
-
Feeding Size (mm):
-
0 - 10 mm
-
Power (kW):
-
1.5
-
Range of Spindle Speed(r.p.m):
-
0 - 530 r.p.m
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Nanda
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
760*460*640mm
-
Weight (KG):
-
150 KG
-
Applicable Industries:
-
Chemicals Processing, Plastics Processing, Food Processing
-
Product name:
-
QM-3SP4 planetary ball mill
-
Place of origin:
-
Sichuan, China
-
Suitable jar volume(mL):
-
50,100,250,400,500,1000;vacuum jar≤500ml
-
Max. load:
-
Three-quarters of the volume of the jar(include grinding ball)
-
Feed granularity:
-
crisp material ≤10mm,others ≤ 3mm
-
Final granularity:
-
up to 0.1 um
-
Rotation speed:
-
Turntable 0-265 turns/min ±10%,grinding jar 0-530 turns/min±10%
-
Mode of speed control:
-
Frequency converter is 0-45Hz at a step of 1Hz.
-
Model of electrical motor:
-
YX3-90L-4 three phases AC 1.5Kw
Products Description
|
Product name
|
QM-3SP2
|
|
|
|
|||
|
Place of origin
|
Sichuan, China
|
|
|
|
|||
|
External size of ball mill
|
760*460*640mm
|
|
|
|
|||
|
Net weight
|
150kg
|
|
|
|
|||
|
Running mode
|
①Unidirectional, no timed stop
②Unidirectional, timed stop ③Bidirectional, timed stop ④Unidirectional with pause interval and timed stop ⑤Bidirectional with pause interval and timed stop |
|
|
|
|||
