Quick Details
-
Product name:
-

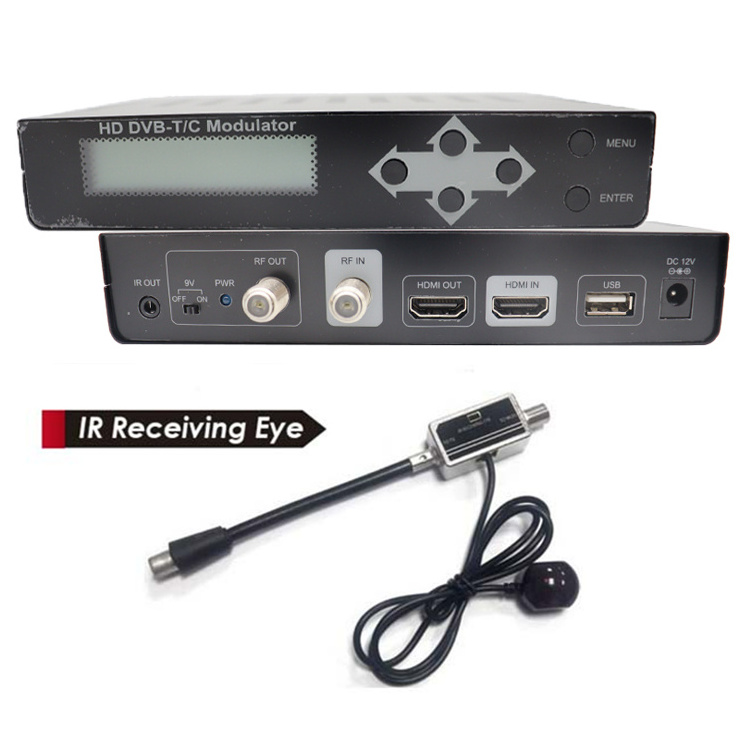

1CH 4K HD DVB-T/C Modulator
-
RF Input:
-
RF Combiner
-
Video System:
-
480i/p,576i/p,720p,1080i/p
-
RF Output:
-
RF Outputs
-
Input channel:
-
1
-
video:
-
HDMI
-
Audio System:
-
HDMI
-
Power supply:
-
100V ~240V 50/60Hz
-
DC Output:
-
12V/1A
-
Dimensions:
-
172*126*32mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GME,ODM/OEM
-
Model Number:
-
GDM-034-4(GQTM-860ELR)
-
Product name:
-
1CH 4K HD DVB-T/C Modulator
-
RF Input:
-
RF Combiner
-
Video System:
-
480i/p,576i/p,720p,1080i/p
-
RF Output:
-
RF Outputs
-
Input channel:
-
1
-
video:
-
HDMI
-
Audio System:
-
HDMI
-
Power supply:
-
100V ~240V 50/60Hz
-
DC Output:
-
12V/1A
-
Dimensions:
-
172*126*32mm
Products Description
Specification
|
Place of Origin:Guangdong,China
|
|
|
|
Model Number:GDM-034-4(GQTM-860ELR）
|
|
|
|
DESCRIPTION：HD DVB-T/C Modulator
|
|
|
|
SOURCE INPUT
|
|
|
|
·Input Channel
|
:1
|
|
|
·Video
|
:HDMI
|
|
|
·Video System
|
:480i/p,576i/p,720p,1080i/p
|
|
|
·Audio
|
:HDMI
|
|
|
COMPRESSION
|
|
|
|
·Video
|
:H.264 Baseline Profile Level 4.0
|
|
|
·Video Resolution
|
:1080p 25/ 30 Max
|
|
|
·Video Bit Rate
|
:12 Mbps Max.
|
|
|
·Audio
|
:MPEG-2/AAC
|
|
|
·Editable Field
|
:Service Name, TS ID,Network ID, Original NET ID,LCN,Network Name.
|
|
|
|
|
|
|
MODULATION
|
|
|
|
·Standard
|
:DVB-C(ETSI EN 300429V1.2.1)
|
|
|
·Constellation
|
:256QAM,128QAM,64QAM,32QAM,16QAM
|
|
|
·Symbol rate
|
:2~6.96 MSymbols
|
|
|
·Bandwidth
|
:6MHz,7MHz,8MH
|
|
|
·Standard
|
:DVB-T (ETSI EN 300744 V1.5.1)
|
|
|
·Constellation
|
:QPSK,16QAM,64QAM
|
|
|
·Guard Interval
|
:1/4,1/8,1/16,1/32
|
|
|
·Code Rate
|
:1/2,2/3,3/4,5/6,7/8
|
|
|
·FFT Carrier Mode
|
:2K,8K
|
|
|
·Bandwidth
|
:6MHz,7MHz,8MHz,7~8MHz
|
|
|
RF OUTPUT
|
|
|
|
·Type
|
:1 Multiplex DVB-T/C With a Digital TV Service
|
|
|
·Frequency
|
:177～858 MHz
|
|
|
·MER
|
:30 dB Min
|
|
|
·Output Level
|
:100 dBuV
|
|
|
·RF Level Adj
|
:0dB～-20dB
|
|
|
·Attenuation Step
|
:1dB Per Step
|
|
|
GENERAL
|
|
|
|
·POWER SUPPLY
|
:12V 1.0A ADAPTOR
|
|
|
·DISPLAY
|
:LCD panel @ 2 x16 Characters
|
|
|
·ENVIRONMENTAL FOR OPERATING
|
|
|
|
Temperature
|
:5℃-40℃
|
|
|
Relative Humidity
|
:80%@30℃
|
|
|
·DIMENSIONS
|
:172 x113 x32 mm
|
|
|
·CONFIGURATION
|
:6 Local keys on front panel
|
|
|
CONNECTIONS
|
|
|
|
·HDMIIN
|
:HDMI IN
|
|
|
·HDMI OUT
|
:HDMI Pass Through
|
|
|
·RF Output
|
:1 DVB-T/C RF Outputs
|
|
|
·DC Switch
|
:Power supply 9 volts DC for IR pass
|
|
|
·RF Input
|
:RF Combiner
|
|
|
·USB
|
:Fimware Upgrade
|
|
