Quick Details
-
Brand Name:
-
Shantui
-
Fork Length:
-
1200mm
-
Fork Width:
-
150 mm
-
Overall Dimensions:
-
4660*1995*2550mm
-
Weight (KG):
-
3600 kg
-
Name:
-
2 ton 2.5 ton 3 ton 3.5 ton 5 ton diesel forklift 4x4 forklift truck
-
Model:
-
SF30
-
Product Name:
-
Diesel Forklift Truck
-
Brand:
-
SHANTUI
-
Power type:
-
Diesel
-
Max gradeablity:
-
20%
-
Load center:
-
500 mm
-
Color:
-
Yellow
-
Keywords:
-
diesel forklift
-
Engine:
-
4C5
Quick Details
-
Min. Lifting Height:
-
170mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shantui
-
Fork Length:
-
1200mm
-
Fork Width:
-
150 mm
-
Overall Dimensions:
-
4660*1995*2550mm
-
Weight (KG):
-
3600 kg
-
Name:
-
2 ton 2.5 ton 3 ton 3.5 ton 5 ton diesel forklift 4x4 forklift truck
-
Model:
-
SF30
-
Product Name:
-
Diesel Forklift Truck
-
Brand:
-
SHANTUI
-
Power type:
-
Diesel
-
Max gradeablity:
-
20%
-
Load center:
-
500 mm
-
Color:
-
Yellow
-
Keywords:
-
diesel forklift
-
Engine:
-
4C5

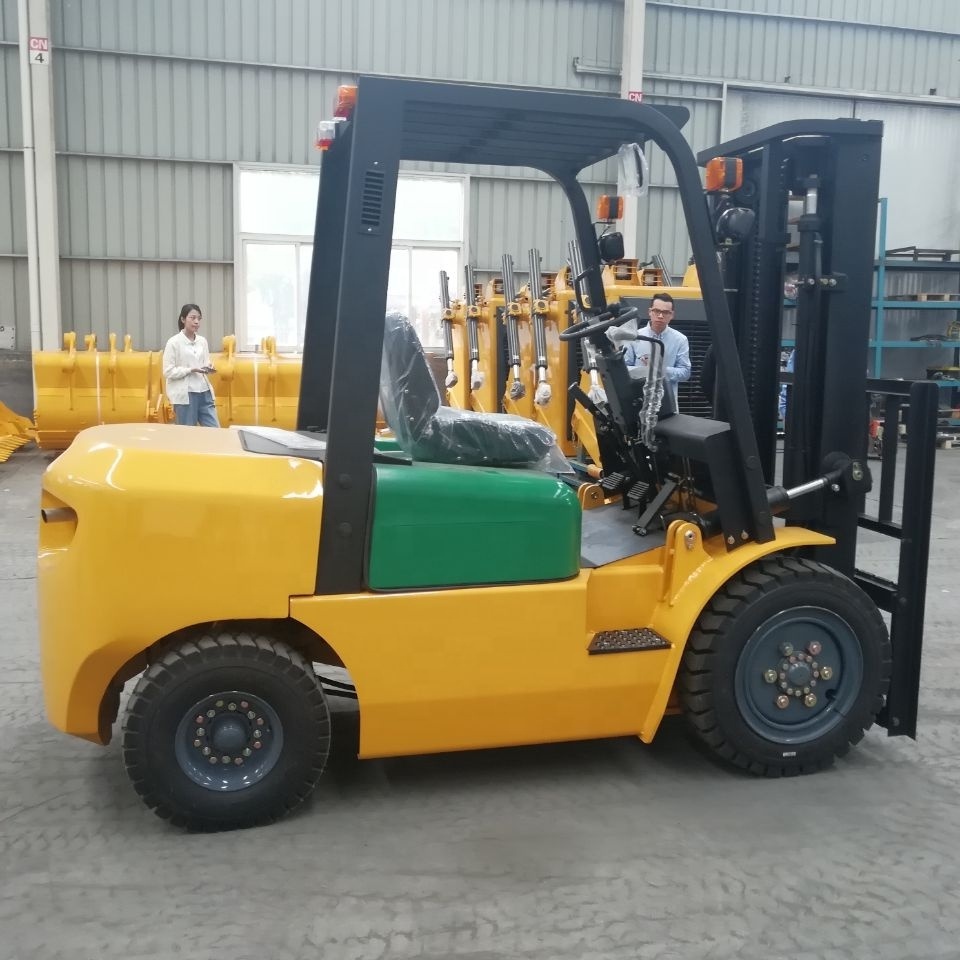

2 ton 2.5 ton 3 ton 3.5 ton 5 ton diesel forklift 4x4 forklift truck for sale
Product features
Ergonomic design by Shantui engineers includes built-in tilt cylinder and adjustable shock-absorbing seat to reduce
driver fatigue. Also the wide-field mast provides excellent operational vision.
Shock-absorbing Shantui design adopts floating overhead guard and shock-absorbing steering axle to reduce
vibration by 30% to enhance the driver operation comfort.
High quality transmission components match the hydraulic system effectively. The forklift is more efficient and
energy-saving as a result.
Shantui uses a reliable electronically monitored combination dashboard with LCD and waterproof inserted structure
wiring system to enhance safety and reliability.
| Engine | Model | ISUZU 6BG1 | |
| Rated Output | 82.4/2000 | Kw/rpm | |
| Rated Torque | 415/1500 | N·m/rpm | |
| No.of cylinder | 6 | ||
| Bore×stroke | 105x125 | mm | |
| Displacement | 6.5 | L | |
| Dimensions | Lifting Height | 3000 | mm |
| LxWxH(With/Without Fork) | 4690(3470)x1995x2500 | mm | |
| Turning radius | 3250 | mm | |
| Mast tilt angle(F/R) | ‘6/12 | Degree | |
| Performance | Travel speed(full load/no load) | 20/25 | Km/h |
| Lift speed (with /without) load | 400/500 | mm/sec | |
| Max.gradeability | 20 | % | |
| Self weight | 8120 | Kg | |
| Wheel&tires | Front | 8.25-15-14PR | |
| Rear | 8.25-15-14PR | ||
| Wheelbase | 2250 | mm | |
| Min.ground clearance(mast) | 200 | mm |
| Shipping |
By Container
2 sets per 20 feet container 5 sets per 40 feet container |
| Packing | Nude Packing,Four tires fixed |
| No. of packets | Forklift 1 set Fork 2 pcs. Tool box 1 Set |
| Measurement | 7.7CBM |
| Weight | 4350KGS |
