Quick Details
-
Brand Name:
-
HSGQ
-
Model Number:
-
HSGQ-SG105D
-
Place of Origin:
-
Guangdong, China
-
Power:
-
DC 5V
-
Ethernet:
-
5xGigabit RJ45 Ports
-
SwitchingCapacity:
-
10Gbps
-
Throughput:
-
7.44Mpps
-
Package cache:
-
3Mbit
-
MAC Address:
-
2K
-
Jumbo Frame:
-
15Kbytes
-
VLAN:
-
4K
-
Transfer Mode:
-
Store and forward
-
Total power:
-
<5W
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
10 Gbps
-
Brand Name:
-
HSGQ
-
Model Number:
-
HSGQ-SG105D
-
Place of Origin:
-
Guangdong, China
-
Power:
-
DC 5V
-
Ethernet:
-
5xGigabit RJ45 Ports
-
SwitchingCapacity:
-
10Gbps
-
Throughput:
-
7.44Mpps
-
Package cache:
-
3Mbit
-
MAC Address:
-
2K
-
Jumbo Frame:
-
15Kbytes
-
VLAN:
-
4K
-
Transfer Mode:
-
Store and forward
-
Total power:
-
<5W
Product Description

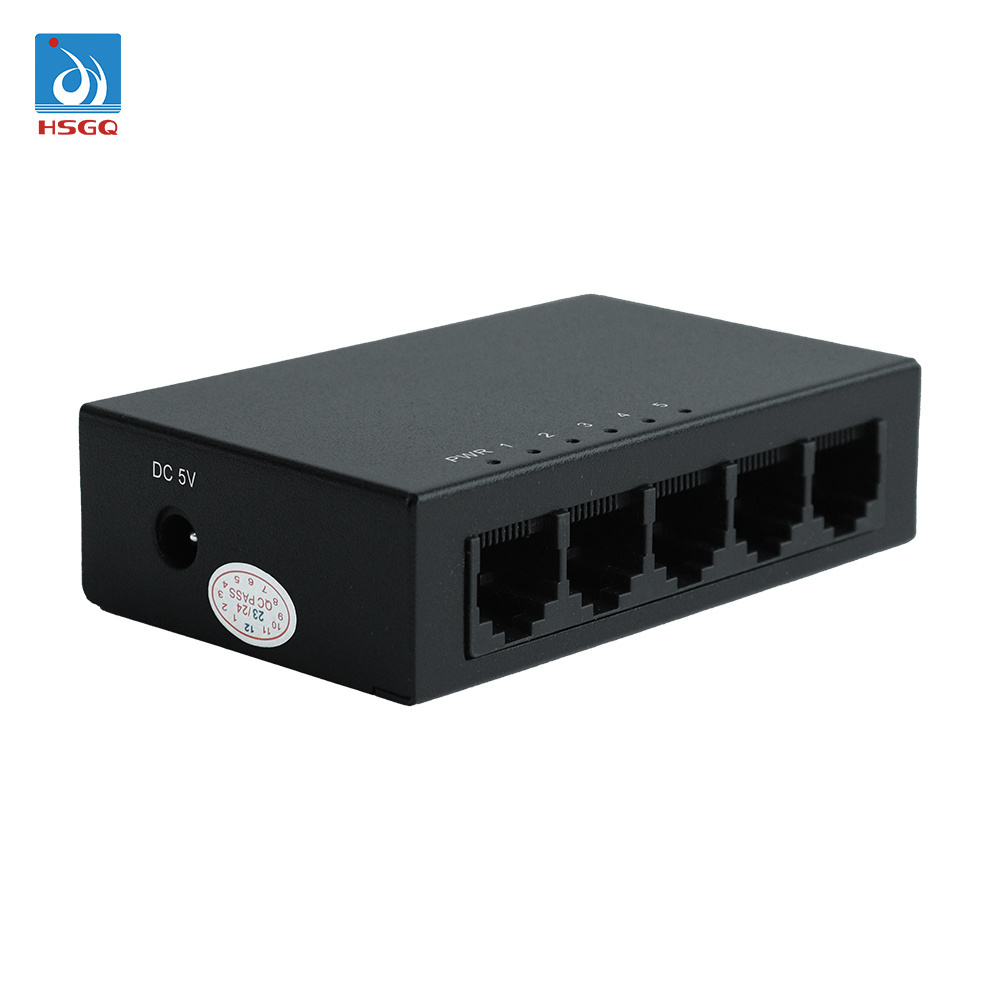

Factory Direct Sale HSGQ-SG105D 5xGigabit RJ45 Ports ethernet SWITCH with a five-port 10/100/1000Mbps adaptive switch
The 5-port gigabit intelligent ethernet switch adopts high-quality and high-speed network lCs, and this product completely solves theproblem ot noise ot small switches in the ofice environment through the fanless mute design. This switch has 5 gigabit RJ45 ports.can provide seamiess connection for 10/100/1000 ethernet. the product can be widely used in Security network video surveilancehotel, campus, small and medium-sized enterprise network engineering and other occasions.
Specification
|
Product Model
|
HSGQ-SG105D
|
|
Description
|
5 ports Ethernet Gigabit Switch
|
|
PoE Protocol
|
IEEE802.3(10Base-T)
|
|
|
IEEE802.3u(100Base-TX)
|
|
|
IEEE802.3ab(1000Base-TX)
|
|
|
IEEE802.3x(Flow control)
|
|
Network Medium
|
10Base-T: Cat3,4,5 or above UTP(<=100m)
|
|
|
100Base-TX: Cat5 or above UTP(<=100m)
|
|
|
1000Base-TX:Cat5 or above UTP(<=100m)
|
|
Working Environment
|
Working Temperature: -10~50℃
|
|
|
Storage Temperature:-20~70°C
|
|
|
Working Humidity:10%~90%non-condensing
|
|
|
Storage Temperature.5%~95%,non-condensin
|
|
Structure Size
|
Product Dimension:87x54x23mm
|
|
|
Package Dimension:90x88x58mm
|
|
|
N.W:0.13kg
|
|
|
GW:0.20kg
|
|
Packing Info
|
Out box size:470x320x380mm
|
|
|
Packing Quantity: 100PCS
|
|
|
Packing Weight:21.0KG
|
|
Operating Voltage
|
Power interface: DC 2.1
|
|
|
Switch input voltage: DC 5V1A
|
|
Total power
|
<5W
|
|
Packing list
|
Switch:1 PCS
|
|
|
User manual:1PCS
|
|
|
Warranty:1 PCS
|
|
|
Power Adapter:1 PCS
|
|
LED Indicators
|
PWR(Power indicator)
|
|
|
Link (Network Link)
|
|
PWR
|
On: power on
|
|
|
Off: no power
|
|
Link
|
On:10/100/1000M link connection is normal
|
|
|
Blinking: Data transmission is normal
|
|
|
Off: link failure
|
Scene Description
One OLT is full-service, flexible deployment,and faster business addition and adjustment, Hospital ONU plug and play, change and
connect, maint--enance free and configuration free,reducing operation and maintenance manpower
connect, maint--enance free and configuration free,reducing operation and maintenance manpower
Fiber to the home, without corridor weak currentroom save wiring,reduce air conditioning supportingfacilities and potential safety hazards, ONU provides multi port services and flexibly supportstelephone ,computer , TV ,monitoring and guest controlsystem access
ONU provides multi port services and flexibly supportstelephone ,computer , TV ,monitoring and guest controlsystem access
