Quick Details
-
Weight:
-
228 kg, 228kg
-
Production Capacity:
-
High
-
Power:
-
1.5kw, 1.5kw
-
Dimension(L*W*H):
-
1200*820*1010mm
-
Cutting length:
-
150-1500mm
-
Cutting width:
-
0~120mm
-
Cutting height:
-
0~60mm
-
Cutting angle:
-
30°~90° any angle
-
Saw blade rotation speed:
-
2800r/min
-
Saw blade specification:
-
300*30mm
-
Air pressure:
-
0.4-0.6Mpa
Quick Details
-
Warranty of core components:
-
1 years
-
Brand Name:
-
Parker
-
Voltage:
-
380V 50Hz, 380V 50Hz
-
Weight:
-
228 kg, 228kg
-
Production Capacity:
-
High
-
Power:
-
1.5kw, 1.5kw
-
Dimension(L*W*H):
-
1200*820*1010mm
-
Cutting length:
-
150-1500mm
-
Cutting width:
-
0~120mm
-
Cutting height:
-
0~60mm
-
Cutting angle:
-
30°~90° any angle
-
Saw blade rotation speed:
-
2800r/min
-
Saw blade specification:
-
300*30mm
-
Air pressure:
-
0.4-0.6Mpa
Product Description

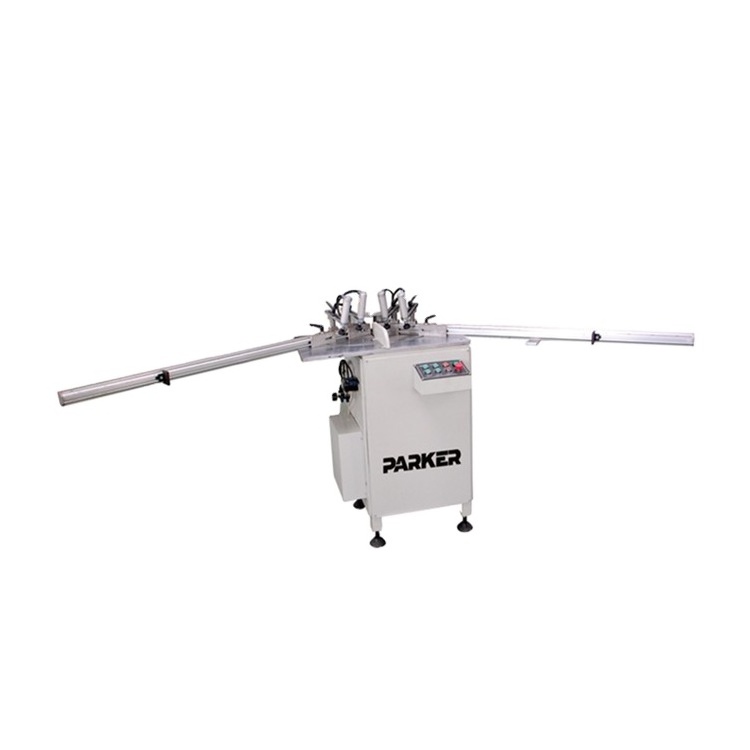

Used for cutting the fixed length of aluminium PVC window door glazing bead profile.
|
Cutting length
|
150-1500mm
|
|
|
|
|||
|
Cutting width
|
0～120mm
|
|
|
|
|||
|
Cutting height
|
0～60mm
|
|
|
|
|||
|
Cutting angle
|
30°～90° any angle
|
|
|
|
|||
|
Saw blade rotation speed
|
2800r/min
|
|
|
|
|||
|
Saw blade specification
|
300*30mm
|
|
|
|
|||
|
Power
|
1.5kw
|
|
|
|
|||
|
Voltage
|
380V 50Hz
|
|
|
|
|||
|
Air pressure
|
0.4-0.6Mpa
|
|
|
|
|||
|
Compression air pressure
|
0.3 MPa
|
|
|
|
|||
|
Air consumption
|
100L/min
|
|
|
|
|||
|
Work positioning length
|
300-1700mm
|
|
|
|
|||
|
Overall dimension
|
1200mm*820mm*1010mm
|
|
|
|
|||
|
Weight
|
228kg
|
|
|
|
|||
*
The entire machine frame is welded with high-strength rectangular tubes through multiple strength calculations and load-bearing strength analysis.
*
The entire machine frame is painted after acid cleaning, phosphating, and manual aging treatment.
*
The entire control system circuit adopts protective treatment, making maintenance operations safer.
*
The pneumatic system adopts imported pneumatic components, with a long service life and easy maintenance, and is equipped with functions such as automatic water filtration, drainage, and lubrication of the cylinder.
*
High production efficiency and automation level.
*
Adopting high-quality electrical components with high reliability.
Our Service
Pre-sales service
*
Inquiry and consultation support
*Sample testing support
*View our factory
After-sales service
*Training how to install and use the machine
*Engineers are available to service machinery overseas
