Quick Details
-
Brand Name:
-
jinzun
-
Dimension(L*W*H):
-
35m*6.6m*1.8m
-
Weight:
-
80 KG
-
Application:
-
Gold and sand suction
-
Product name:
-
jet suction dredger
-
Discharging distance:
-
according to the model
-
Engine:
-
diesel engine
-
Water flow:
-
800-8000 M3/hour
-
Color:
-
request
-
Work site:
-
river,sea,
-
Sand output:
-
100-400M3/h
-
Engine options:
-
commins weicahi
-
Price:
-
FOB
Quick Details
-
Dredging Depth:
-
15 m
-
Draught:
-
45 inch
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
jinzun
-
Dimension(L*W*H):
-
35m*6.6m*1.8m
-
Weight:
-
80 KG
-
Application:
-
Gold and sand suction
-
Product name:
-
jet suction dredger
-
Discharging distance:
-
according to the model
-
Engine:
-
diesel engine
-
Water flow:
-
800-8000 M3/hour
-
Color:
-
request
-
Work site:
-
river,sea,
-
Sand output:
-
100-400M3/h
-
Engine options:
-
commins weicahi
-
Price:
-
FOB
China Used Sand Dredging Machine Diesel Power Jet Suction Dredger Small Scale Mining Dredge for Sand Gold Panning
Product Description
1.Jet suction sand dredger designed by OCEAN Pump is the ideal solution for dredging relatively loose and free-flowing material.
2.The working principle of the jet suction sand dredger is to use high pressure water to flush the sediment through the high-pressure water gun, and meanwhile it could efficiently suck the sand by sand pump, then delivery to the destination.
3.Our advanced control system, developed in-house, ensures the highest efficiency and the lowest possible energy consumption.
4.Further benefits include reduced wear and tear on pumping equipment, a low carbon footprint and minimal noise pollution.
2.The working principle of the jet suction sand dredger is to use high pressure water to flush the sediment through the high-pressure water gun, and meanwhile it could efficiently suck the sand by sand pump, then delivery to the destination.
3.Our advanced control system, developed in-house, ensures the highest efficiency and the lowest possible energy consumption.
4.Further benefits include reduced wear and tear on pumping equipment, a low carbon footprint and minimal noise pollution.
Specification
|
Specification of jet suction dredger
|
|
|
|
|
||||
|
Model
|
JSD-150
|
JSD-200
|
JSD-400
|
JSD-500
|
||||
|
Water flow(m3/h)
|
280
|
800
|
2800
|
3000
|
||||
|
Max.dredging depth(m)
|
8
|
12
|
15
|
15
|
||||
|
Suction end
|
150
|
200
|
400
|
500
|
||||
|
Discharge end
|
100
|
200
|
300
|
400
|
||||
|
Total power(KW)
|
130
|
336
|
670
|
1000
|
||||
|
Discharge distance(m)
|
400
|
800
|
1200
|
1500
|
||||
Feathers 1. Proven design, already used by many customers around the world.
2. Dredging depth down to 20 meter.
3. Discharge distances up to 2000 meter.
4. Different sizes to suit client requirements.
5. Control box and instrument are mounted in ergonomic dash board.
6. Changeable wearing parts made of high wear resistant material.
7. Modularization of main parts. No broken, easy to disassemble and repair.
8. OEM, ODM, customization are available.
2. Dredging depth down to 20 meter.
3. Discharge distances up to 2000 meter.
4. Different sizes to suit client requirements.
5. Control box and instrument are mounted in ergonomic dash board.
6. Changeable wearing parts made of high wear resistant material.
7. Modularization of main parts. No broken, easy to disassemble and repair.
8. OEM, ODM, customization are available.
Application
This kind of jet suction sand dredger can be used in a wide variety of waterways including, but not limited to:
1. Lake Dredging
2. Pond Dredging
3. River Dredging
4. Sand Dredging
5. Gravel Dredging
6. Sediment Dredging
7. Beach Dredging
8. Inland Dredging
9. Marina Dredging
10. Harbour And Waterway Dredging
1. Lake Dredging
2. Pond Dredging
3. River Dredging
4. Sand Dredging
5. Gravel Dredging
6. Sediment Dredging
7. Beach Dredging
8. Inland Dredging
9. Marina Dredging
10. Harbour And Waterway Dredging

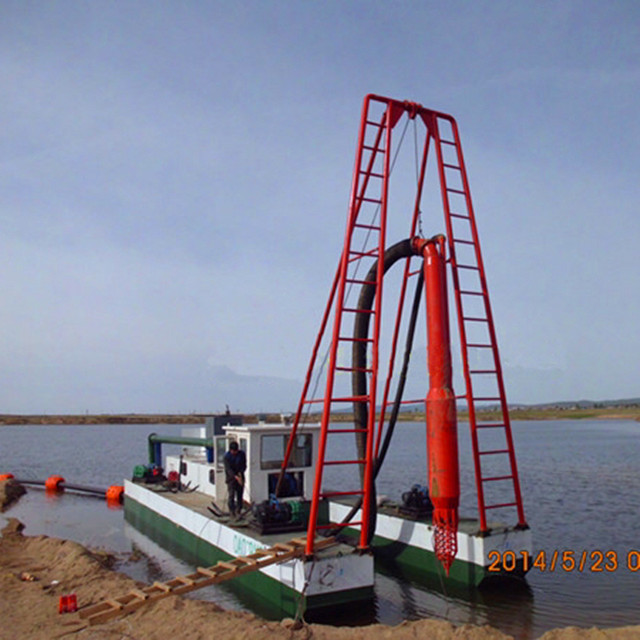

Pictures And Details
Packing & Delivery
Packing and Shipping
Delivery Time:7-30 days, depend on orders;
1,LCL : Wood case or channel steel frame with iron piece
2,FCL : Nude and firmed in container (20GP, 40GP, 40HQ)
Delivery Time:7-30 days, depend on orders;
1,LCL : Wood case or channel steel frame with iron piece
2,FCL : Nude and firmed in container (20GP, 40GP, 40HQ)
