Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
BOCN
-
Model Number:
-
hexagonal wire mesh
-
Wire Gauge:
-
2.0-4.0mm
-
Product name:
-

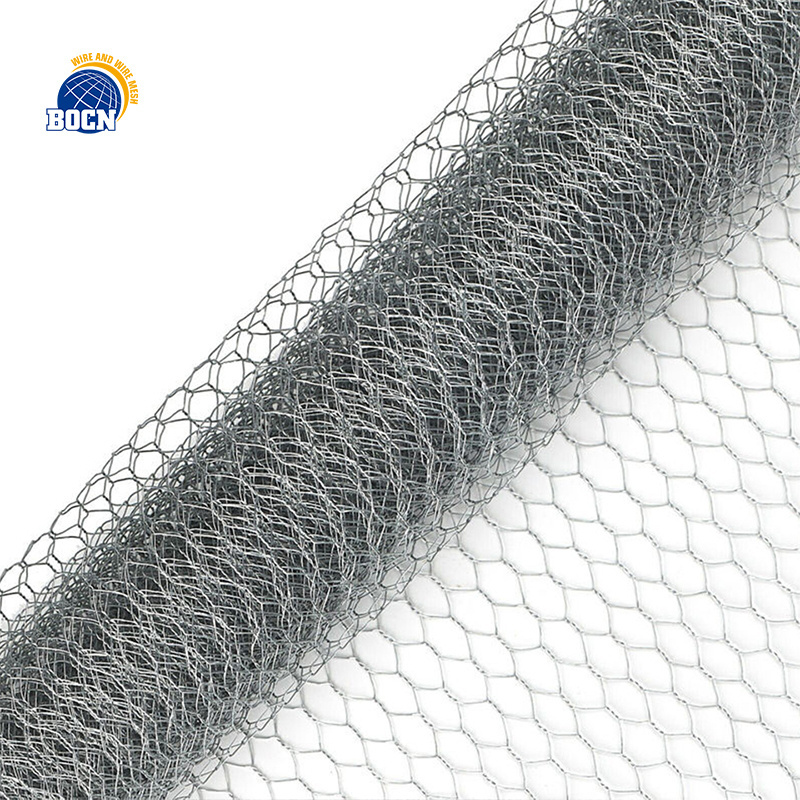

hexagoanl retaining wall wire netting
-
Surface treatment:
-
Electro or Hot Dipped Galvanized; PVC coated
-
twisted style:
-
reverse twist;normal twist
-
Usage:
-
Protect River Bank
-
Feature:
-
Anti-corrosion, oxidation resistance
-
Width:
-
0.5-2m
-
Wire diameter:
-
0.3-2.5mm
-
Packing:
-
Strand Wooden Pallet
-
Raw Material:
-
Q195 Q235 Low Carbon Steel Wire
Quick Details
-
Material:
-
Galvanized Iron Wire
-
Type:
-
HEXAGONAL MESH
-
Application:
-
Gabions
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
BOCN
-
Model Number:
-
hexagonal wire mesh
-
Wire Gauge:
-
2.0-4.0mm
-
Product name:
-
hexagoanl retaining wall wire netting
-
Surface treatment:
-
Electro or Hot Dipped Galvanized; PVC coated
-
twisted style:
-
reverse twist;normal twist
-
Usage:
-
Protect River Bank
-
Feature:
-
Anti-corrosion, oxidation resistance
-
Width:
-
0.5-2m
-
Wire diameter:
-
0.3-2.5mm
-
Packing:
-
Strand Wooden Pallet
-
Raw Material:
-
Q195 Q235 Low Carbon Steel Wire
Product Description
Specification
|
Specifications
|
|
|
Twistable wire diameter
|
|
Twistable width
|
|
||||||
|
Mesh (inch)
|
Size number (mm)
|
Limit error
|
British system number
|
Metric system wire diameter
|
British system
|
Metric system
|
||||||
|
3/8"
|
10
|
+0.5
|
BWG 27-23
|
0.41-0.64mm
|
1'-6'
|
0.1-2m
|
||||||
|
1/2"
|
13
|
-1.5
|
BWG 27-22
|
0.41-0.71mm
|
1'-6'
|
0.1-2m
|
||||||
|
5/8"
|
16
|
+1.0/-2.0
|
BWG 27-22
|
0.41-0.71mm
|
1'-6'
|
0.1-2m
|
||||||
|
3/4"
|
19
|
+1.0/-2.5
|
BWG 26-20
|
0.46-0.89mm
|
1'-6'
|
0.1-2m
|
||||||
|
1"
|
25
|
+1.5
|
BWG 25-29
|
0.51-1.07mm
|
1'-6'
|
0.1-2m
|
||||||
|
1.25"
|
31
|
-3.0
|
BWG 24-18
|
0.56-1.24mm
|
1'-6'
|
0.2-2m
|
||||||
|
1.5"
|
40
|
+2.0/-4.0
|
BWG 23-16
|
0.64-1.65mm
|
1'-6'
|
0.2-2m
|
||||||
|
2"
|
51
|
+2.0/-4.0
|
BWG 22-14
|
0.71-2.11mm
|
1'-6'
|
0.2-2m
|
||||||
|
3"
|
76
|
+2.0/-4.0
|
BWG 21-14
|
0.81-2.11mm
|
1'-6'
|
0.3-2m
|
||||||
|
4"
|
100
|
+2.0/-4.0
|
BWG 20-12
|
0.89-2.8mm
|
1'-6'
|
0.5-2m
|
||||||
|
Others can be according to customer's specific requirement to produce.
|
|
|
|
|
|
|
||||||
