Quick Details
-
Brand Name:
-
Vacorda
-
Model Number:
-
UQK
-
Name:
-
High Pressure Side Mount Horizontal Magnetic Float Level Valve Switch
-
Delivery:
-
Express, by Ship, by Air
-
Temerature:
-
-40~120℃, ≤350℃
-
Pressure:
-
PN2.5~PN160
-
Material:
-
304,316 L,1Cr18Ni9Ti, 0Cr18Ni9, 00Cr17Ni14Mo2,321, titanium
-
Connection:
-
Flange
-
Design Lifetime:
-
5-10 years
-
Switch:
-
1*SPDT
-
IP grade:
-
IP65
Quick Details
-
Grade:
-
DIY, Industrial
-
Warranty:
-
3 years
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Vacorda
-
Model Number:
-
UQK
-
Name:
-
High Pressure Side Mount Horizontal Magnetic Float Level Valve Switch
-
Delivery:
-
Express, by Ship, by Air
-
Temerature:
-
-40~120℃, ≤350℃
-
Pressure:
-
PN2.5~PN160
-
Material:
-
304,316 L,1Cr18Ni9Ti, 0Cr18Ni9, 00Cr17Ni14Mo2,321, titanium
-
Connection:
-
Flange
-
Design Lifetime:
-
5-10 years
-
Switch:
-
1*SPDT
-
IP grade:
-
IP65

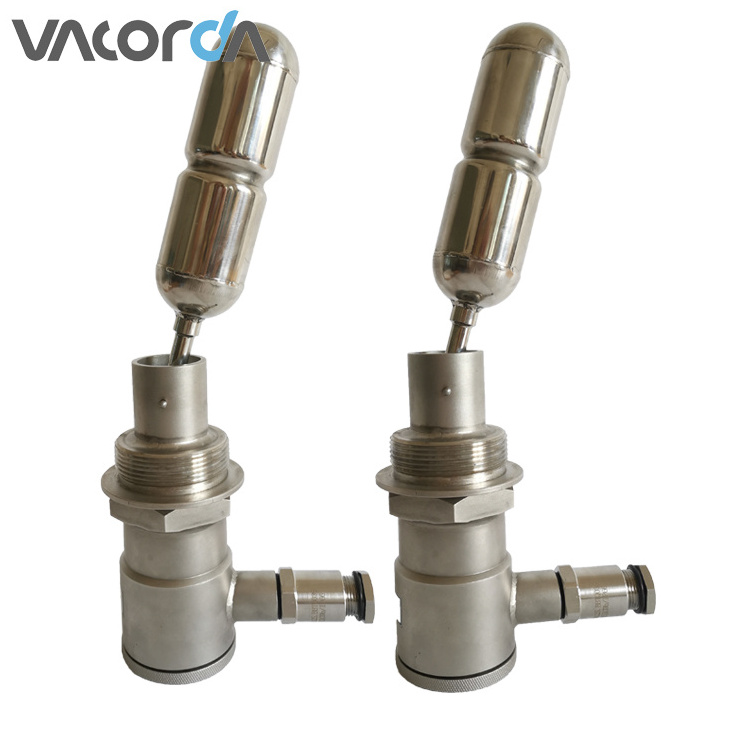

Stainless Steel High Pressure Side Mount Horizontal Magnetic Float Level Valve Switch For Diesel
Working principle
The UQK magnetic float level switch uses the principle of liquid buoyancy to make the float move up and down due to buoyancy. The micro switch in the junction box is affected by the magnet at the end of the float arm to make the actions of closed and open.
Features
1.No external power supply, passive output contact;
2.Long life span, stable and reliable operation, easy installation, almost no maintenance;
3.Applicable for all kinds of bad medium environment with density ≥0.45g/cm³;
4.Wide application range. Pressure 0~PN160, temperature -20~+200℃;
5.Anti-explosion design;
6.OEM Customization.
Main technical parameters
|
Installation type |
DN50/RF/PL HG/T 20592-2009(standard) or customized |
|
Medium Density |
> 0.45 g/cm3 |
|
Swit c h condition&Qty |
1*SPDT |
|
Switch capacity |
220VAC 200VAC(Resistive load) 220VDC 150W |
|
M aterial |
SS304(standard), SS316L |
|
Housing material |
SS304 |
|
Ambient temperature |
-20~60℃ |
|
Working temperature |
- 2 0~8 5 ℃ ; - 2 0~120℃ ; - 2 0~ 20 0℃ |
|
Working p ressure |
1.0~16MPa (can be customized when>16MPa) |
|
Electrical c onnection |
M2 0* 1.5 |
|
IP grade |
IP65 , IP67 |
|
Anti-explosion grade |
Exd Ⅱ CT6Gb |
