Quick Details
-
Type:
-
Isolator ground loop
-
Product Name:
-

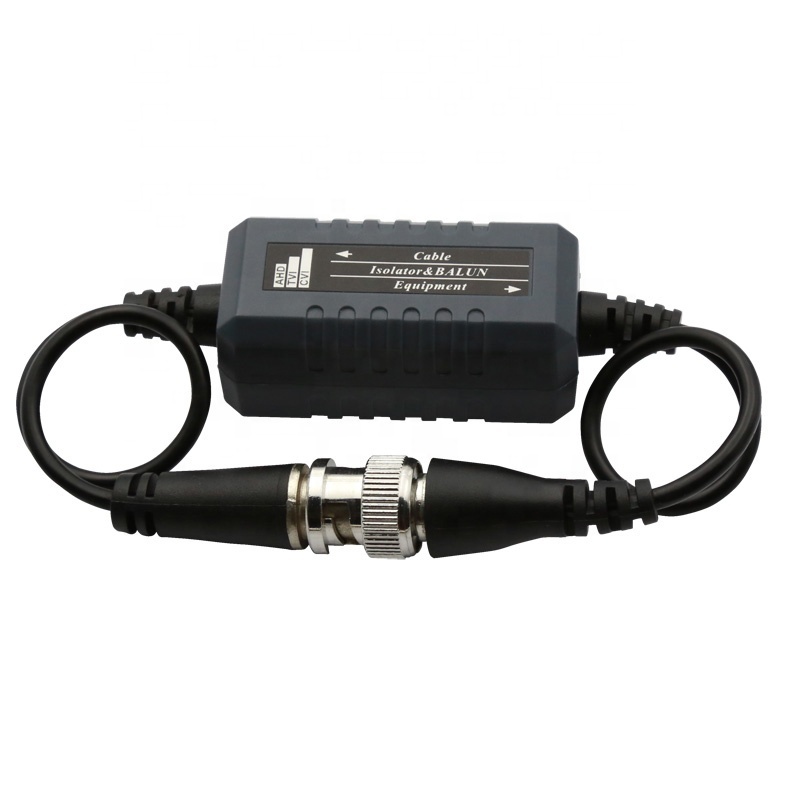

HD bnc male bnc female coaxial ground loop isolator
-
insection loss:
-
0.5DB
-
Frequency response:
-
20HZ-60Hmz +0/-4db
-
input resistence:
-
75ohm
-
output resistence:
-
75ohm
-
isolator voltage:
-
600VDC (mini)
-
Insululation resistence:
-
100M ohm
-
transient voltage suppressors:
-
12vrms
Quick Details
-
Place of Origin:
-
China(mainland)
-
Brand Name:
-
EBORM-OEM
-
Model Number:
-
GB100HD
-
Type:
-
Isolator ground loop
-
Product Name:
-
HD bnc male bnc female coaxial ground loop isolator
-
insection loss:
-
0.5DB
-
Frequency response:
-
20HZ-60Hmz +0/-4db
-
input resistence:
-
75ohm
-
output resistence:
-
75ohm
-
isolator voltage:
-
600VDC (mini)
-
Insululation resistence:
-
100M ohm
-
transient voltage suppressors:
-
12vrms
Features & Specification HD CVI TVI AHD CCTV video Ground loop isolator
1) BNC male to BNC female with mini cable 18cm on both sides.
2) Passive type, no power need.
3) High performance to eliminate ground loop problem.
4) Low video loss
5) Bandwidth: 20Hz-11MHz, +0/-30dBHD CVI TVI AHD CCTV video Ground loop isolator
6) Prevents video-signal distortion caused by video ground loops.
7) Eliminates picture tearing, cross talk and rolling.
8) Prevents power cables laid by others interfering with the CCTV system.
9) Built in video filter, perfect to work with DVR to immunity DVR interference, for extra interference rejection.
10) Built in TVS (Transient Voltage Supressors) for surge protection.
| Features | |||||||
| 1.BNC male to BNC female with mini cable 18cm on both sides | |||||||
| 2.Passive, no power required. | |||||||
| 3.Prevents video-signal distortion caused by video ground loops. | |||||||
| 4.Eliminates picture tearing, cross talk and rolling. | |||||||
| 5.Prevents power cables laid by others interfering with the CCTV system. | |||||||
| 6.Build in video flter, perfect to work with DCR to immunity DVR interference, for extra | |||||||
| 7.Built in TVS ( Transient Voltage Suppressors) for surge protection. | |||||||
| Compatible with all HD-CVI, HD-TVI, HD-AHD | |||||||
| Up to 450m for 720P CVI Cameras | |||||||
| Up to 250m for 1080P CVI Cameras | |||||||
| Up to 250m for 720P/1080P TVI Cameras | |||||||
| Up to 320m for 720P AHD cameras | |||||||
| NTSC, PAL, and SECAM video formats | |||||||
| specification | |||||||
| Item: | GB100-HD | ||||||
| insertion loss | 0.5dB | ||||||
| frequency response | 20HZ-60Mhz,+0/-4dB | ||||||
| input resistance | 75ohm | ||||||
| output resistance | 75ohm | ||||||
| Isolation Voltage | 600VDC(Min) | ||||||
| Insulation resistance | 100Mohm | ||||||
| transient Voltage Suppressors | 12Vrms | ||||||
| Dimensions(mm) | 52*26*22 with 18cm x2 cable | ||||||
| Material | ABS black | ||||||
