Quick Details
-
Production Capacity (kg/h):
-
100 - 250 kg/h
-
Brand Name:
-
SOJET
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
3400x1150x1340mm
-
Power (kW):
-
12.75
-
Weight (T):
-
1.5
-
Product Name:
-
Foam Shredder Machine
-
Keywords:
-
Sponge Cuting Machine
-
Application:
-
Waste Foam Cutting
-
Suitable for Material:
-
PU Foam/Memory Foam/Mattress..
-
After-sales Service Provided:
-
Online Technical Video Support
-
Material:
-
Steel
-
Capacity:
-
200-250kg/h
-
Cutting thickness:
-
20-140mm
-
Shredding Size of Pieces:
-
5~24 x10x10mm
-
Certification:
-
CE
Quick Details
-
Max.Production Capacity (kg/h):
-
1500
-
Place of Origin:
-
Guangdong, China
-
Machine Type:
-
Blade
-
Production Capacity (kg/h):
-
100 - 250 kg/h
-
Brand Name:
-
SOJET
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
3400x1150x1340mm
-
Power (kW):
-
12.75
-
Weight (T):
-
1.5
-
Product Name:
-
Foam Shredder Machine
-
Keywords:
-
Sponge Cuting Machine
-
Application:
-
Waste Foam Cutting
-
Suitable for Material:
-
PU Foam/Memory Foam/Mattress..
-
After-sales Service Provided:
-
Online Technical Video Support
-
Material:
-
Steel
-
Capacity:
-
200-250kg/h
-
Cutting thickness:
-
20-140mm
-
Shredding Size of Pieces:
-
5~24 x10x10mm
-
Certification:
-
CE
Product Description
Electric waste sponge crushing machine commercial foam shredder machine recycle foam grinding crushing machine price for sale

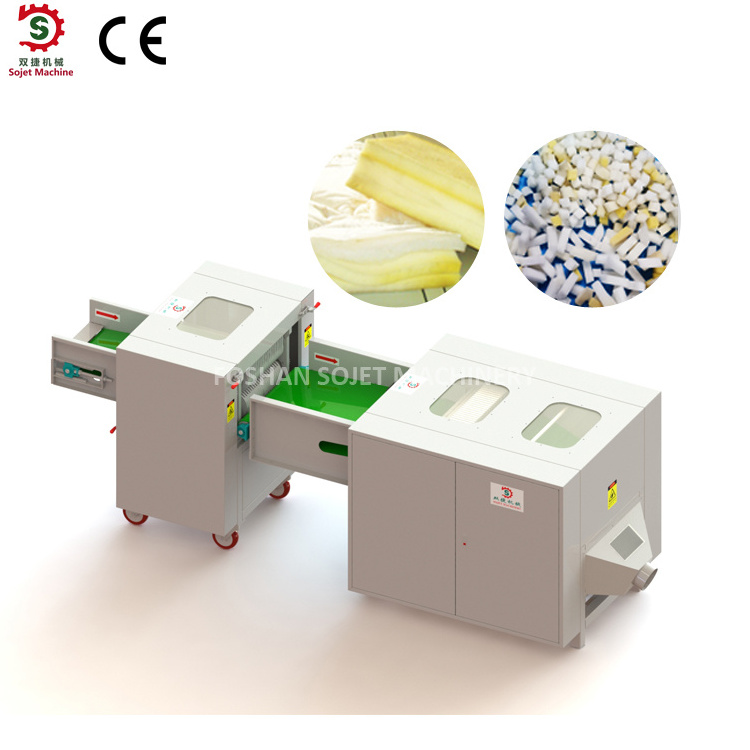

The Recycle Foam Cutting Machine is ideal for reusing waste materials, memory foam, sponge,mattress leftover and latex foam, etc. The cutting machine can cut the recycled material into regular pieces (foam sticks), so that the waste material can be fully reusing to fill pillows, cushions, toys, etc. All the materials to be processed can be placed on the foam cutter machine directly.
Technical Parameters
|
Model
|
J-20-A Two Knives
|
J-20-B Three Knives
|
||
|
Capacity
|
200-250 kg/h
|
200-250 kg/h
|
||
|
Power
|
8.75 kW
|
12.75 kW
|
||
|
Cutting Thickness
|
foam thickness <40mm
|
foam thickness <140mm
|
||
|
Foam Pieces Size (LxWxH)
|
5-24mm x 10mm x raw material height
|
5-24mm x 10mm x 10mm
|
||
|
Voltage
|
380V, 50Hz, THREE-PHASE
|
380V, 50Hz, THREE-PHASE
|
||
|
Item Weight
|
900 kg
|
1500 kg
|
||
|
Overall Dimensions
|
2100x1150x1250mm
|
3200x1150x1340mm
|
||
|
For more details, please feel free to WhatsApp me
+86-189-27258216
.
|
|
|
||
Detailed Images
Granulatation Size Adjustable
The cutting size of sponge can be adjusted by controlling the cutting speed of the knives.
The working width is 630mm, which is the largest series in the same kind of cutting machines.
Built-in with the function of automatic sharpening, the machine is with powerful cutting ability and fast cutting speed. When grinding, it can be done on the machine without dismantling.
The circular slitting cutter is with high strength and good wear resistance, with hardness of 60-62hrc. It can be used for more than 10 years without sharpening.
Each group of knife has a frequency converter to control the cutting speed. It can easily control the output and the size of the foam sticks/sponge pieces.
Once the machine is clogged, the machine will send an alarm to protect the safety of opeartor and machine.
Automatic Tension on Belt:
The machine has automatic belt tension function.In the process of using the old model, the belt is easy to deviate, which will cause blockage, belt wear and even fracture.
Our design well solves this problem, without manual belt tension and greatly reducing the failure rate and improving the production efficiency.
The leaking structure of the belt is more convenient for workers to feed and improve the production efficiency.
-- Customers feedback when they received the
Electric waste sponge crushing machine commercial foam shredder machine recycle foam grinding crushing machine price for sale
--
Memory Foam Mattress Leftover Latex Foam PU Foam/Sponge
This
Recycle Foam Cutting Machine can be connected with a Fiber Opening Machine, Blower, Mixer, Filling Machine and Weighing Table together to form a complete production line for pillows or cushions industry.
Related Products
Polyester fiber processing opening & PU foam shredding machines pillow filling production line
(Customized solution is accepted according to clients' requirements)
Transaction History
We are the professional supplier of the Trade Assurance amount guaranteed by Alibaba.
Your payment will be 100% protected.
Packaging & Delivery
Packing details for
Electric waste sponge crushing machine commercial foam shredder machine recycle foam grinding crushing machine price for sale
1. Packing with protected plastic film to avoid being scratched on the sea.
2. Standard export non-fumigation wooden crate.
3. Strength with screws & strips to protect machines during transportation.
Delivery Time: 5-7 days (semi-finished in stock) / 35-45 days (customized machinery)
