Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Original
-
Model Number:
-
AS12-QS
-
Rated voltage:
-
12kV
-
Rated current:
-
630A
-
Breaking capacity:
-
20kA/25kA
-
BCD Curve:
-
Vacuum
Quick Details
-
Breaking Capacity:
-
20kA/25kA
-
Rated Voltage:
-
12kV
-
Rated Current:
-
630A
-
Place of Origin:
-
China
-
Brand Name:
-
Original
-
Model Number:
-
AS12-QS
-
Rated voltage:
-
12kV
-
Rated current:
-
630A
-
Breaking capacity:
-
20kA/25kA
-
BCD Curve:
-
Vacuum

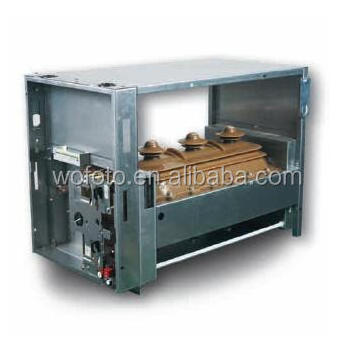

Schneider AS12-QS Schneider Vacuum Load Switch
Technical data
| Rated voltage | kV | 12 | 24 | |
| Rated current | A | 630 | ||
| Rated insulation level | -Power frequency withstand voltage | kV 50Hz,1min | 42/48 | 65/79 |
| -Lightning impulse withstand voltage | kV peak | 75/85 | 125/145 | |
| Rated short-time withstand current | kA rms/s | 20/4 or 25/2 | 20/4 | |
| Rated peak withstand current | kA/peak | 50 or 63 | 50 | |
| Rated short-circuit making current | kA | 50 or 63 | 50 | |
| Break the excitation current of no-load transformer | A | 16 | ||
| Break the no-load cable | A | 25 | ||
| Rated load breaking current | A | 31.5 | ||
| Maximum breaking transfer current | A | 1750 | 1400 | |
| Rated closed loop breaking current | A | 630 | ||
| Maximum rated current of fuse | A | 200 | 125 | |
| Mechanical endurance | switch close/open | times | 5000 | |
| switch open/earth | times | 2000 | ||
| Electrical endurance | E3 | |||
| Amblent temperature | ℃ | -40~70 | ||
| -15~40 | ||||
| Altitude above sea level | M | 1000 | ||
Options
Packing & Shipping:
Payment methods:
Samples order: Paypal or Western Union
Main order: T/T
Delivery time:
Small orders: 5-7 working days
Bulk orders:15-30 working days
