Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Canroon
-
Dimension(L*W*H):
-
548.5*747*847.5mm
-
Weight:
-
142 KG
-
Working Temperature Range:
-
0 - 788 ℃
-
Name:
-
induction heater/induction preheating machine/PWHT equipment
-
Input power:
-
40~160KVA
-
Inout voltage:
-
380-460V
-
Input freuquency:
-
50-60HZ
-
Current:
-
144-216A
-
Nductance range:
-
3.0-500u H
-
Certificates:
-
ISO CE
-
Advantages:
-
C type inductor, precise control
-
Application:
-
welding preheat, PWHT
-
Application fields:
-
steel pipes in oil and gas pipeline construction
Quick Details
-
Type:
-
Induction Heater
-
Power Source:
-
Electric
-
Voltage:
-
380v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Canroon
-
Dimension(L*W*H):
-
548.5*747*847.5mm
-
Weight:
-
142 KG
-
Working Temperature Range:
-
0 - 788 ℃
-
Name:
-
induction heater/induction preheating machine/PWHT equipment
-
Input power:
-
40~160KVA
-
Inout voltage:
-
380-460V
-
Input freuquency:
-
50-60HZ
-
Current:
-
144-216A
-
Nductance range:
-
3.0-500u H
-
Certificates:
-
ISO CE
-
Advantages:
-
C type inductor, precise control
-
Application:
-
welding preheat, PWHT
-
Application fields:
-
steel pipes in oil and gas pipeline construction
Electric induction heater is used for welding preheating and post-heating
Welding preheating and post-heating is an important application field of induction heating.The welding of steel after
preheating can reduce the stress,improve the welding strength,and prevent cracking.Post-heating is used for
dehydrogenation,annealing,tempering,normalizing and other processes.
Brand: Canroon(China manufacturer)
Power : 40, 80, 120, 160KW
Frequency :3-35kHZ
Heating temperature : can be high as 788℃
Voltage : 3 phase, 380-460v, 50/60HZ,
Suitable pipe size : 200-1200mm diameter, 25-60mm thickness,
cooling system : air cooling
Thermocouple : 6 PCS
Product advantages about Electric induction heater is used for welding preheating and post-heating?
Multi-point temperature control function,temperature rise and drop rate control
Energy control Function
High reliability ensures continuous and uninterrupted operation
According to the work piece and process requirements to customize a variety of tooling inductors including:open inductor,
frame inductor,variable radius frame inductor, belt inductor, plate inductor,flexible heating cable and so on.

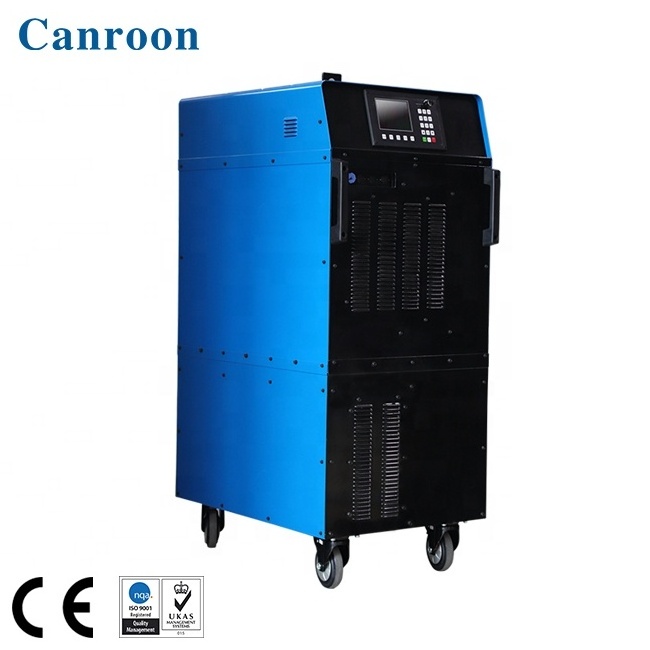

About Canroon's CR2000 series Electric induction heater is used for welding preheating and post-heating
CR2000 series medium frequency induction heating system is designed and manufactured by Canroon, specially
for using of welding preheat , post weld heat treatment (DHT dehydrogenation heat treatment, ISR intermediate
stress relief), and joint anti-corrosion coating .
Pictures of induction heater machine / pwht machine / Welding Preheat / coating removal :
Specifications of Electric induction heater is used for welding preheating and post-heating :
| Type | Input | Output | Inductance range | Dimension | Weight | IP |
| CR2000-005B-12SF |
Power:
5KVA
|
Power: 4.2kW
|
1~160uH |
W:242.9MM
|
16Kg | IP23 |
| CR2000-005B-14TF |
Power:
5KVA
|
Power: 4.5kW
|
2.2-300uH | W:263MM H:302MM D:535MM | 18.5Kg | IP23 |
| CR2000-010B-14TF |
Power:
10KVA
|
Power: 9W
|
IP23 | |||
| CR2000-040B-14TF |
Power:
40KVA
|
Power: 35kW
|
2.2-300uH | W:544MM H:762MM D:730MM | 115Kg | IP23 |
| CR2000-080B-14TF |
Power:
80KVA
|
Power: 72kW
|
3.0-500uH | W:592MM H:845MM D:801MM | 190Kg | IP23 |
| CR2000-120B-14TF |
Power:
120KVA
|
power: 108kW
|
3.0-500uH | W:592MM H:845MM D:801MM | 190Kg | IP23 |
Applications of the CR2000 series Electric induction heater is used for welding preheating and post-heating :
CR2000 is widely used and welcomed by oil&gas piping, and power plant construction & repair.
Application of shink fitting for motor stator is also very efficient.
Such as
Preheating for circular seam /
longitudinal seam welding;Preheating for joint anti-corrosion coating;Annealing ;PWHT.
Application industries : offshore platform, power station, oil and gas pipeline construction, etc
Applications : pipe welding preheat, PWHT/ post weld heat treatment, joint anti-corrosion coating, etc
Features :digital control, self-fault diagnosis, modular design, fault code feedback, high efficiency, etc
Accessories of the CR2000 series Electric induction heater is used for welding preheating and post-heating :
Our induction heater uses new technology with IGBT module, digital control, and modular design,
can be used for welding preheat, PWHT, stress relieving, etc, also efficient for joint anti-corrosion coating.
Customized Inductor of Electric induction heater is used for welding preheating and post-heating :
Canroon provide customized inductor to adapt various workpieces, and ensure easier operation and higher
working efficiency.
Apart from induction blanket (blanket type inductor), there are multiple heating inductors for choice
including induction coil/cable, C-type inductor, plate type inductor, Split-core inductor, O type inductor,
all of which are easily dismountable and reconnected to the power source. So the power source can
be used for heating workpiece of different size and shape.
