Quick Details
-
Brand Name:
-
sino truck
-
Market Segement:
-
Logistics transportation
-
Engine Capacity:
-
> 8L
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Online support
-
Size:
-
6880*2496*3350
-
Gross Vehicle Weight:
-
12840kg
-
Product name:
-
Tractor truck head
-
Engine:
-
WD615.47
-
Color:
-
White Red Yellow Blue Green
-
Tire:
-
315/80R22.5 radial tire
-
Cab:
-
HW76 long cab
-
Transmission:
-
HW19710
-
Horse power:
-
371hp/430hp
-
Driving axle:
-
HC16*2
-
Saddle:
-
90# 3.5 inches
-
Fuel tank:
-
400L
Quick Details
-
Condition:
-
New
-
Horsepower:
-
351 - 450hp
-
Emission Standard:
-
Euro 3
-
Brand Name:
-
sino truck
-
Market Segement:
-
Logistics transportation
-
Engine Capacity:
-
> 8L
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Online support
-
Size:
-
6880*2496*3350
-
Gross Vehicle Weight:
-
12840kg
-
Product name:
-
Tractor truck head
-
Engine:
-
WD615.47
-
Color:
-
White Red Yellow Blue Green
-
Tire:
-
315/80R22.5 radial tire
-
Cab:
-
HW76 long cab
-
Transmission:
-
HW19710
-
Horse power:
-
371hp/430hp
-
Driving axle:
-
HC16*2
-
Saddle:
-
90# 3.5 inches
-
Fuel tank:
-
400L
Product Description

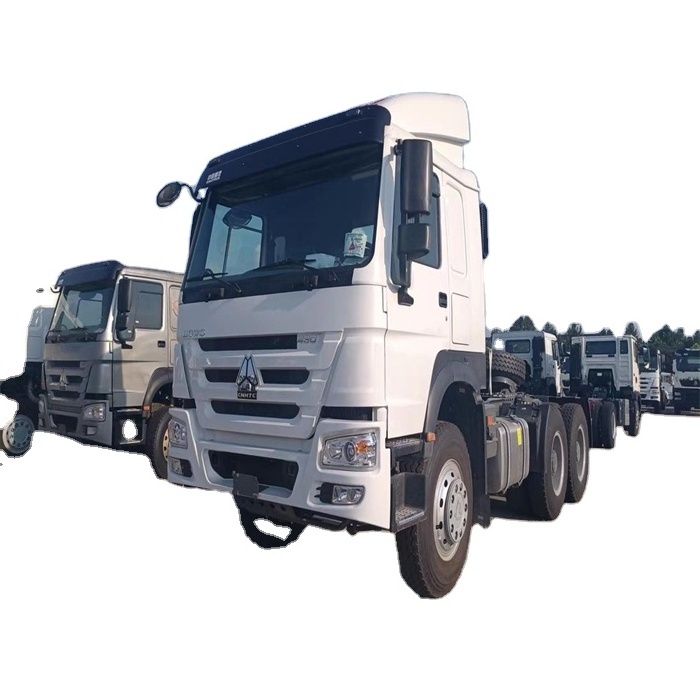

336 371 HP 6 wheels Sinotruk howo hohan 6x4 drive tractor truck head available in store
Sinotruk Howo Tractor head is famous for tough, strong, reliable and low operation costs. Widely used in dry cargo transportation, container transportation.
This SinoTruk HOWO 6X4 is directly available. The WD615.47 motor has 371 horse power. This SinoTruk has a manual HW10 gear box with 10 gears.
Specifications details
|
Item
|
|
Specifications
|
|
|
Model
|
|
SX4255HV324R
|
|
|
Driving type
|
|
6×4
|
|
|
Weight
|
Kerb mass (kg)
|
7400kg
|
|
|
|
Max weight(kg）
|
55000kg
|
|
|
Dimensions |
LxWxH (mm)
|
6880×2496×3350
|
|
|
|
Wheel base (mm)
|
3175+1350
|
|
|
Performance |
Max. speed ( km/h)
|
95
|
|
|
|
Max. grade ability(%)
|
20
|
|
|
|
Approach/Departure angle(°)
|
20/60
|
|
|
Engine |
Brand
|
WEICHAI
|
|
|
|
Model
|
WP12.430E201
|
|
|
|
Country of original
|
China
|
|
|
|
Engine structure
|
In-line 6 cylinder , 4 valve engine
|
|
|
|
Power (kw/rpm)
|
316/1900
|
|
|
|
Max. torque (N.m/rpm）
|
2000/1000-1400
|
|
|
|
Displacement (L)
|
11.596
|
|
|
|
Bore x Stroke( mm/mm)
|
125/147
|
|
|
|
Emission standard
|
Euro II
|
|
|
Clutch |
Type
|
Single plate, diaphragm spring
|
|
|
|
Diameter (mm)
|
φ-430
|
|
|
|
Action
|
Mechanical type, hydraulic and pneumatic operation
|
|
|
Transmission |
Brand
|
FAST
|
|
|
|
Model
|
12JSD200T-B （Aluminum ）
|
|
|
|
Control type
|
Manual
|
|
|
|
Gear shift
|
12-forward and 2-reverse speeds
|
|
|
|
Ratio
|
Front:15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1
Rear: 14.86/3.33 |
|
|
Axles |
Brand
|
MAN
|
|
|
|
Front axle
|
5500kg MAN Tech turning axle
|
|
|
|
Rear axle |
13000kg MAN Driving axle ,single reduction driving axle with wheel-inner differential and differential lock
|
|
|
|
Ratio
|
3.364
|
|
|
Brakes |
Type
|
Drum Brake
|
|
|
|
Service brake
|
With dual-circuit compressed air brake
|
|
|
|
Park brake
|
Power spring brake acting on rear wheel
|
|
|
|
Others
|
With engine exhaust brake
|
|
|
Steering |
Type
|
ZF Technology Right hand drive
|
|
|
Suspension
|
Front& rear multi-leaf spring
|
|
|
|
Frame
|
850x270（ 8+4）mm
|
|
|
|
Tire
|
12R22.5（10+1）pcs
|
|
|
Customer feedback/reviews
Delivery
FAQ
Are you manufacturer?
Yes, we manufactured semi trailers for more than 13 years.
Is trailer ready to ship?
Yes, we have some regular trailers in warehouse. Unless, customer need some special size and color.
How long is the shipping?.
Yuhang semi trailers production is really fast, 7-10days, the sea shipping is according to the country and boat company.
Do you guarantee quality?
Yes, we do. We confirm all our trailers are qualified after production. Yuhang has many patents and certificates which you can check in our site. You can also contact us for more pictures and vedios
