Quick Details
-
Marketing Type:
-
New Product
-
Reverse Speed(km/h):
-
26
-
Place of Origin:
-
Hunan, China
-
Dimension(L*W*H):
-
8015x2380x3050mm
-
Engine model:
-
WP6G175E301
-
Rated power/speed:
-
129(kW)/2000(rpm)
-
Max. grade ability:
-
30%
-
Maximum lift above ground:
-
450mm
-
Maximum depth of cutting:
-
630mm
-
Moldboard width X height:
-
3965X620(mm)
-
Tractive force:
-
61.3KN
-
Operating weight:
-
14500kg
-
Travelling speed forward:
-
5~36km/h
-
Travelling speed ,reverse:
-
5~26km/h
-
Certification:
-
ISO
Quick Details
-
Forward Speed(km/h):
-
36
-
Engine Brand:
-
TOP Brand
-
Working diameter:
-
3965mm
-
Marketing Type:
-
New Product
-
Reverse Speed(km/h):
-
26
-
Place of Origin:
-
Hunan, China
-
Dimension(L*W*H):
-
8015x2380x3050mm
-
Engine model:
-
WP6G175E301
-
Rated power/speed:
-
129(kW)/2000(rpm)
-
Max. grade ability:
-
30%
-
Maximum lift above ground:
-
450mm
-
Maximum depth of cutting:
-
630mm
-
Moldboard width X height:
-
3965X620(mm)
-
Tractive force:
-
61.3KN
-
Operating weight:
-
14500kg
-
Travelling speed forward:
-
5~36km/h
-
Travelling speed ,reverse:
-
5~26km/h
-
Certification:
-
ISO
Contact Way:
Contact: Ms. Adela Huang
M.P.: +86- 15800954269 (whatsapp/viber/wechat)
Email: adela @evangelchina.com

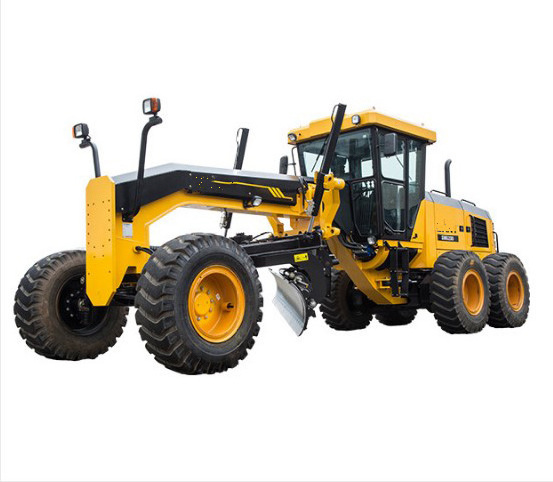

170hp Small Motor Grader STG170C-8 Mini Road Grader for sale
Tiptronic Comfortable Operation Reliable and Durable
Hydraulic drive, stepless speed change, simplified operation
The highly reliable, Euro III Dongfeng engine with auto preheat German fuel injection features extremely low exhaust emissions.
The compact structure
, small turning radius and big ground clearance ensures its flexibility.
Self-adaptive load control and steering technology eliminates frequent gear shifting and ensures high working efficiency.
mechanical differential technology allows an excellent anti-skid performance and powerful working ability.
The disc service brake, the normally closed friction disc parking brake and the hydraulic auxiliary brake ensure high safety.
Ground level refueling point and centralized electrical component locations are among the operator and service friendly features.
| Basic specification | |
| Engine model | WP6G175E301 |
| Rated power/speed | 129(kW)/2000(rpm) |
| Dimension(LxWxH) | 8015×2380×3050mm |
| Operating weight(Standard) | 14500kg |
| Performance specification | |
| Travelling speed ,forward | 5/7/12/18/26/36(km/h) |
| Travelling speed ,reverse | 5/12/26(km/h) |
| Tractive force(f=0.75) | 61.3KN |
| Max. grade ability | 30% |
| Tire inflation pressure | 300kPa |
| Working hydraulic pressure | 16MPa |
| Transmission pressure | 1.3~1.8MPa |
| Operating specification | |
| Max. steering angle of front wheels | ±49° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 16 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 6.6m |
| Biade | |
| Maximum lift above ground | 450mm |
| Maximum depth of cutting | 630mm |
| Maximum blade position angle | ±56(° ) |
| Blade cutting angle | 25 ~ 75(° ) |
| Circle reversing rotation | 360° |
| Moldboard width X height | 3965×620(mm) |
