Quick Details
-
Power:
-
3Kw
-
Min. Lifting Height:
-
100mm
-
Table Size:
-
Maximum 1200x1500mm
-
Overall Dimensions:
-
Custom To Your Needs
-
Weight:
-
1542 kg
-

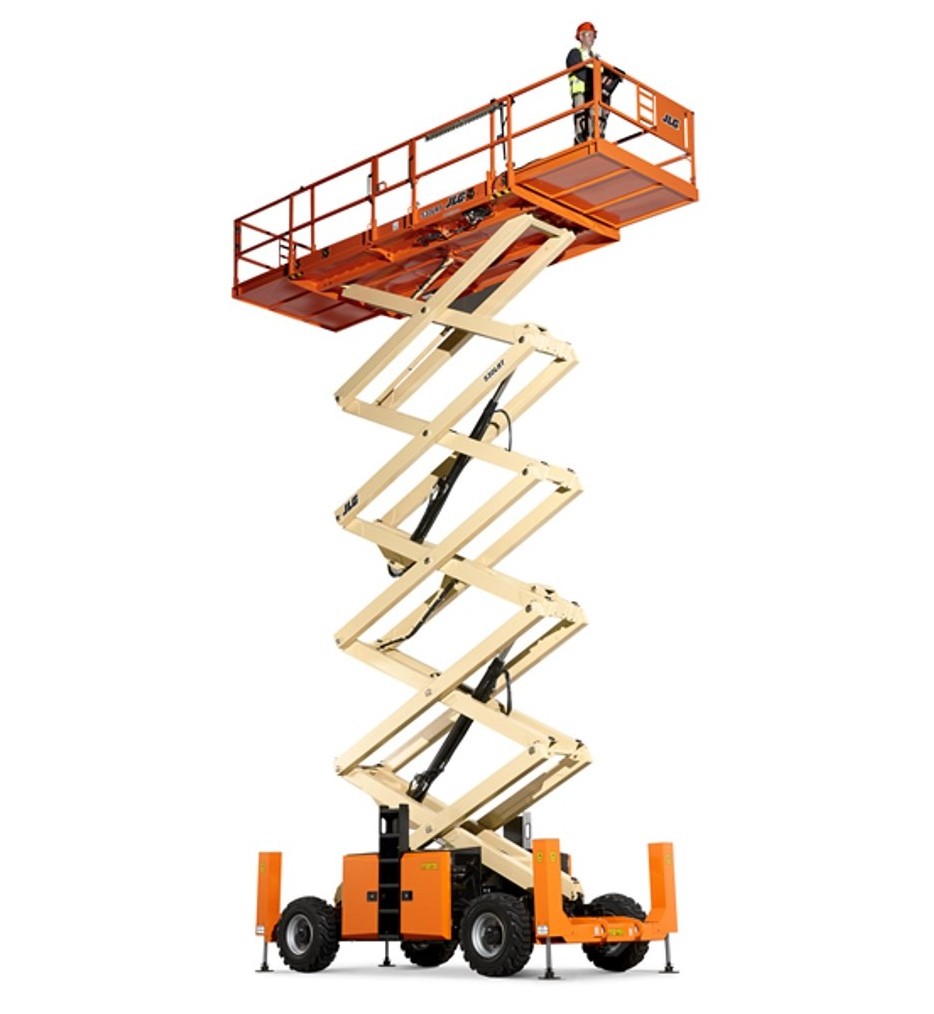

Product name:
-
Hydraulic Scissor Lift
-
Type:
-
Hydraulic Cylinder Drive
-
Keywords:
-
Hydraulic Vehicle-mounted Elevating Platform
Quick Details
-
Warranty:
-
5 years
-
Place of Origin:
-
Philippines
-
Brand Name:
-
JLG
-
Power:
-
3Kw
-
Min. Lifting Height:
-
100mm
-
Table Size:
-
Maximum 1200x1500mm
-
Overall Dimensions:
-
Custom To Your Needs
-
Weight:
-
1542 kg
-
Product name:
-
Hydraulic Scissor Lift
-
Type:
-
Hydraulic Cylinder Drive
-
Keywords:
-
Hydraulic Vehicle-mounted Elevating Platform
Key Features
•Lower horsepower engine for better fuel
efficiency
•Standard 1.22 m (4 ft) deck extension gives
more space for people and materials
•Standard oscillating axle for improved
terrainability
Key Specs
•Platform Height: 16.20 m / 53.1 ft
•Machine Width: 2.31 m / 7.6 ft
•Platform Capacity: 680 kg / 1499.1 lb
•Working Height: 18.15 m / 59.5 ft
Batteries NA
Capacity - Fuel Tank 83.30 L / 22 gal.
Engine Type - Diesel Kubota D1305- E4B,18.5 kW (25
hp)
Capacity - Hydraulic Reservoir 121.42 L / 32.1 gal.
Machine Weight (ANSI Export and CSA) 7711 kg / 16999.8 lb
Machine Weight (CE and GOST) 7995 kg / 17626 lb
Oscillating Axle - 4x4 Standard / Standard
Drive Speed - Platform Elevated 0.80 km/h / 0.5 mph
Drive Speed - Platform Lowered 5.60 km/h / 3.5 mph
Gradeability 40 %
Lift Time 65 sec.
Lower Time 60 sec.
Maximum Drive Height 9.14 m / 30 ft
Platform Capacity 680 kg / 1499.1 lb
Platform Capacity - Extension 230 kg / 507.1 lb
Turning Radius - Inside 4.04 m / 13.3 ft
Turning Radius - Outside 6.02 m / 19.8 ft
Ground Clearance 0.3 m / 1 ft
Machine Height 3.20 m / 10.5 ft
Machine Height - Rails Folded 2.36 m / 7.7 ft
Machine Length 4.88 m / 16 ft
Machine Width 2.31 m / 7.6 ft
Platform Dimension A 1.81 m / 5.9 ft
Platform Dimension B 3.96 m / 13 ft
Platform Extension Length 1.14 m / 3.7 ft
Platform Height 16.20 m / 53.1 ft
Platform Height - Lowered 2.13 m / 7 ft
Platform Railing Height 1.10 m / 3.6 ft
Tire Size (ANSI Export and CSA) 12 x 16.5 FF
Tyre Size AUS 12 x 16.5 FF
Tyre size 12 x 16.5 FF
Wheelbase 2.97 m / 9.7 ft
Reach Specifications
Platform Height 16.20 m / 53.1 ft
Working Height 18.15 m / 59.5 ft
