Quick Details
-
Output Speed:
-
94 r/min
-
Warranty:
-
1 year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DX
-
Name:
-
winch drive reducer
-
Usage:
-
12 ton crane winch
-
Input Form:
-
Hydraulic Motor
-
Gears Style:
-
2-stage planetary gears
-
Application:
-
crane, truck cranes, aerial truck, etc
-
Customization:
-
acceptable
-
Mounting Position:
-
customer require
-
Ratio:
-
33
-
Line pull (4th layer):
-
27 KN
-
Rope capacity:
-
145 m
-
Certification:
-
ISO
Quick Details
-
Gearing Arrangement:
-
Planetary
-
Output Torque:
-
5800 Nm
-
Input Speed:
-
3100 r/min
-
Output Speed:
-
94 r/min
-
Warranty:
-
1 year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DX
-
Name:
-
winch drive reducer
-
Usage:
-
12 ton crane winch
-
Input Form:
-
Hydraulic Motor
-
Gears Style:
-
2-stage planetary gears
-
Application:
-
crane, truck cranes, aerial truck, etc
-
Customization:
-
acceptable
-
Mounting Position:
-
customer require
-
Ratio:
-
33
-
Line pull (4th layer):
-
27 KN
-
Rope capacity:
-
145 m
-
Certification:
-
ISO

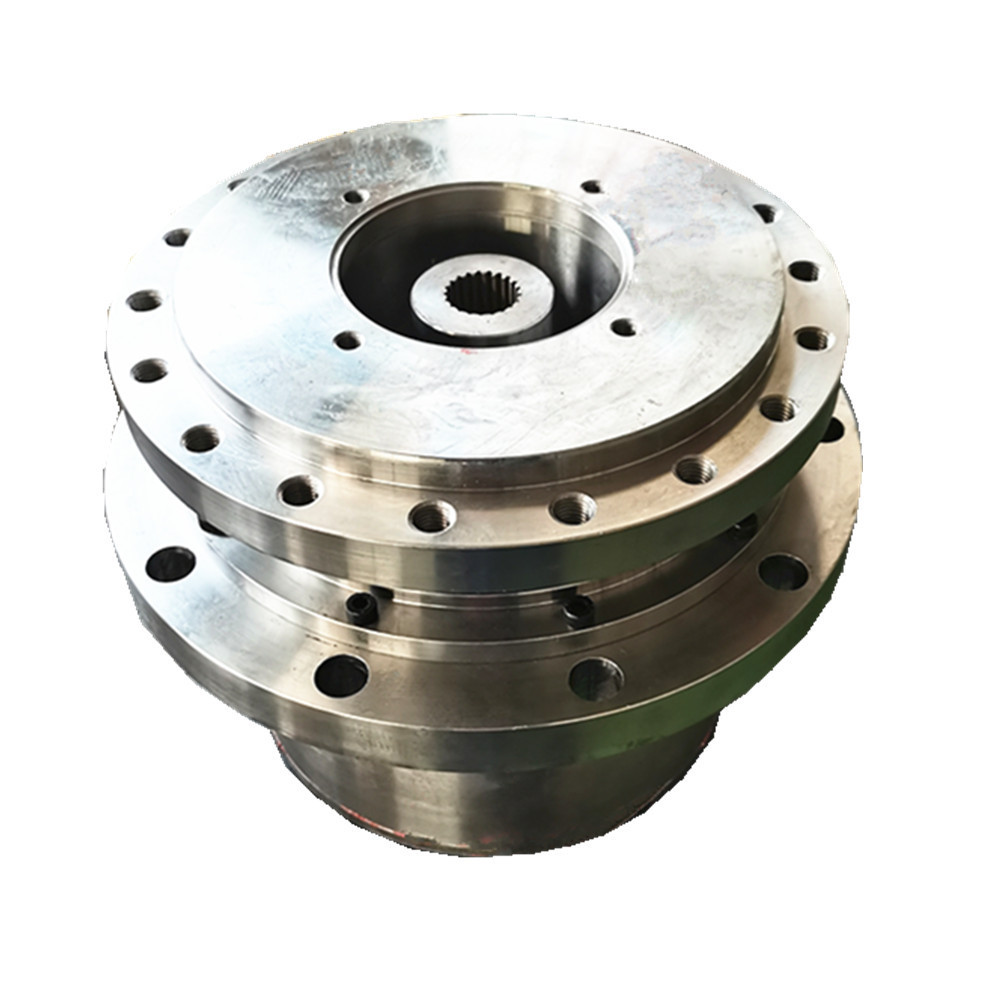

small planetary reduction speed reducer gearbox for 12 ton crane winch
Product Description
Daixin planetary reducer gearbox is designed with large torque, high start and transmission efficiency, low-speed stability, compact radial size, low noise, etc.
The main devices we are making are walking reducers, lifting reducers and swing reducers.
They are widely used for vehicle cranes, crawler cranes, truck mounted cranes, marine cranes, aerial work trucks, excavators, etc.
Main features:
1)Compact size
2)Low noise
3)High transmission efficiency
4)Good working condition under lower speed
5)Customized hydraulic motors and brakes for different request
6)One Year Warranty from reception
|
model
|
DQ6B33E
|
|
name
|
Winch drive
|
|
Rated Line Pull
|
lifting winch reducer
|
|
Pulling force
|
5800 Nm
|
|
Torque
|
33:1 or customer require
|
|
Rope capacity
|
Hydraulic Motor
|
|
Rope diameter
|
2-stage planetary gears
|
|
Application
|
crane, truck cranes, aerial truck, etc
|
|
Winch power
|
acceptable
|
|
Clutch
|
customer require
|
