Quick Details
-
Model Number:
-
12V10A
-
Place of Origin:
-
China
-
Product name:
-
Intellegent Lead-acid Battery Charger
-
Connector:
-
Current Protection
-
Output:
-
12V/24V
-
Application:
-
Electric Vehicle E-bike Scooter
-
Package:
-
Customized Package
-
Power:
-
15W/10W/7.5W/5W Automatic Identification
-
Feature:
-
Fast Charging Speed
-
OEM/ODM:
-
Accept OEM Orders
-
Warranty:
-
12 Months
-
Charging efficiency:
-
90%
Quick Details
-
Type:
-
Electric, Power Supply Adapter, CAR CHARGER, Fast Charger
-
Port:
-
DC, AC
-
Brand Name:
-
UW-WONG
-
Model Number:
-
12V10A
-
Place of Origin:
-
China
-
Product name:
-
Intellegent Lead-acid Battery Charger
-
Connector:
-
Current Protection
-
Output:
-
12V/24V
-
Application:
-
Electric Vehicle E-bike Scooter
-
Package:
-
Customized Package
-
Power:
-
15W/10W/7.5W/5W Automatic Identification
-
Feature:
-
Fast Charging Speed
-
OEM/ODM:
-
Accept OEM Orders
-
Warranty:
-
12 Months
-
Charging efficiency:
-
90%

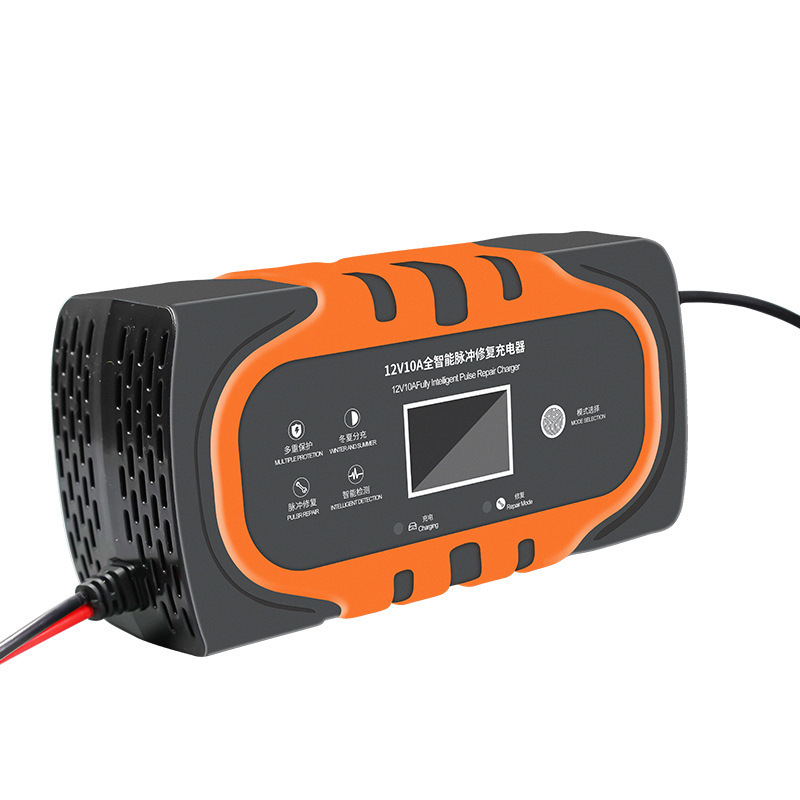

Portable 12V 10A 15A Smart Battery Charger Trickle Charger for Car,&Motorcycle AGM Gel SLA Wet Sealed Lead Acid Battery Charger
|
Name |
Intelligent 1 2V 10A lead acid battery charger |
|
Mode |
1210A |
|
Input |
110Vac or 220Vac |
|
Output |
14.7V Float charge voltage:13.8V (for 12V lead acid battery) |
|
Output current |
10A |
|
Features: |
Temperature control compensation charger |
|
Compatibility |
35AH,60AH 80AH lead acid battery |
|
Protection |
-Short circuit protection -Overvoltage protection -Overcurrent protection -Overheating protection -Reverse connection protection |
|
Apply to |
Children's toy cars, motorcycles, cars, etc. |
|
weight |
680g |
The Intelligent 12V 10A lead acid battery charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 100-240Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage: 14.7V Float charge 13.8V
C:Charging Mode Intelligent 12V 6A lead acid battery charger
3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension: Intellig
ent 12V 6A lead acid battery charger
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
