Quick Details
-
Brand Name:
-
SX
-
Model Number:
-
G14-102W
-
Product name:
-
102 channels power supply distro box
-
Brand name:
-
SX
-
Model number:
-
G14-102W
-
Power Input:
-
3 phase 5 wires 380V - 415V 400amp powerlock input
-
main breaker:
-
400A/3P main breaker
-
Display meter:
-
Digital voltage meters and ammeters
-
LED Indicator light:
-
Yes
-
CE certification:
-
CE certification
-
packing material:
-
cartons and flight case
-
Color:
-
black
Quick Details
-
Voltage:
-
380V - 415V
-
Current:
-
400a
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SX
-
Model Number:
-
G14-102W
-
Product name:
-
102 channels power supply distro box
-
Brand name:
-
SX
-
Model number:
-
G14-102W
-
Power Input:
-
3 phase 5 wires 380V - 415V 400amp powerlock input
-
main breaker:
-
400A/3P main breaker
-
Display meter:
-
Digital voltage meters and ammeters
-
LED Indicator light:
-
Yes
-
CE certification:
-
CE certification
-
packing material:
-
cartons and flight case
-
Color:
-
black

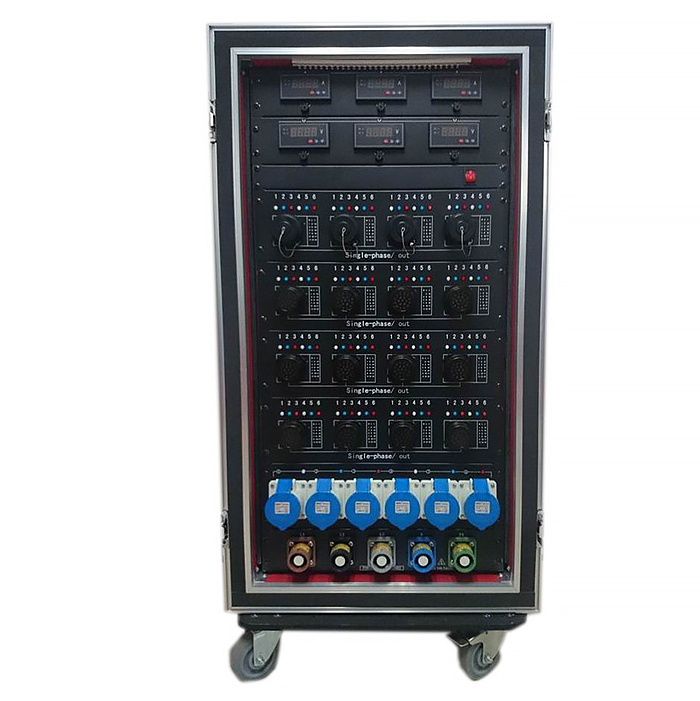

Power Supply Distro Box
This power supply distro box 102 channels 3 phase 380V 400 amp powerlock input, with
19pin socapex and 32A 3pin outputs, is very good for indoor and outdoor big live events,
can be used for Asia, Africa, European and Australian markets, to provide the stable
electrical supply for all stage equipments for performance.
19pin socapex and 32A 3pin outputs, is very good for indoor and outdoor big live events,
can be used for Asia, Africa, European and Australian markets, to provide the stable
electrical supply for all stage equipments for performance.
Main Advantages:
1.Simple and compact design, elegant looking
2.400 amp big power main breaker and each channels with one breaker ensure the safety of equipments
3.Schneider breakers with high quality
4.With LED indicator light for each channel of power distributions
5.Digital meters keep watching the changes of the voltage and current
6.Shockproof rack case packed
7.With CE certificate rated
2.400 amp big power main breaker and each channels with one breaker ensure the safety of equipments
3.Schneider breakers with high quality
4.With LED indicator light for each channel of power distributions
5.Digital meters keep watching the changes of the voltage and current
6.Shockproof rack case packed
7.With CE certificate rated
Product Technical Specification
Product name
|
102 channels power supply distro box
|
|
Brand name
|
SX
|
|
Model number
|
G14-102W
|
|
Power Input
|
3 phase 5 wires 380V - 415V 400amp powerlock input
|
|
Power Outputs
|
6 ways x 32A 3pin Weipu Ceeform sockets 230V(3kw/way)
16 x 19pin socapex outputs Kupo brand 230V(3kw/way) -- 96 ways |
|
Breaker Switches
|
|
|
main breaker
|
400A/3P main breaker Schneider brand
|
|
Output breakers
|
6 x 32A/1P breakers for 6 x 16A 3pin sockets outputs
96 x 20A/1P breakers for 16 x 19pin socapex outputs (96 ways) |
|
Display meter
|
Digital voltage meters and ammeters
|
|
LED Indicator light
|
Yes
|
|
Approval
|
|
|
CE certification
|
CE certification
|
|
Packing details
|
|
|
packing material
|
cartons and flight case
|
Production details
102 channels power supply distro box with socapex outputs and 400
amp main breaker
amp main breaker



Production Flow
Step 1: Wiring the connectors on the rack panels

Step 2: Installing the connector panels on the power racks
Step 3: Production finished and Testing the products before delivery
