Quick Details
-
Name:
-
telescopic WiFi Antennas telescopic flood lighting high mast
-
Extended length:
-
2-25m lighting high mast
-
Closed length:
-
1-4m (Bottom base included)
-
Wind load::
-
working rate:25m/s Max rate:35m/s
-
Application:
-
lightning, WiFi Antennas ,VHF / UHF Antennas,camera,
-
Material:
-
aluminum alloy, stainless steel, fiberglass
-
number of sections:
-
3-11 lighting high mast
-
Temperature::
-
working temp:-40--+50C Storage Temp:-55--+70C
-
usual payload:
-
30-200kgs
-
Rotation platform:
-
Diameter:100-180mm
Quick Details
-
Brand Name:
-
talents
-
Model Number:
-
TAL-P3-1.3-20
-
Place of Origin:
-
Tianjin, China
-
Name:
-
telescopic WiFi Antennas telescopic flood lighting high mast
-
Extended length:
-
2-25m lighting high mast
-
Closed length:
-
1-4m (Bottom base included)
-
Wind load::
-
working rate:25m/s Max rate:35m/s
-
Application:
-
lightning, WiFi Antennas ,VHF / UHF Antennas,camera,
-
Material:
-
aluminum alloy, stainless steel, fiberglass
-
number of sections:
-
3-11 lighting high mast
-
Temperature::
-
working temp:-40--+50C Storage Temp:-55--+70C
-
usual payload:
-
30-200kgs
-
Rotation platform:
-
Diameter:100-180mm

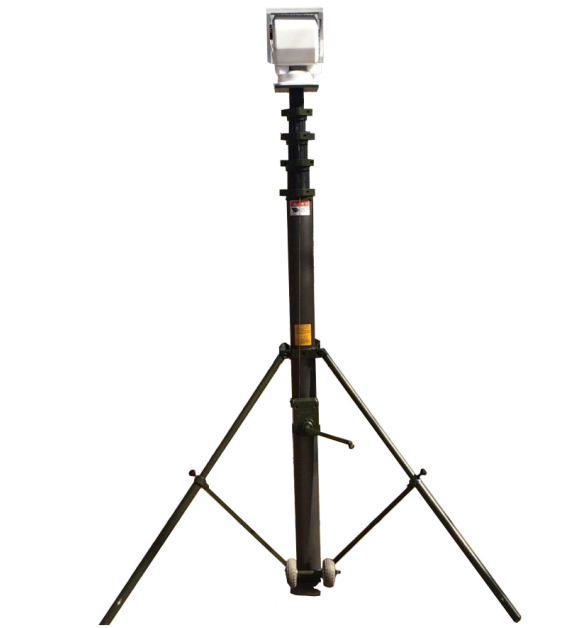

Weather Equipment telescopic WiFi Antennas telescopic solar light tower flood lighting high mast
Material:
Main Pole
:
aluminum alloy , stainless steel, fiberglass
Bottom base,rotation platform and tripod
:
iron steel
Technology: painting
Color of lighting high mast
We usually process three colors of Army green, the original color of aluminum, black, but any particular colour OEM is available, most of the customers prefer army green.
The whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.
The
lighting high mast
with energy saving and environmental protection, large play load, low noise, fast lifting, might be of your interest.Our product has the advantages of large play load, low noise, fast lifting, strong buffering & stable performance and the like. With high strength aluminum alloy, our products can easily meet the needs of different height and load in different places. It can be installed on the ground or on the vehicle to ensure the application effect. It can help lamplight, camera, Antenna, mobile and other equipment rise and drop to a predetermined height after its work. It also plays an important role in natural disasters, emergency rescue at night and lightning at the Golf course and large football field.
Actually, we, as the specialized golden supplier for telescopic mast since 1995, have many masts available: hand lifting, motorized lifting and pneumatic lifting with extended length from 2 meters to 45 meters, the largest play loads up to 300 kgs.
Notes:
(1).With high strength aluminum alloy, our products can easily meet the needs of different height and load in different places. When the mast is mounted on the ground, a tripod and pulling cord are useful to firm it.
(2).We will supply you with a top plate for free if you want to connect our mast with antenna or a transmitter. And you could give us the size and specifications of the hole to match it.
(3). With different materials and ways of manufacture, the prices are quite different. The hand lifting mast will be the cheapest one , and the motorized lifting mast wants a few more expensive. In addition to product type, we also need your requirements for the top bearing, height and other particulars. Our quotation depending on all your requirements of this mast.
(4)we will fix a small steel rope with rings between the tops of bottom section and the top section as a lock when the pole is retracted if you needed.
Specifications of lighting high mast:
Closed length:1-4.0m (Bottom base included)
Extended length: 2-45m (Bottom base included)
Max.payload: 300kgs
Lifting method: Hand lifting,Pneumatic, Motorized
|
Extended height
(m) |
Closed height
(m) |
Section number
|
Top diameter
(mm) |
Bottom diameter
(mm) |
Loading weight
(kg) |
|
4
|
1.47
|
3
|
30
|
50
|
1-15
|
|
5
|
1.20
|
5
|
30
|
80
|
1-15
|
|
6
|
1.50
|
5
|
30
|
70
|
1-15
|
|
6
|
1.30
|
6
|
50
|
160
|
1-60
|
|
6
|
1.70
|
5
|
60
|
130
|
1-50
|
|
8
|
1.65
|
7
|
30
|
90
|
1-15
|
|
9
|
1.80
|
7
|
30
|
90
|
1-15
|
|
9
|
1.80
|
7
|
40
|
105
|
1-30
|
|
10
|
2.10
|
6
|
30
|
80
|
1-10
|
|
10
|
1.95
|
7
|
30
|
90
|
1-15
|
|
10
|
1.95
|
7
|
40
|
105
|
1-30
|
|
10
|
1.95
|
7
|
50
|
130
|
1-60
|
|
12
|
2.10
|
8
|
30
|
105
|
1-15
|
|
12
|
2.10
|
8
|
40
|
130
|
1-30
|
|
15
|
2.40
|
8
|
30
|
105
|
1-15
|
|
15
|
2.40
|
8
|
40
|
130
|
1-30
|
|
18
|
2.45
|
9
|
30
|
130
|
1-10
|
|
18
|
3.00
|
8
|
50
|
150
|
1-30
|
|
20
|
2.90
|
9
|
30
|
130
|
1-10
|
