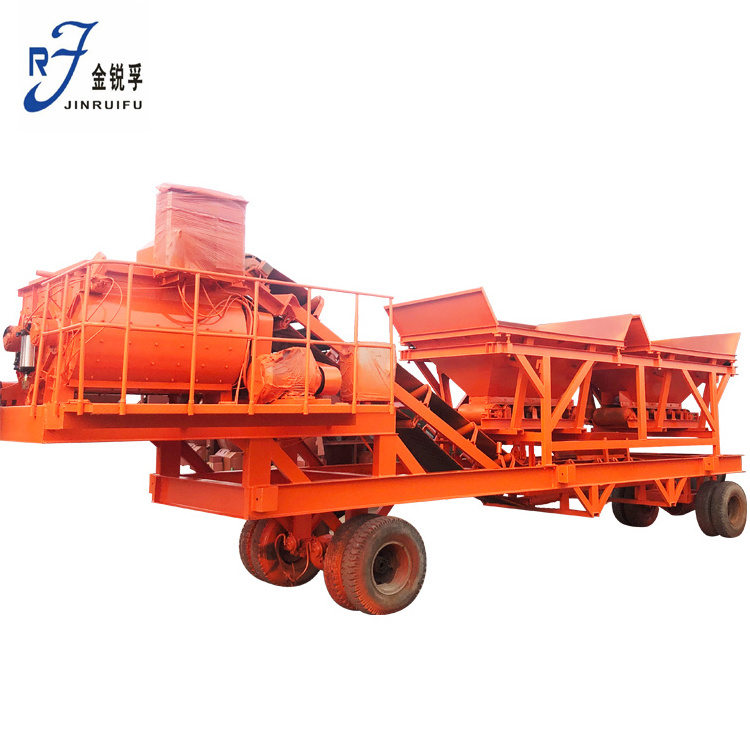

Factory price YHZS25 25m3/h mobile mini concrete batching plant for sale

Factory price YHZS25 25m3/h mobile mini concrete batching plant for sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $12500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 60kw

Dimension(L*W*H):: 15000x8000x12000mm

Weight:: 5000 kg

Concrete Mxer:: JS500

Mixing Volume:: 350l

Discharge Height:: 3800mm

Batching Machine:: PLD800

Capacity:: 25m3/h

Cement Weighing Range:: 600kg

Water Weighing Range:: 250kg

Price:: Factory Price

Delivery:: Qingdao Port

Keyword:: mini Concrete Batching Plant

Quick Details

Machine Type:: mini concrete batching plant

Place of Origin:: Shandong, China

Brand Name:: Jinruifu

Power:: 60kw

Dimension(L*W*H):: 15000x8000x12000mm

Weight:: 5000 kg

Concrete Mxer:: JS500

Mixing Volume:: 350l

Discharge Height:: 3800mm

Batching Machine:: PLD800

Capacity:: 25m3/h

Cement Weighing Range:: 600kg

Water Weighing Range:: 250kg

Price:: Factory Price

Delivery:: Qingdao Port

Keyword:: mini Concrete Batching Plant

Product Description

Achieve the integration of mixing ingredients, save the feeding time, mix ingredients quickly, reduce the middle drive process. Greatly shorten the work cycle and improve work efficiency, suitable for multi-aggregate work site, reduce procurement cost, save electricity by 30%.

PLD Series Batching Machine
Advantage:
1,used in concrete construction industry.
2,replace artificial platform scale or the volume measurement.
3,high measuring accuracy.
JS/ JZM Series Concrete Mixer
Advantage:
Thickening track : 16 # channel steel
Protection device: Travel witch
Wear resistant Steel wire: Alloy steel
Bigger hopper: 800L
Weighing system (Cement and Water)
Pneumatic discharge
Discharge gate with sealing rings
Pneumatic unloading & manual unloading
Air pump control
Electric pump with throttle valve
Large flow
Cleaning device
Spraying device

Model	YHZS25
Productivity(m3/h)	25
Main Mixer	JS/JZM500
Batching Machine	PL800
Mixing Volume(L)	500
Mixing motor( KW)	18.5
Lifting motor(KW)	5.5
Water pump motor( KW)	0.75
Discharge Height(m)	3.8
Mixing blades speed (r/min)	35
Max. aggregate size( mm)	60
Control Mode	Electric Control Box
Lining board	Manganese steel
Discharge way	Manual or pneumatic
Packing Size(mm)	110022002400
Packing Way	1Sets/40HQ
Overall weight (kg)	9000

Detailed Images

Concrete mixer

JS Series Mixer：

1.Thickening track : 18# channel steel 2.Protection device: Travel witch

3.Wear resistant Steel wire: Alloy
steel

4.Bigger hopper:800-2400L

5.Discharge gate with sealing rings 6.Pneumatic unloading & manual unloading 7.Air pump control
8.Electric pump with throttle valve 9.Cleaning device 10.Spraying device

PL1600 Batching Machine:

1.Automatic batching equipment matched with mixers. 2.3-6 kinds of materials(sand,stone,cement,etc.) batching process simultaneously. 3.Different models provided according to your requirements.

Discharge hopper :

Height:3900mm

Screw Conveyor

The screw conveyor use a planetary reducer. The length of screw conveyor can be adjusted according to actual situation.

Company Introduction

Shandong jinrui hevay industry machinery CO.,LTD was established in 2001, which is located in Anqiu,Shandong, China. It is only 160 kilometers way from Qingdao port, which is biggest prot in north of China.

We specialized in construction machinery,which is including concrete mixers(including JZ series counter- rotary with double cones, JS series compulsory mixer with double lying shafts, LSY cement spiral conveyor, cement silo, PLD concrete proportioning MC series and concrete plant ETC) .The concrete mixers can be widely used in all kind of prefabrications, roads, bridges, ports and civil constructions and so on. The can mix stable soil concrete, plastic concrete, fluidity concrete, light aggregate concrete and mortars.

Now all the constuction MC have passed state quality standard GB9142-2000 , and our company have passed international quality management ISO9001-2000.

We belive "customers foremost, credit first" and insist on providing satisfaction to the customers, we have created strong sales network all over the country and overseas covering east asia, southeast asia and africa.
We are the manufacture.
Near to Qingdao port.
OEM acceptable.
16 years of production experience and 6 years of exporting experience.
Competitive price with high quality
JINRUIFU is China top 10 famous brand
Main production:JZC series mixer, JS series mixer, concrete mixing plants and mobile concrete batching plant.
We have created strong sales network all over the country and overseas covering East Asia,South Asia and Africa.

Our Services & Strength

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Packing&Shipping

Size:	20000(L) * 2200 (W) * 2400(H)
Weight:	2.4 T
Packaging Details:	1Sets/40HQ2 and 20GP1

Project case

Our service

OEM Manufacturing welcome: Product, Package...
Sample order.
We will reply you for your inquiry in 24 hours.
After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test.
them, and give me a feedback. If you have any questions about the problem, contact with us, we will offer the solve way for you.

FAQ

Q: How about the quality of your products?
A: We are factory with more than 16 years of construction machinery manufacturing experience. All of our machines are manufactured strictly according to the national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q: How about the price?
A: We are manufactory, not dealer, so we can give you a lower price than those trade companies can.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and
thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
