Quick Details
-
Fork Length:
-
1070
-
Fork Width:
-
125
-
Overall Dimensions:
-
1070*125*45
-
Weight (KG):
-
4270 kg
-
Load Capacity:
-
3000kg
-
Load Center:
-
500mm
-
Max.Lifting height:
-
3000mm
-
Mast height,lowered:
-
2070mm
-
Max.fork lifting height(with backrest):
-
4262mm
-
Free lifting height:
-
160mm
-
Overhead guard height:
-
2090mm
-
Overall length(with fork):
-
3752mm
-
Overall length(without fork):
-
2682mm
-
Mast tilt,front/rear:
-
6/12
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
heli
-
Fork Length:
-
1070
-
Fork Width:
-
125
-
Overall Dimensions:
-
1070*125*45
-
Weight (KG):
-
4270 kg
-
Load Capacity:
-
3000kg
-
Load Center:
-
500mm
-
Max.Lifting height:
-
3000mm
-
Mast height,lowered:
-
2070mm
-
Max.fork lifting height(with backrest):
-
4262mm
-
Free lifting height:
-
160mm
-
Overhead guard height:
-
2090mm
-
Overall length(with fork):
-
3752mm
-
Overall length(without fork):
-
2682mm
-
Mast tilt,front/rear:
-
6/12
Contact Way
Bailey Chen-
Sales Manager
Tel:
+86-15161767769
Email:
bailey@richmchn.com
Product Overview

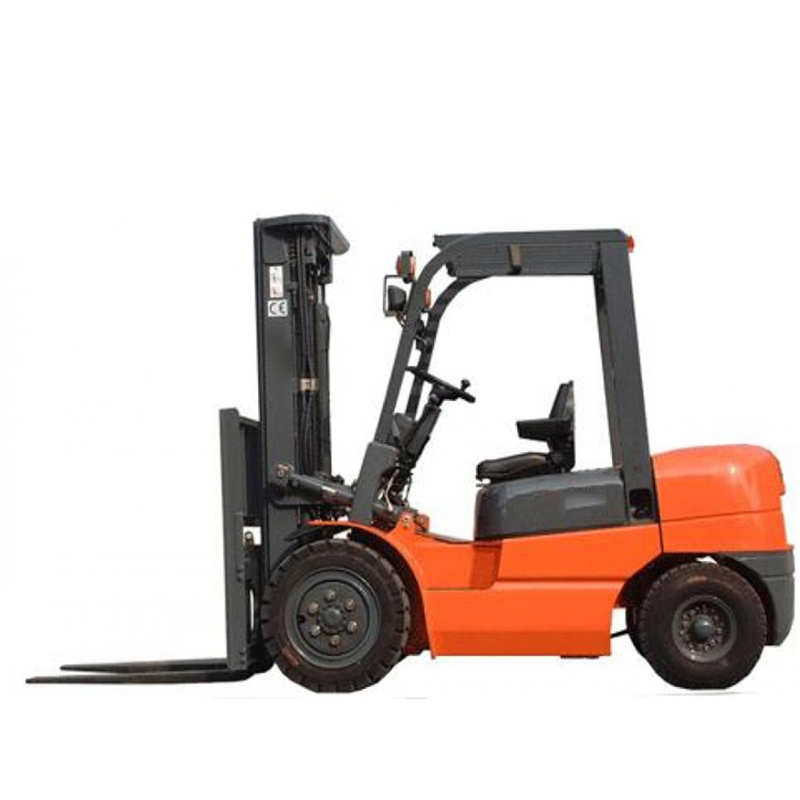

heli Lifting machinery 3ton forklift with Diesel engine CPCD30 in stock for sale
1. Environmental Friendly
The emission meets EC and EPA new regulation.
High efficiency hydraulic system to lower the fuel consumption.
Using environmental friendly material.
Damping device on the mast to reduce impact and vibration.
Sound insulating and absorbing device are used to reduce the noise.
2.Ergonomics design
Using power braking system to reduce footplate strength.
Control lever right located to effectively reduce drivers arm tiredness.
Dual combined switch lever as a car to enable easy operating.
Wide mast with good visibility.
Wide space for boarding and driving , increasing leg space.
Engine automatic monitor control, when the engine oil pressure is too low or water temperature is too high, the engine will be automatically shut off.
3. Safety performance
Enclose cabin is made of assembling steel plate, high strength overhead is designed to ensure the safety.
Parking brake with safety protection device, when parking brake is working, the forklift will not move even the direction lever is turned.
Safety device in mast hydraulic system prevents material falling down in case of hose broken.
High pressure hose is designed far away from the driver.
Safety wire harness, using waterproof plug.
Product Parameters
Model
|
unit
|
CPCD30/CP(Q)(Y)D30
|
CPCD35/CP(Q)(Y)D35
|
Power Unit
|
|
Diesel
|
Diesel
|
Rated Capacity
|
kg
|
3000
|
3500
|
Load Center
|
mm
|
500
|
500
|
Max.Lifting height
|
mm
|
3000
|
3000
|
Max.Fork lifting height
|
mm
|
4217
|
4217
|
(with backrest)
|
|
|
|
Overall length
|
mm
|
3800/2730
|
3845/2775
|
(with/without forks)
|
|
|
|
Overall width
|
mm
|
1225
|
1225
|
Overall height
|
mm
|
2170
|
2170
|
(overhead guard)
|
|
|
|
Wheel base
|
mm
|
1700
|
1700
|
Min.Turning radius
|
mm
|
2400/200
|
2440/200
|
(exterior/interior)
|
|
|
|
Mast tilting angle
|
deg
|
6/10
|
6/10
|
Max.Travelling speed (loaded/unloaded)
|
Km/h
|
19/21
|
19/21
|
Lifting speed (loaded/unloaded)
|
mm/s
|
500/590
|
460/490
|
Lowering speed (loaded/unloaded)
|
mm/s
|
420/400
|
420/400
|
Max.Drawbar speed (loaded/unloaded)
|
KN
|
19.6/16.3
|
20/16
|
Max.Gradability
|
%
|
22/23
|
19/23
|
(loaded/unloaded)
|
|
|
|
Total weight
|
kg
|
4400
|
5000
|
