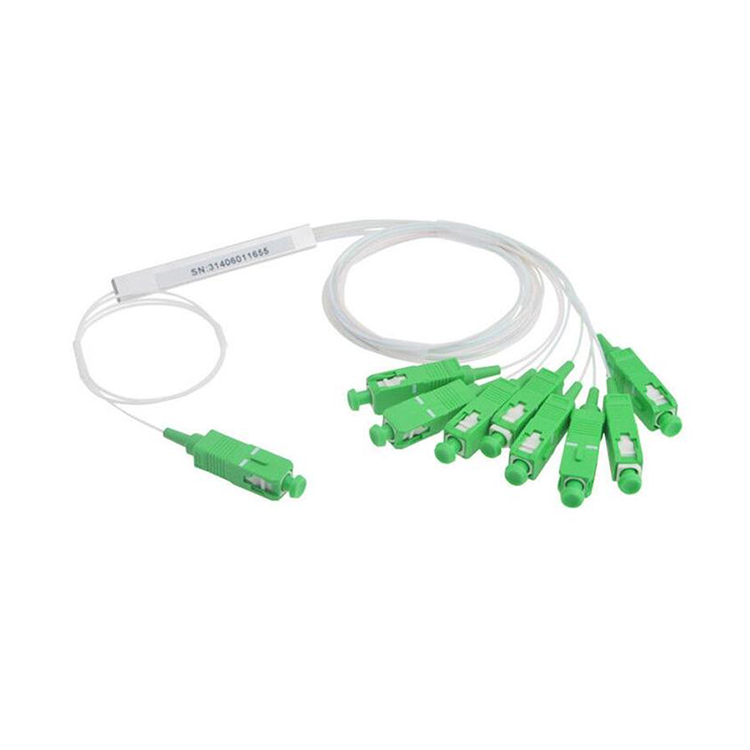

Quick Details
-
Cable:
-
0.9mm, 2.0mm, 3.0mm
-
Pigtail Length:
-
1m, 1.5m or customized
-
Wavelength:
-
1260-1650nm
-
Service:
-
OEM ODM
-
Operating Temperature:
-
-40~+85℃
-
Application:
-
FTTH FTTB FTTX PON CATV
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Connector Type:
-
SC/APC
-
Type:
-
Single Mode
-
Cable:
-
0.9mm, 2.0mm, 3.0mm
-
Pigtail Length:
-
1m, 1.5m or customized
-
Wavelength:
-
1260-1650nm
-
Service:
-
OEM ODM
-
Operating Temperature:
-
-40~+85℃
-
Application:
-
FTTH FTTB FTTX PON CATV
Features
Low insertion loss
Low PDL
High return loss
Uniform power splitting
Compact design
Wide operating wavelength
Wide operating temperature
Excellent environmental &mechanical stability
Qualified under telcordia GR-1221 and GR-1209
Applications
FTTx (FTTB, FTTH, FTTC)
Passive optical networks (PON)
Local area networks (LAN)
CATV systems
Test equipments
| Number of Channels | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 |
| Operating Wavelenth | 1260 to 1650 | |||||||||||
| P Level Insertion Loss | 4 | 7.4 | 10.5 | 13.7 | 17 | 20.3 | 4.4 | 7.6 | 10.8 | 14.1 | 17.4 | 20.7 |
| S Level Insertion Loss | 4.2 | 7.6 | 10.7 | 14 | 17.3 | 17.3 | 4.6 | 7.9 | 11.2 | 15 | 18.1 | 21.7 |
| Uniformity | 0.4 | 0.6 | 0.8 | 1 | 1.2 | 1.6 | 0.8 | 1 | 1.2 | 1.5 | 1.8 | 2 |
| PDL | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss | More than 55 | |||||||||||
| Directivity | More than 55 | |||||||||||
| Type of fiber | ITU G657A | |||||||||||
| Operating temperature | -40 to 85 | |||||||||||
| Pigtail length | 1m or 1.5m or customized | |||||||||||
