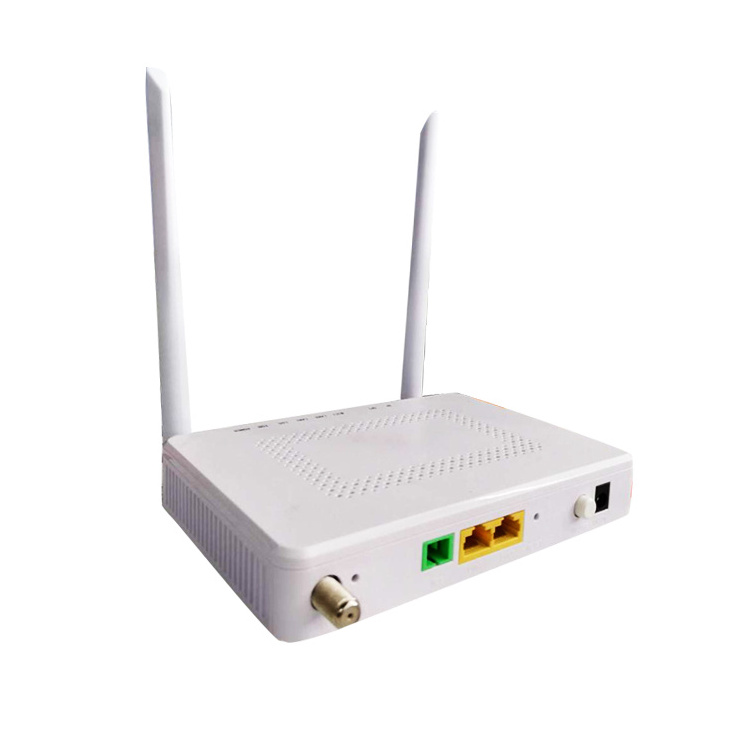

Runzhou Brand Custom RX5102WT Fast Speed Wifi Catv Onu Gepon Onu Epon Gpon Onu

FOB Reference Price: Get Latest Price

≥2 Pieces

US $20

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: RUNZHOU

Use:: FTTH FTTB FTTX Network

Warranty Time:: 1 year

Application:: FTTH FTTB FTTX Network

Product name:: XPON ONU

Service Function:: 64 full range VLAN ID

RF frequency:: 45~875MHz

Wavelength:: GPON T*1310nm, EPON R* 1490nm, CATV 1550nm

PON interface:: 1 GPON interface, SC single-mode/single-fiber, symmetric 1.25Gbps

Optical interface:: SC/UPC connector

DC power supply:: +12V, external AC-DC power adaptor

RX sensitivity:: < -25dBm @ 1490nm

CATV interface:: SCTE F type

Quick Details

Type:: ONU

Model Number:: RX5102WT

Place of Origin:: Zhejiang, China

Brand Name:: RUNZHOU

Use:: FTTH FTTB FTTX Network

Warranty Time:: 1 year

Application:: FTTH FTTB FTTX Network

Product name:: XPON ONU

Service Function:: 64 full range VLAN ID

RF frequency:: 45~875MHz

Wavelength:: GPON T*1310nm, EPON R* 1490nm, CATV 1550nm

PON interface:: 1 GPON interface, SC single-mode/single-fiber, symmetric 1.25Gbps

Optical interface:: SC/UPC connector

DC power supply:: +12V, external AC-DC power adaptor

RX sensitivity:: < -25dBm @ 1490nm

CATV interface:: SCTE F type

Product Description

Specification

Technical items	Description
PON interface	1 GPON interface, SC single-mode/single-fiber, symmetric 1.25Gbps
Wavelength	GPON Tx 1310nm, EPON Rx 1490nm, CATV 1550nm
Optical interface	SC/UPC connector
RX sensitivity	< -25dBm @ 1490nm
CATV interface	SCTE F type
WLAN	Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R One internal antenna and one external antenna
LAN interface	1x 10/100/1000Mbps + 1x 10/100Mbps auto adaptive Ethernet interfaces, Full Duplex / Half Duplex, AUTO-MDIX, RJ45 connectors
Indicators	11 indicators, for status of power supply, PON, LAN , POTS and CATV
DC power supply	+12V, external AC-DC power adaptor
Power consumption	≤12W
Operating condition	Operating temp: -5~+55℃ Operating humidity:10~90%(non-condensed)
Storing condition	Storing temp: -30~+60℃ Storing humidity:10~90%(non-condensed)
Net weight	0.45Kg

Functions:

1. Full speed non-blocking switching.
2. 2K MAC address table.
3. 64 full range VLAN ID.
4. Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.
5. Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.
6. Support auto polarity detection of Ethernet ports (AUTO MDIX).
7. Integrated IEEE802.1p QoS with four level priority queues.
8. Support IPv4 IGMP snooping and IPv6 MLD snooping.
9. Support bridge, router and bridge/router mixed mode.

Special Features:

1. Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology.
2. Full compliance to IEEE 802.3ah specification & OAM function.
3. Support 802.11n 2T2R speed up to 300Mbps.
4. Support No-auth, WEP, WPA-PSK and WPA2-PSK function with AES, TKIP encryption.
5. Support rich VLAN, DHCP Server and IGMP snooping multicast feature.
6. Advantage traffic management
7. Advanced Dynamic Bandwidth Allocation (DBA)
8. The WAN port supports bridge / router mode.
9. Advanced L2 features QinQ VLAN & QoS support.
10. Support NAT, Firewall function.
11. RF Video Output Bandwidth (MHz):45~1000, AGC Dynamic Range(dBm):-6~+2
12. Support Console/ Telnet/ NMS management interface for ease of operation and maintenance.
13. Support 2K MAC address table.
14. Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.Data Service
