Quick Details
-
Product name:
-
Hydraulic Dump Hoist cylinder
-
Application:
-
Tipping Trailer
-
Type:
-
Double Acting
-
Mounting Style:
-
Mounting brackets
-
Seal:
-
Hallite
-
Voltage:
-
12VDC 24VDC
-
Lift capacity:
-
3-10 tons
-
Package:
-
Plywood package
-
OEM:
-
Accept OEM
Quick Details
-
Weight (KG):
-
50
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
East-Ai
-
Product name:
-
Hydraulic Dump Hoist cylinder
-
Application:
-
Tipping Trailer
-
Type:
-
Double Acting
-
Mounting Style:
-
Mounting brackets
-
Seal:
-
Hallite
-
Voltage:
-
12VDC 24VDC
-
Lift capacity:
-
3-10 tons
-
Package:
-
Plywood package
-
OEM:
-
Accept OEM
DESCRIPTION

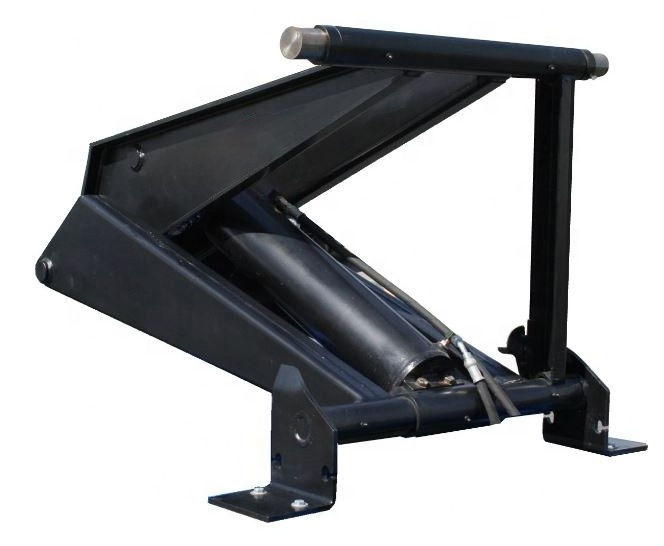

Hydraulic scissor hoist kit for Tipper trailer/Dump truck
Hydraulic scissor hoist kit
Application: Tipper trailer, dump truck etc.
Load capacity: 1-10 tons
Complete kit including 1 set hoist frame, 1 pc hydraulic
cylinder, 1 set hydraulic power unit, 2 pcs hoses and connectors.
cylinder, 1 set hydraulic power unit, 2 pcs hoses and connectors.
PS: We can also provide the Hinges, Safety Arm, Battery Cables, Rubber Battery Strap.
Hoist Mechanism,Dimensions & Mass(appros.)
|
L(mm)
|
W(mm)
|
H(mm)
|
X(mm)
|
MASS(kg)
|
|
1180
|
402
|
340
|
391
|
120
|
Hoist Cylinder and Pump Combination Specification (approx.)
|
Hoist Cylinder KRM143
|
(Kgf/cm2) |
6.4
|
Gear Pump KP-55
|
Standard Revolution
(rpm)
|
800
|
|
|
|
65
|
|
Discharge Volume(ml/rev.)
|
55
|
|
|
Inner Diameter (mm)
|
140
|
|
Discharge Volume(ml/rev.)
|
20.6
|
|
|
Stroke (mm)
|
520
|
|
Max. Testing Pressure (MPa)
(Kgf/cm2)
|
|
|
|
Min. Close distance (mm)
|
795
|
|
|
210
|
|
|
Piston Rod Diameter (mm)
|
70
|
|
Weight(kg)
|
13
|
|
|
Max. pressure (MPa)
(Kgf/cm2) |
14.7
|
|
|
|
|
|
|
150
|
|
|
|
Hoist Mounting and Maximum Lifting Capacity
|
Recommended Truck G.W.(kg)
|
Body Length(mm)
|
Rear Overhang(mm)
|
Distance between Load Center to Hinge(mm)
|
Distance between trunion to Hinge(mm)
|
Rated Lifting Capacity(kg)
|
Designed Max. lifting Capacity(kg)
(including load weight) |
|
6000-9000
|
3400
|
400
|
1300
|
1100
|
4000-5000
|
8500/60°
|
