Quick Details
-
Model Number:
-
GF-50, GF-100, GF-150, GF-200, GF-360, GF-480
-
Voltage:
-
380V-50Hz, or as per buyers
-
Dimension(L*W*H):
-
As per capacity
-
Weight:
-
1200Kg~2200Kg
-
Working Pressure:
-
/
-
Function:
-
Supplying Dry Air for Transformer Maintenance and Installation
-
Raw material:
-
Cabon Steel / stainess steel or as required
-
PLC:
-
Optional
-
Heating method:
-
Thermal Oil Furnace, electric, gas or as required
-
The base structure:
-
movable with idler wheel type; fixed installation type etc
-
Rack construction:
-
open type; Ceiling found type etc.
-
Color:
-
Gray or as per required
-
Pressure drop:
-
0.05MPa
-
Noise:
-
≤80dB(A)
-
Dew point:
-
-50 ~ -70 Celsius
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, Turkey, United Kingdom, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
CE, ISO
Quick Details
-
Applicable Industries:
-
Electricr Transformer Maintenance and Installation, Dry Air for Power Transformer, Dry Air Generator
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Yuneng
-
Model Number:
-
GF-50, GF-100, GF-150, GF-200, GF-360, GF-480
-
Voltage:
-
380V-50Hz, or as per buyers
-
Dimension(L*W*H):
-
As per capacity
-
Weight:
-
1200Kg~2200Kg
-
Working Pressure:
-
/
-
Function:
-
Supplying Dry Air for Transformer Maintenance and Installation
-
Raw material:
-
Cabon Steel / stainess steel or as required
-
PLC:
-
Optional
-
Heating method:
-
Thermal Oil Furnace, electric, gas or as required
-
The base structure:
-
movable with idler wheel type; fixed installation type etc
-
Rack construction:
-
open type; Ceiling found type etc.
-
Color:
-
Gray or as per required
-
Pressure drop:
-
0.05MPa
-
Noise:
-
≤80dB(A)
-
Dew point:
-
-50 ~ -70 Celsius
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, Turkey, United Kingdom, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
CE, ISO

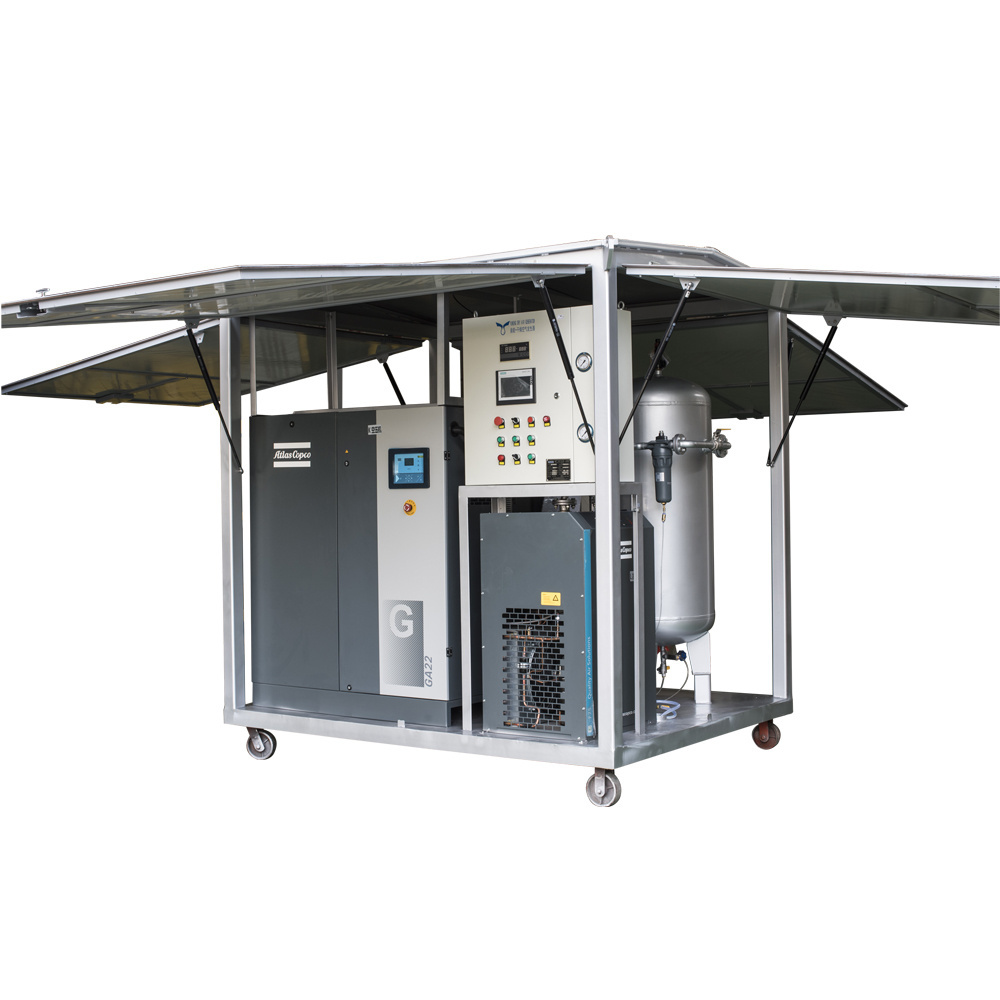

Mobile Dry Air Generator with Weather Proof Canopy Supplying Dry Air for Electric Transformer Maintenance and Installation
Movable Air Drying Machine Supplying Dry Air for Power Transformer Maintenance and Installation that keeps the power equipments' inner parts from moisture in the maintenance of the transformer, reactor and other large power equipments. It can ensure that the maintenance staff will not be short of oxygen when working inside of the equipments. It is more reliable enconomical convenient and safer than nitrogen. Therefore, it can shorten the maintenance period and improve the efficiency of the maintenance quality.
Other Products:
1. Ultra-High Voltage Transformer Oil Purifier
2. Double Stage Vacuum Transformer Oil Purifier
3. Single Stage Vacuum Transformer Oil Purifier
4. Dry Air Generator , SF6 Gas Recovery
8. Transformer Oil Regeneration System
9. Online Coalescing and Vacuum Turbine Oil Purifier
10. Oil Tester
| Item | Name of Parameter | Unit | Model | ||||||
|
GF-50
(50 m³/h) |
GF-100
(100 m³/h) |
GF-150
(150 m³/h) |
GF-200
(200 m³/h) |
GF-360
(360 m³/h) |
GF-480
(480 m³/h) |
||||
| Technical parameter of the equipment | Flow | m³/h | 50 | 100 | 150 | 200 | 360 | 480 | |
| Working pressure | MPa | 0.6~0.8 | |||||||
| Pressure drop | MPa | 0.05 | |||||||
| Noise | dB(A) | ≤80 | |||||||
| Working power | (380V-50Hz) 3Phase 4 Wires, or as per buyer's option | ||||||||
| Total electric power | KW | 17 | 17 | 22 | 25 | 48 | 58 | ||
| Size | Length | cm | 230 | 230 | 230 | 230 | 320 | 320 | |
| Width | cm | 170 | 170 | 170 | 170 | 225 | 225 | ||
| Height | cm | 235 | 235 | 235 | 235 | 240 | 240 | ||
| Outlet pipe | DN | 40/50 | 40/50 | 40/50 | 40/50 | 40/50 | 40/50 | ||
| Weight | Kg | 1200 | 1450 | 1600 | 1600 | 1900 | 2200 | ||
| Air treatment index | Air outlet pressure | MPa | 0.02~0.04 | ||||||
| Dew point | ℃ | -50 ~ -70 | |||||||
| Impurity content | μm | 0.01 | |||||||
| Oil content in air outlet | PPM | 0.01 | |||||||
